Side 1/10

5/15

User Instructions

specications, diagrams, images, and instructions herein are

subject to change without notice. ADJ Products, LLC logo and

identifying product names and numbers herein are trademarks

of ADJ Products, LLC. Copyright protection claimed includes all

forms and matters of copyrightable materials and information

now allowed by statutory or judicial law or hereinafter granted.

Product names used in this document may be trademarks or

registered trademarks of their respective companies and are

hereby acknowledged. All non-ADJ Products, LLC brands and

product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby dis-

claim any and all liabilities for property, equipment, building,

and electrical damages, injuries to any persons, and direct or

indirect economic loss associated with the use or reliance of

any information contained within this document, and/or as a

result of the improper, unsafe, unsucient and negligent as-

sembly, installation, rigging, and operation of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

RGBW4C IR

• 9 Static Colors

• RGBW Faders To Create Desired Color

• 9 Chases

• Auto, Program, RGBW, Chase, and Sound Active Modes

• Adjustable Program and Fade Speed

• Adjustable Sound Sensitivity

• Strobing

• Blackout

• ADJ LED RC2 Compatible (Sold Separately)

RGBW4C IR Features

RGBW4C IR Product Registration

The RGBW4C IR carries a 1 year (365 days) limited warranty. Please

fill out the enclosed warranty card to validate your purchase and war-

ranty. You may also register your product online at www. americandj.

com. All returned service items whether under warranty or not, must

be freight pre-paid and accompany a return authorization (R.A.) num-

ber. If the unit is under warranty you must provide a copy of your proof

of purchase invoice. Please contact ADJ customer support for a R.A.

number.

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

RGBW4C IR General Instructions

ADJ Products, LLC www.adj.com - RGBW4C IR Page 3

Unpacking: Thank you for purchasing the RGBW4C IR by ADJ Prod-

ucts, LLC. Every RGBW4C IR has been thoroughly tested and has

been shipped in perfect operating condition. Carefully check the ship-

ping carton for damage that may have occurred during shipping. If the

carton appears to be damaged, carefully inspect your xture for any

damage and be sure all equipment necessary to operate the unit has

arrived intact. In the event damage has been found or parts are miss-

ing, please contact our toll free customer support number for further

instructions. Please do not return this unit to your dealer without con-

tacting customer support rst.

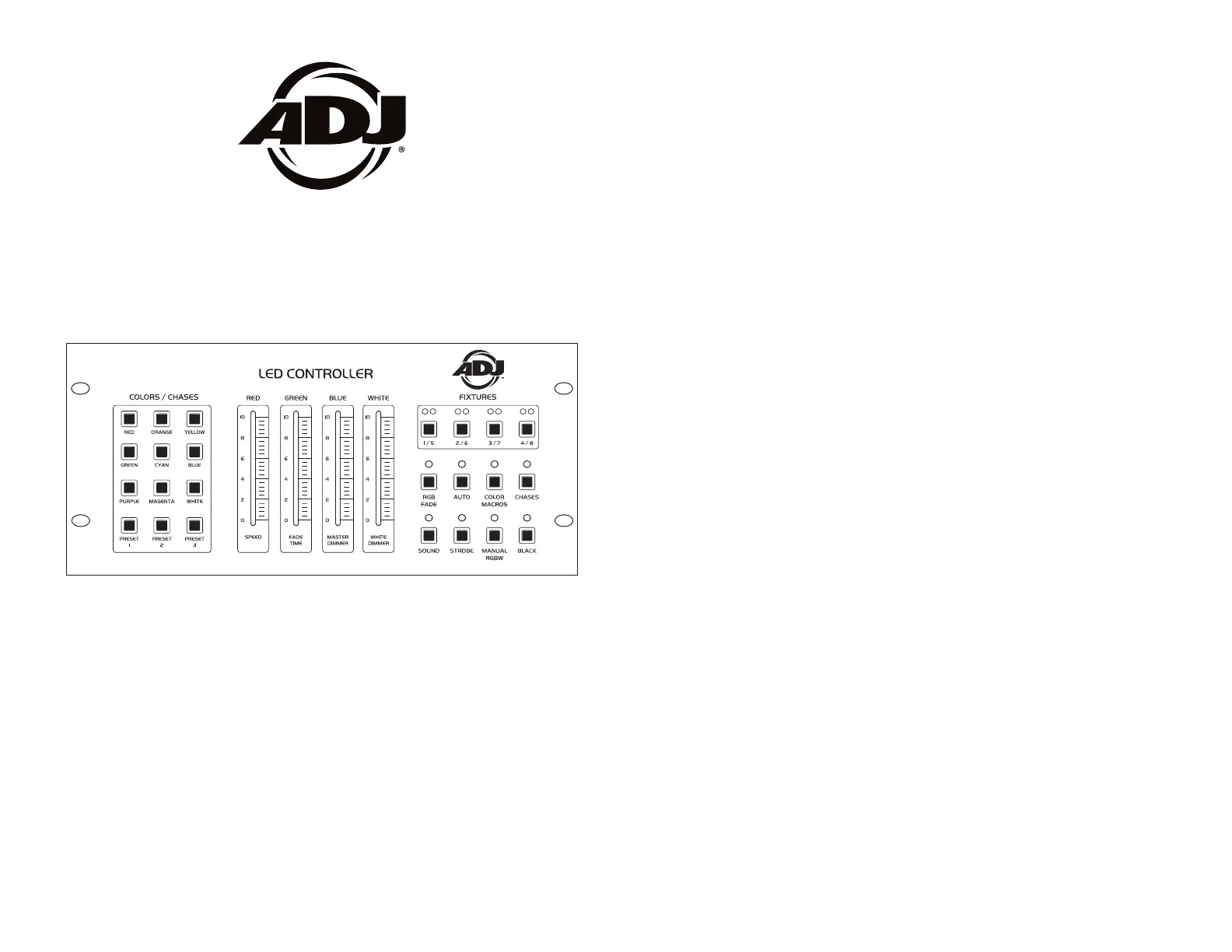

Introduction: The RGBW4C IR is a 32-channel RGB, RGBW or RGBA

LED controller. Up to 8 LED fixtures or fixture groups can indepen-

dently be controlled via four fixture buttons. The units control panel

includes; 9 “Static Color/Chase” buttons, which contain pre-pro-

grammed colors and chase programs, 3 programmable color preset

buttons, 4 multi function faders that control RGBW intensities, as well

as program speed, fade time, and master dimmer. There are 8 but-

tons used to select the operation mode, including RGB Fade, Auto

Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW and

Blackout modes. The RGBW4C IR is one of the simplest and most ver-

satile LED controllers available today. It is ideal for D.J.’s, nightclubs,

lounges, bars, and anyone that wants easy control of LED Par’s, Bar’s,

Flood’s, or Panel’s.

Customer Support: ADJ Products, LLC provides a toll free customer

support line, to provide help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.adj.com for any comments or sugges-

tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.

Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

To purchase parts online visit http://parts.americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

RGBW4C IR General Information

ADJ Products, LLC www.adj.com - RGBW4C IR Page 2

ADJ Products, LLC www.adj.com - RGBW4C IR Page 4 ADJ Products, LLC www.adj.com - RGBW4C IR Page 5

RGBW4C IR DMX Set Up

Power Supply: Before plugging your unit in, be sure the source volt-

age in your area matches the required voltage for your ADJ RGBW4C

IR. The ADJ RGBW4C IR is 120v only. Only use the included power

supply to power RGBW4C IR.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used by most lighting and controller manufactures as a form of

communication between intelligent fixtures and controllers. A DMX

controller sends DMX data instructions from the controller to the fix-

ture. DMX data is sent as serial data that travels from fixture to fixture

via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX

fixtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

dierent manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. Therefore, the first fixture controlled by

the controller could be the last fixture in the chain. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA

assigned to address 1 to that unit, no matter where it is located in the

DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave

Operation): Your DMX controller require a standard 3-pin XLR connec-

tor for data input and data output (Figure 1). We recommend Accu-Cable

DMX cables. If you are making your own cables, be

sure to use standard 110-120 Ohm shielded cable

(This cable may be purchased at almost all pro

lighting stores). Your cables should be made with

a male and female XLR connector on either end of

the cable. Also remember that DMX cable must be

daisy chained and cannot be split.

Figure 1

RGBW4C IR DMX Set Up

Notice: Be sure to follow gures two and three when making your own

cables. Do not use the ground lug on the XLR connector. Do not con-

nect the cable’s shield conductor to the ground lug or allow the shield

conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 2

Figure 3

1 Ground 1 Ground

XLR Male Socket XLR Pin Conguration

3 Hot

2 Cold 2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

Termination educes signalr errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

Figure 4
