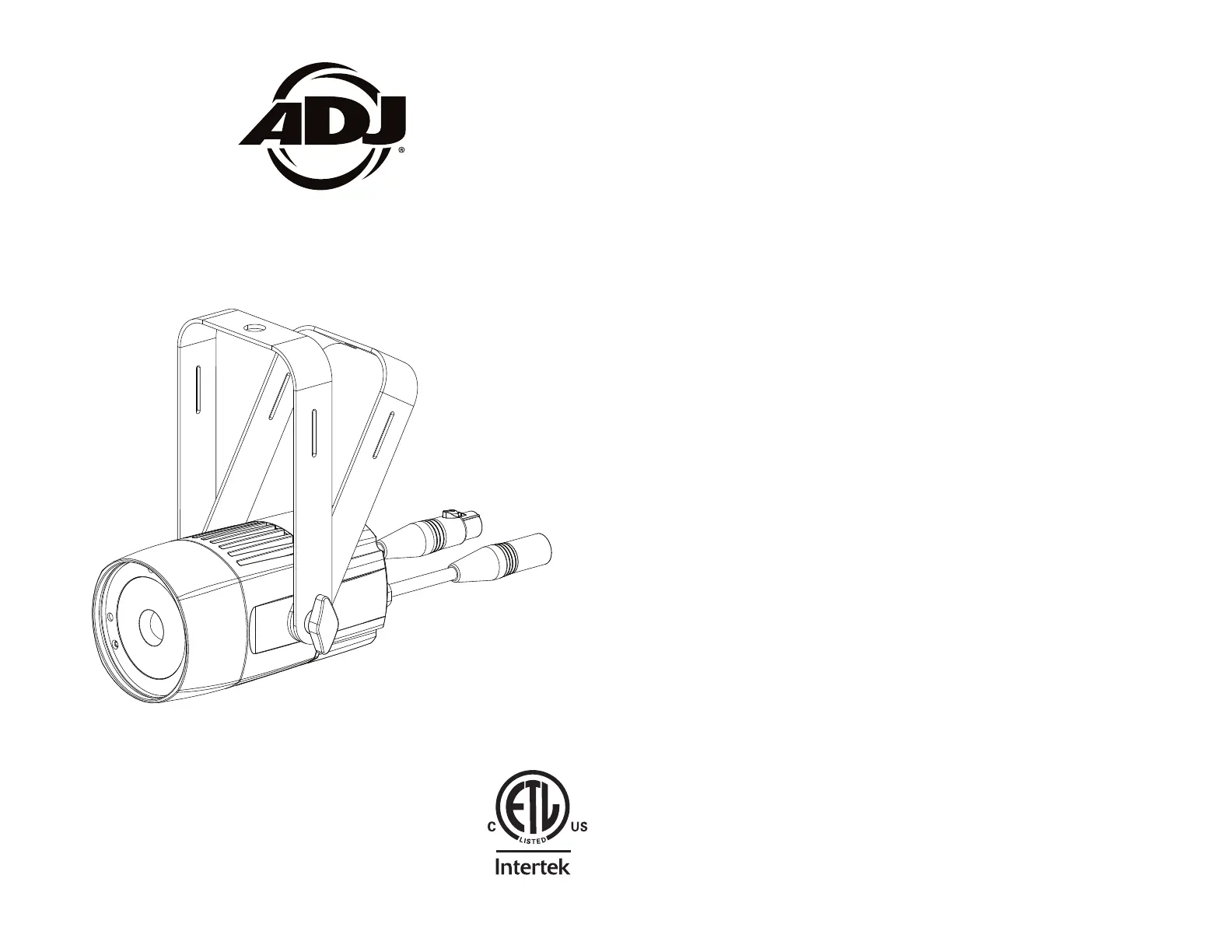

User Instructions
09/20
©2017 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent as-
sembly, installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
SABER SPOT RGBW
4 0 1 0 7 6 5

ADJ Products, LLC - www.adj.com - Saber Spot RGBW Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Saber Spot RGBW Instruction Manual Page 2
• DMX-512 Protocol Compatible (12 DMX Channel Modes:
3/4/4/5/6/6/7/8/8/9/11/12
• 3 Operating Modes - Show Mode, RGBW Dimmer Mode & DMX
Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Digital Display for Address and Function Setting
• UC IR Compatible (Not Included) & Airstream App Compatible
• Power Cord Daisy Chainable (See page 34)
Saber Spot RGBW Features
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting dam-
ages caused by the non-observance of this manual or any unauthor-
ized modication to this unit.
Saber Spot RGBW Handling Precautions
Saber Spot RGBW Warranty Registration
The Saber Spot RGBW 2 year (730 days) limited warranty. carries a
Please fill out the enclosed warranty card to validate your purchase
and warranty. You may also register your product online at www. adj-
products.com. All returned service items whether under warranty or
not, must be freight pre-paid and accompany a return authorization
(R.A.) umber. If the unit is under warranty you must provide an copy
of your proof of purchase invoice. Please contact ADJ Products, LLC
customer support for a R.A. number.
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Saber Spot RGBW General Instructions Saber Spot RGBW General Information
Unpacking: Thank you for purchasing the Saber Spot RGBW by
ADJ Products, LLC. Every Saber Spot RGBW has been thoroughly
tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your
xture for any damage and be sure all equipment necessary to oper-
ate the unit has arrived intact. In the event damage has been found
or parts are missing, please contact our toll free customer support
number for further instructions. Please do not return this unit to your
dealer without contacting customer support rst.
Introduction: The Saber Spot RGBW is a DMX intelligent LED fix-
ture. The Saber Spot RGBW can operate as a fixture or stand alone
in a Primary/Secondary set up The Saber Spot RGBW has three .
operating modes; RGBW dimmer mode, show mode, & DMX
controlled fixture is suitable for theaters, studios, retail stores, . This
and other similar locations. For best results use fog or special effects
smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!

For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 33 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits
a marked change in performance.
Saber Spot RGBW Safety Precautions
ADJ Products, LLC - www.adj.com - Saber Spot RGBW Instruction Manual Page 5ADJ Products, LLC - www.adj.com - Saber Spot RGBW Instruction Manual Page 4
Power Supply: The ADJ Saber Spot RGBW contains a automatic
voltage switch, which will auto sense the voltage when it is plugged
into the power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the D A “IN” and D A “OUT” XLR terminals located on all DMX AT AT
fixtures (most controllers only have a D A “OUT” terminal). AT
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controlle r, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements For DMX : The Saber Spot
RGBW can be controlled via DMX-512 protocol. The Saber Spot
RGBW has 12 DMX channel modes. The
DMX address is set electronically using the con-
trols on the rear panel of the unit. Your unit and
your DMX controller require a approved DMX-512
110 Ohm Data cable for data input and data output
(Figure 1). We recommend Accu-Cable DMX cables.
If you are making your own cables, be sure to use
standard 110-120 Ohm shielded cable (This cable
may be purchased at almost all professional sound
and lighting stores). Your cables should be made
Saber Spot RGBW DMX Set Up
Figure 1
