AXAMP-FD1
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 12/20/24 INSTAXAMP-FD1
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Adding Amp/Amps to a Factory System 3 .............
Troubleshooting: LED Feedback 4 ...........................
Amplifier Integration Interface
Fits Ford Select Models
2006-2014
Designed for both amplified and non-amplified models
Provides 6 channels of 5-volt RMS audio
Channels 5 & 6 are non-fading full range output
Includes plug-n-play harnessing
Simple behind the radio installation
Dual colored LED feedback
Input power handling 50 Watts per channel
Amp on turn-on output is rated at 250mA
SPDIF out is 2 channel (Fronts)

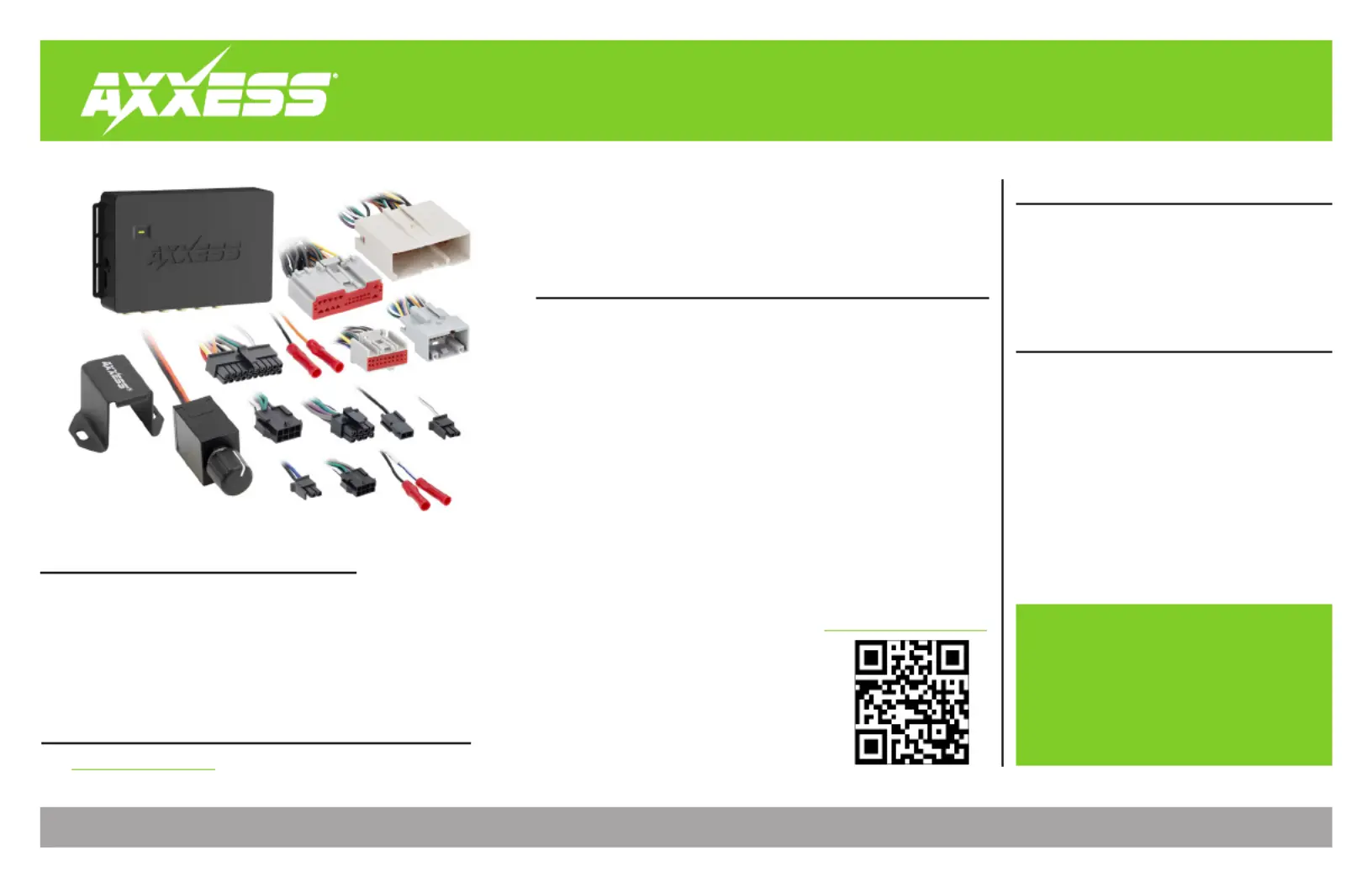

• AXAMP-FD1 Amplifier integration interface
• AXAMP-FD1 interface harness
• AXAMP-FD1 vehicle T-harness
• Bass knob
APPLICATIONS
Visit for current application list
Axxessinterfaces.com
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter
your Year, Make, Model vehicle into the
vehicle fit guide and look for the Dash Kit
Installation Instructions.
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip ties
• Multimeter
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-
amplified (Refer to Page 3)
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether amplified*
or non-amplified. (Refer to )Page 3
* For amplified models the amp must be bypassed/unplugged.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio*, then unplug all connectors.
2. AXAMP-FD1 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXAMP-FD1 vehicle T-harness AXAMP-FD1 interface Plug the to the .
4. AXAMP-FD1 interface harness AXAMP-FD1 interface Plug the to the .
5. Connect the amp turn-on wire.
6. Adjust your aftermarket amplifier to a desired listening level.
* Refer to for dash disassembly. If Metra makes a dash kit for the
metraonline.com
vehicle, disassembly will be within those instructions.
INSTALLATION OPTIONS INSTALLATION
3
REV. 12/20/24 INSTAXAMP-FD1
A
2-Pin
Connect if 2 Pin Amplified
Factory Radio Harness
LD-BASSKNOB
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
24-Pin
16-Pin
Factory Radio Harness
Interface
R
Factory Radio
*BACK*
LD-PAW-FD1
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
2-Pin
RCA Jacks
(sold separately)
Not Used
If connecting multiple amps, Metra recommends incorporating
an ( ). Metra SPDT Relay part #: SPDT Relay not included E-123
SPDT Relay
If system is connect to non-amplified, A .B
Otherwise, connectersdisreguard
.
A, Band C
24-Pin 16-Pin
8-Pin
Blue/White - Amp Turn-On Wire
FL
FR
RR
RL
LD-PAW-EXT
1 of 2
LD-PAW-EXT
2 of 2
B
C

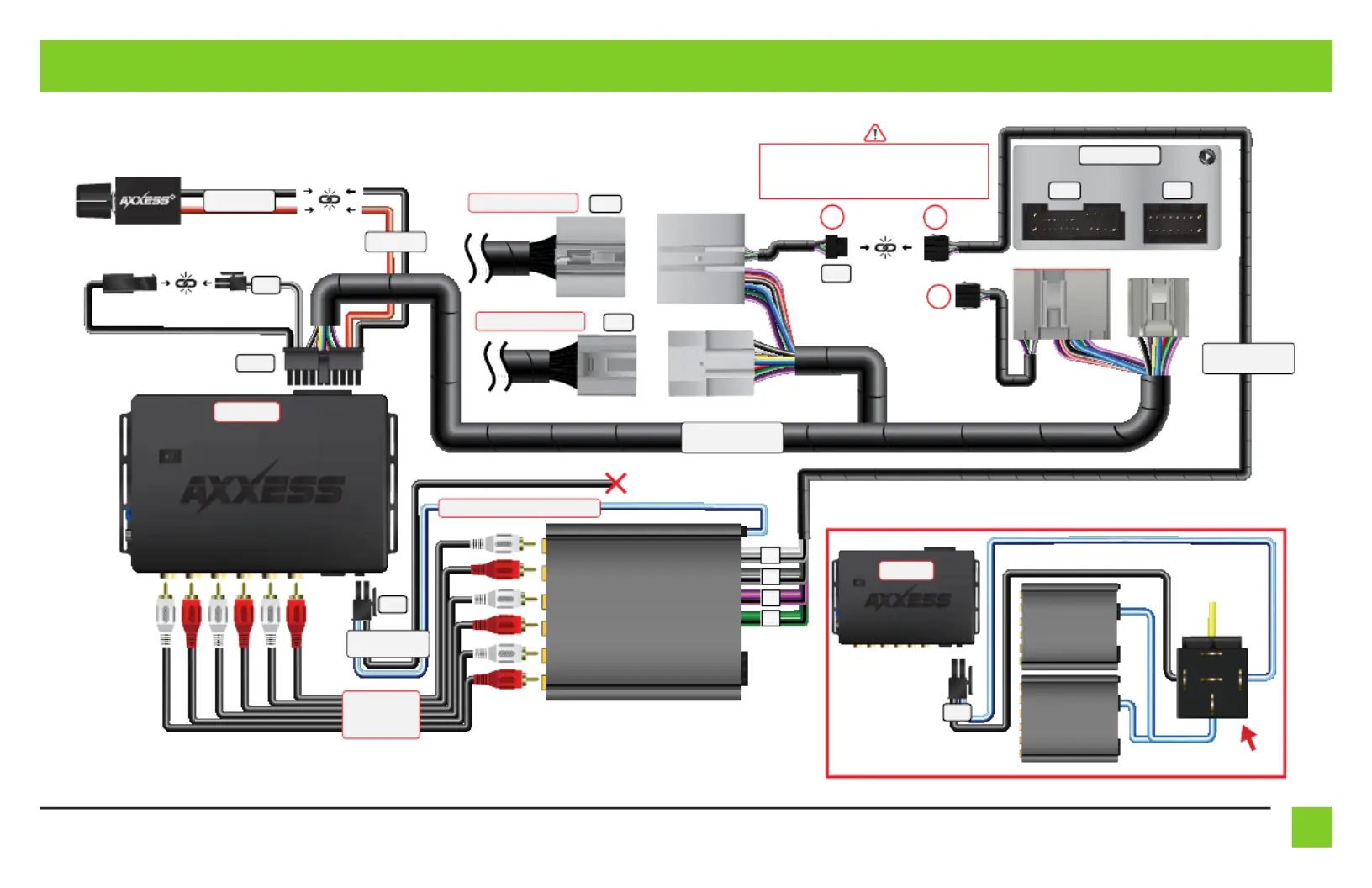

ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM
