User Manual
ADDRESSABLE REPEATER
BP-FD-ACPREP
------------Please read this operation manual carefully before installing and using the product.-----------

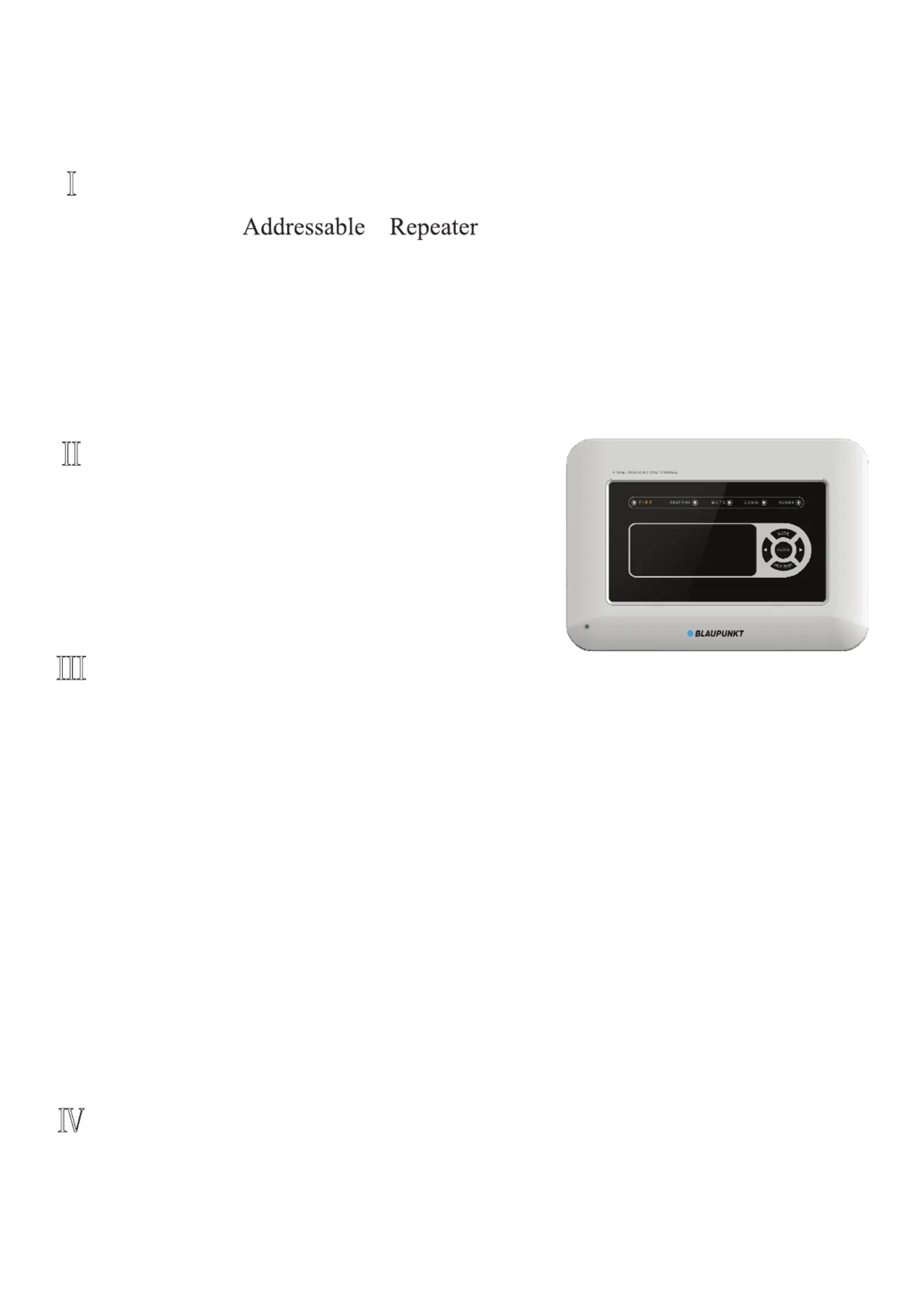

. Introduction
hereinafter referred to as Fire
Indicating Panel is a microprocessor-controlled fire indicating panel, which is
developed and produced by Asenware. The fire indicating panel is connected
with fire alarm control panel through RS485 bus line. Each floor can be
installed with a fire indicating panel , and when a detector or module triggers the
alarm, the fire indicating panel will emit a sound and light alarm, mea ile nwh
the relevant fire alarm information will be displayed on the screen.
. Features
Beautiful and elegant appearance
Easy to operate, easy to install
With a stable and reliable communication
of RS485 bus , and the maximum length of
the bus is over 1,000 meters
. Technical Parameters
Voltage %DC 24V±20
Current monitor state 32mA alarm state 66mA
St dard GB 17429-2011 Fire Indicating Panelan : 《
Capacity single fire indicating panel can display up to 99 pieces of
information
Wiring system: five-wire system, power cord (+24V, GND), 485 bus (A,
B), PE line( ).
Operating environment
indoor
temperature -10 0 (14 ~ 122 )+5
relative humidity 95% RH (40 non-condensing) , ;
Dimensions 210.0mm×150.0mm×33.5mm
Weight 0.5KG
. Appearance and Dimensions

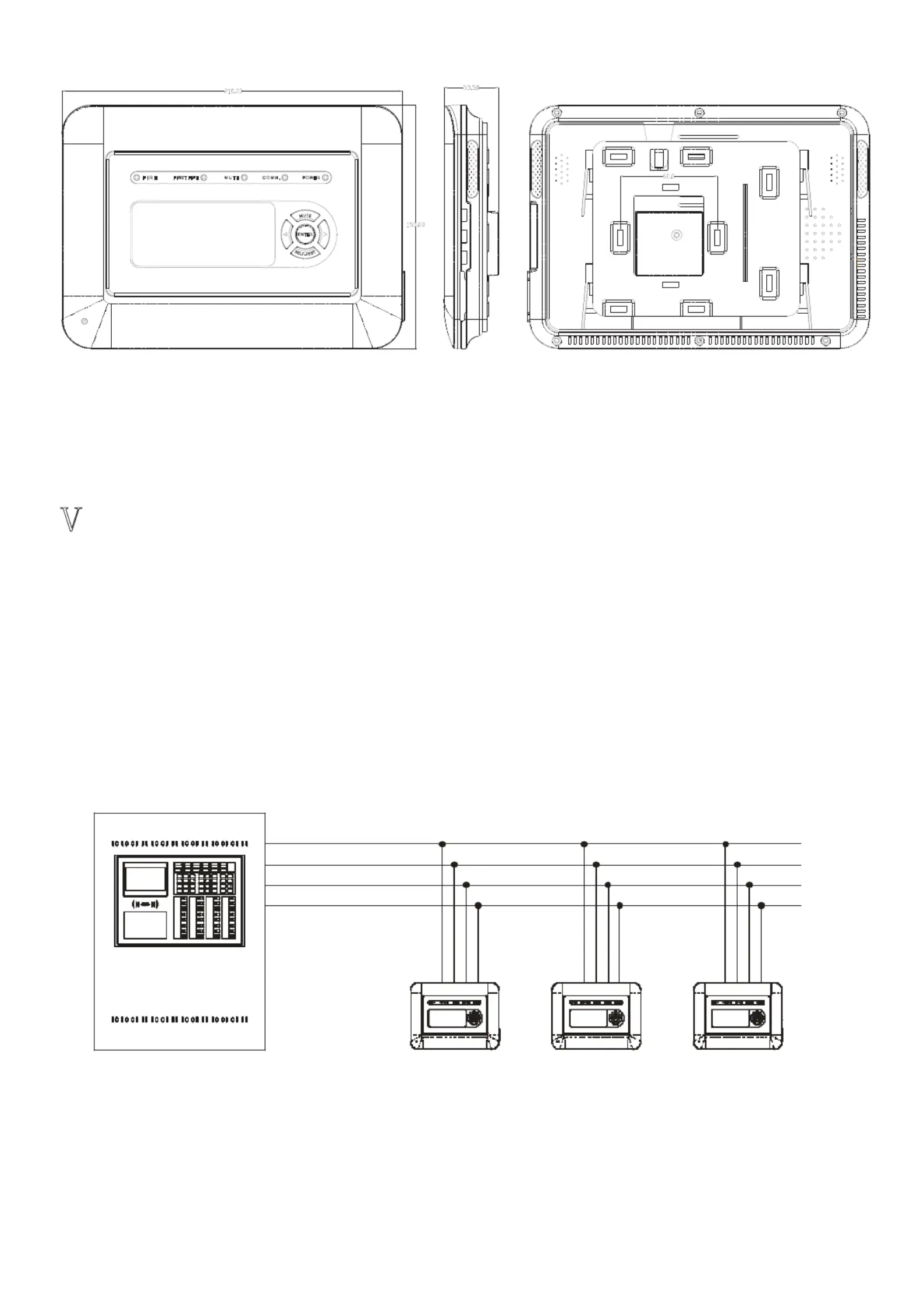

The Figure 1 below illustrates overall dimensions of the panel.
BP-FD-ACPREP
Figure 1 Dimensions
. Product Usage
1. Terminal description
+24V positive power input
GND negative power input
A signal terminal 485A
B signal terminal 485B
PE
2. Wiring diagram
+24V
GND
A
B
BP-FD-ACPREP BP-FD-ACPREP BP-FD-ACPREP
Figure 2 Wiring Diagram
BP-FD-ACP300-1L
