Side 1/6
Specications are subject to change.
© Copyright 2023, Bogen Communications LLC
740-00196B 230630

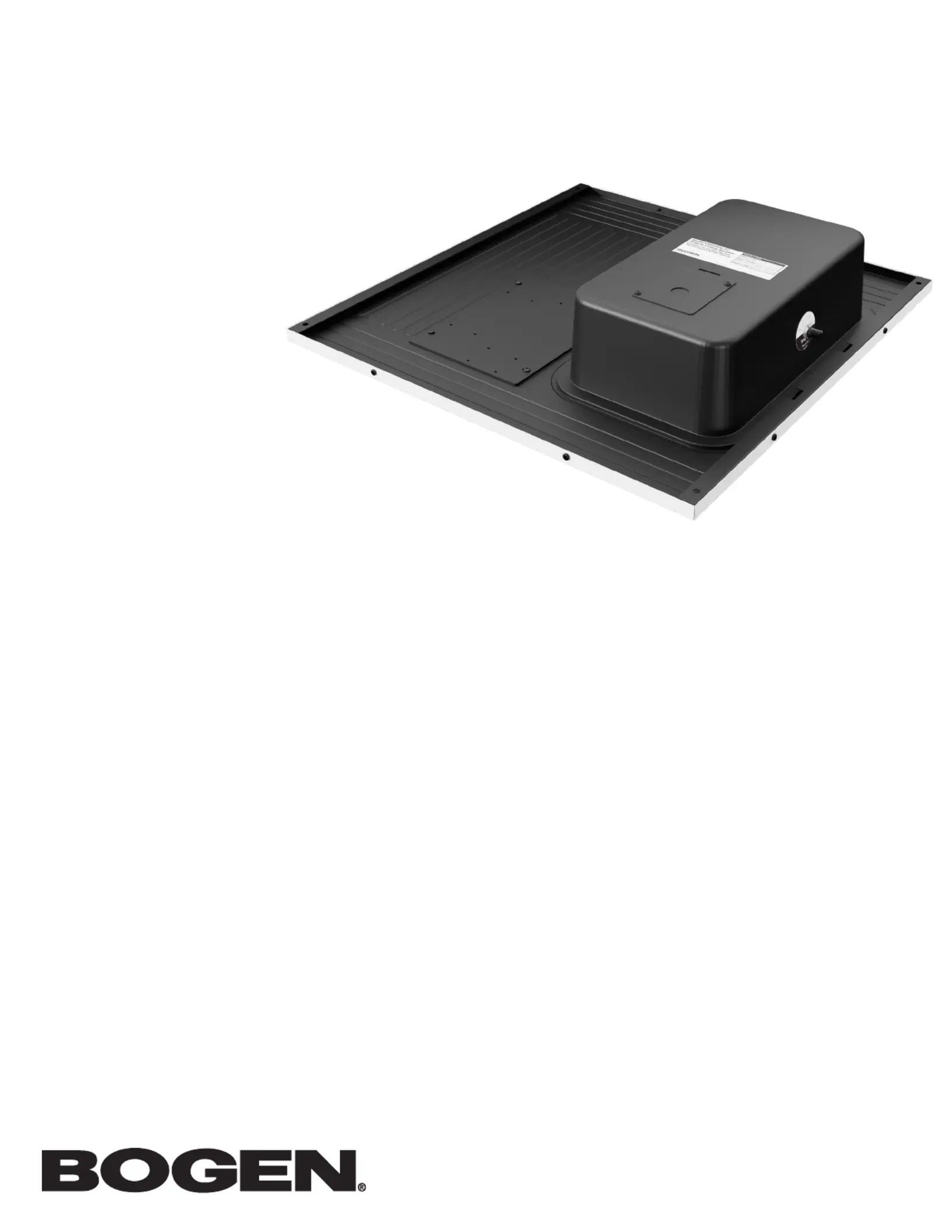

CSD2X2U-V2
70V, 25V, and 8Ω Speaker System
Installation and Use Guide
2
The CSD2X2U-V2 ceiling speaker has an 8″ driver and a tap selector that allows it to be run as a ¼W to 4W speaker
at 25V or 70V. It also includes a wire that bypasses the transformer and allows the speaker to operate at 8Ω. The
V2 version of the speaker includes a unique mounting plate to greatly expand its capabilities by allowing several of
Bogen’s Nyquist products to be mounted to the speaker.
Mounting Plate
The mounting plate allows for the addition of several of Bogen’s Nyquist products, including the NQ-GA10P, NQ-
GA10PV, NQ-GA20P2, NQ-GA40P3, and the NQ-GAXMR1. Through this product integration, the CSD2X2U-V2 can
operate as a Nyquist PoE-enabled active loudspeaker system as well as a VoIP intercom station.

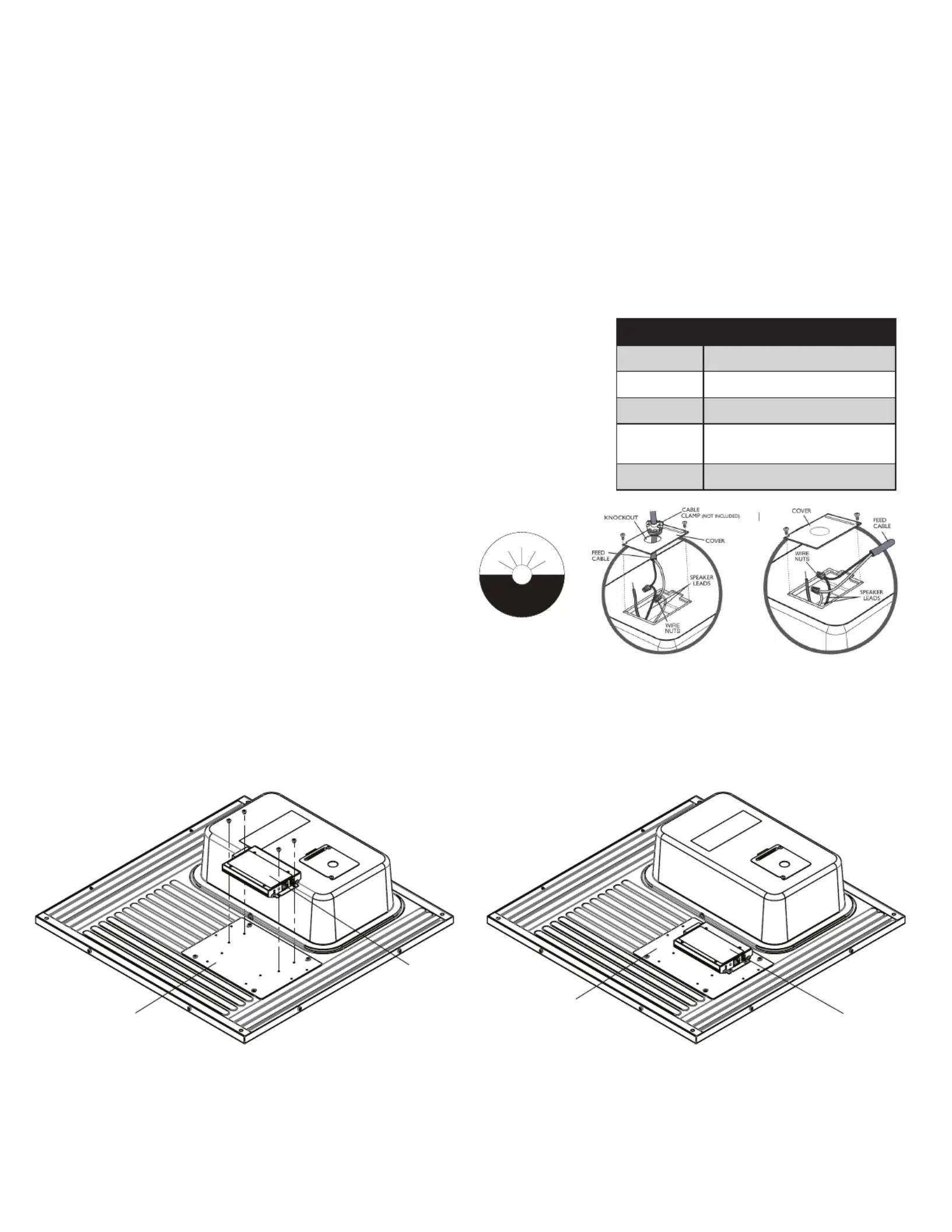

Passive Speaker Conguration
Electrical Connection
1. Remove cover, install cable clamp (if desired), and feed intercon-
necting cable into the electrical box (see Figure 1).
2. See table on the right to select speaker leads for desired system
type.
3. Cut bare wire tip off of unused speaker leads. Secure all mechanical
connections and reinstall the cover.
4. Set tap selector switch to proper tap setting.
Note: All wiring must comply with NFPA 70.
Nyquist PoE Amplier and Speaker Conguration
Necessary components: NQ-GA10P or NQ-GA10PV.
Figure 2 shows the positioning for the mounting of the VoIP Intercom Module (NQ-GA10P) onto the speaker’s mount-
ing plate. For a closer look at the mounting plate, refer to Figure 3.
Figure 2: Mounting Intercom Module (NQ-GA10P shown)
V2 MOUNTING PLATE
NQ-GA10P
V2 MOUNTING PLATE
NQ-GA10P
COLOR LEAD
RED 70V
YELLOW 25V
BLUE 8Ω
WHITE BLUEConnect to for 70V and
25V; disconnect for 8Ω Input
BLACK COM
OR
Figure 1: Electrical connections.
.25
.5
1
2
4
5
3
-
5
9
7
4
-
0
3
C
2
5
V
O
R
7
0
V
WATTS
3

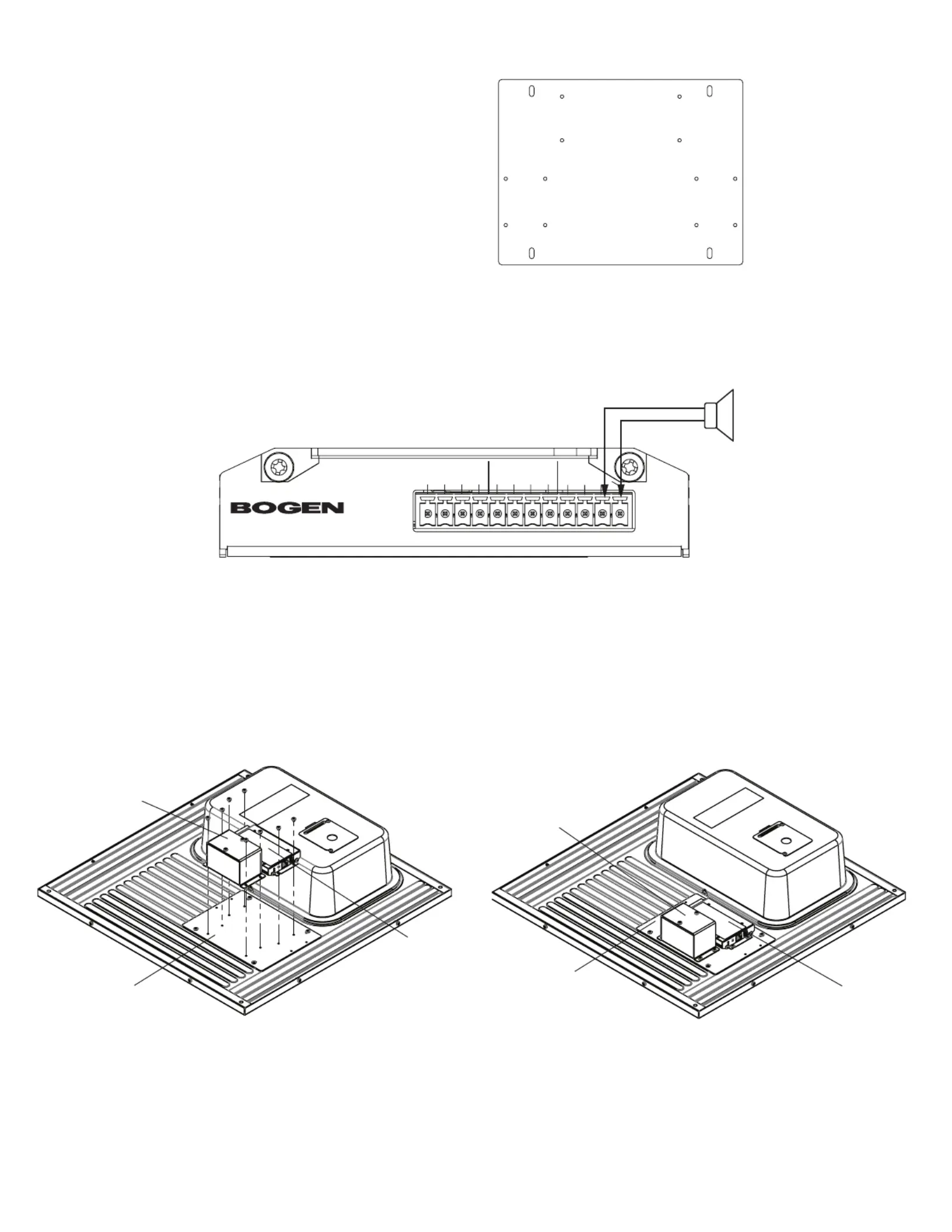

CSDV2 Mounting Plate
The placement of mounting holes varies per module
(see ). They are as follows: Figure 3
A = NQ-GAXMR1
B = NQ-GA40P3
C = NQ-GA10P, NQ-GA10PV, or NQ-GA20P2
Wiring Instructions
Run, at minimum, a Cat 5 cable from the appropriate-sized PoE switch to the VoIP module. Wire the output of the
VoIP module to the CSD speaker in the 8 conguration (see ). This has a 10W maximum at 8 operation.ΩFigure 4 Ω
To CSD2X2U-V2 Speaker wired at 8Ω
CAN
G A 1 2
RELAY
AUDIO
I/O
5V CH CL G NC COM NO G
NQ-GA10P
Vo1P Intercom Module
®
Figure 4: NQ-GA10P VoIP Intercom Module connect to CSD speaker.
Nyquist PoE Amplier and 25V/70V Speaker Conguration
Necessary Components: NQ-GA10P, NQ-GA10PV, NQ-GA20P2, or NQ-GA40P3, and NQ-GAXMR1.
Figure 5 shows the positioning for the mounting of both the VoIP Intercom Module (NQ-GA10P) and the Distributed
Audio Transformer (NQ-GAXMR1) onto the speaker’s mounting plate. Refer back to Figure 3 for the placement of the
mounting holes used for these two modules.
Figure 5: Mounting Intercom Module (NQ-GA10P shown) and NQ-GAXMR1
V2 MOUNTING PLATE
NQ-GAXMR1
NQ-GA10P
V2 MOUNTING PLATE
NQ-GAXMR1
NQ-GA10P
Figure 3: Mounting plate
with holes marked for
specic modules.
A
B
B
C
C
C
C
B
B
AA
A
