Side 1/2
ENG
OK
NO!
Horizontal
2
4
3
1
Turn the E-Bike adapter counterclock-
wise to separate the adapter from the
headlight and the bracket holder.
Turn the bracket holder and align the grooves on the
E-Bike adapter to the grooves on the headlight, and turn
clockwise until the adapter stops.
1
WARNING!!!
• Make sure the illumination angle will not dazzle
oncoming traffic, and never position the visor to
the bottom of the headlight.
• Before your trip, please make sure the light is
firmly mounted to the bracket and it lights up.
CAUTION!
• Do not place it within children’s reach.
• Do not remove the E-Bike adapter when the light
is on.
•
Do not attach the E-Bike adapter if water
droplets, dust, or other foreign matter is attached
to the unit. Also, do not touch the terminals.
•
Never use a high-pressure hose to clean the light.
•
Always connect the front and rear light with the
2-core wire.
• The cable exits have to point downwards to keep
the housings waterproof.
• This device is rated IPX4 based on JIS C0920.
Do not immerse the device in water. Doing so
may cause a malfunction. Wipe off any moisture
after using the device in rainy weather.
• If the light unit or parts become dirty with mud,
etc., clean with a soft cloth which is moistened
with mild soap. Never apply paint thinner,
benzine or alcohol; damage will result.
LEGAL INFORMATION
Only road legal in Germany if installed on bicycles with
pedal assist function up to 25 km/h that are also
equipped with a battery charge indicator and function
to switch off the motor to prevent a deep discharge of
the battery to ensure that the lighting function is
available when needed.
SPECIFICATIONS
Light source High-brightness multi-white LED
Temperature range 14˚F – 104˚F (-10˚C – 40˚C)
Waterproof IPX4
E-Bike output compatibility
• Input voltage DC5.5 − 14.5 V
• Power consumption 6.8 W Nominal power(s)
• Cable length Approx. 150 cm (Red: Positive /
Black: Negative)
Dimensions/weight 2-9/16” x 2-31/64” x 51/64”
(65.0 x 63.0 x 45.5 mm) /
3.5 oz (94.5 g) (Light unit only)
* The specifications and design are subject to change without
notice.
Design Pat. Pending
Copyright© 2020 CATEYE Co., Ltd.
HLEB570G-200924
1
HL-EB570G
E-BIKE HEADLIGHT
Instruction Manual for
E-Bike Dealers

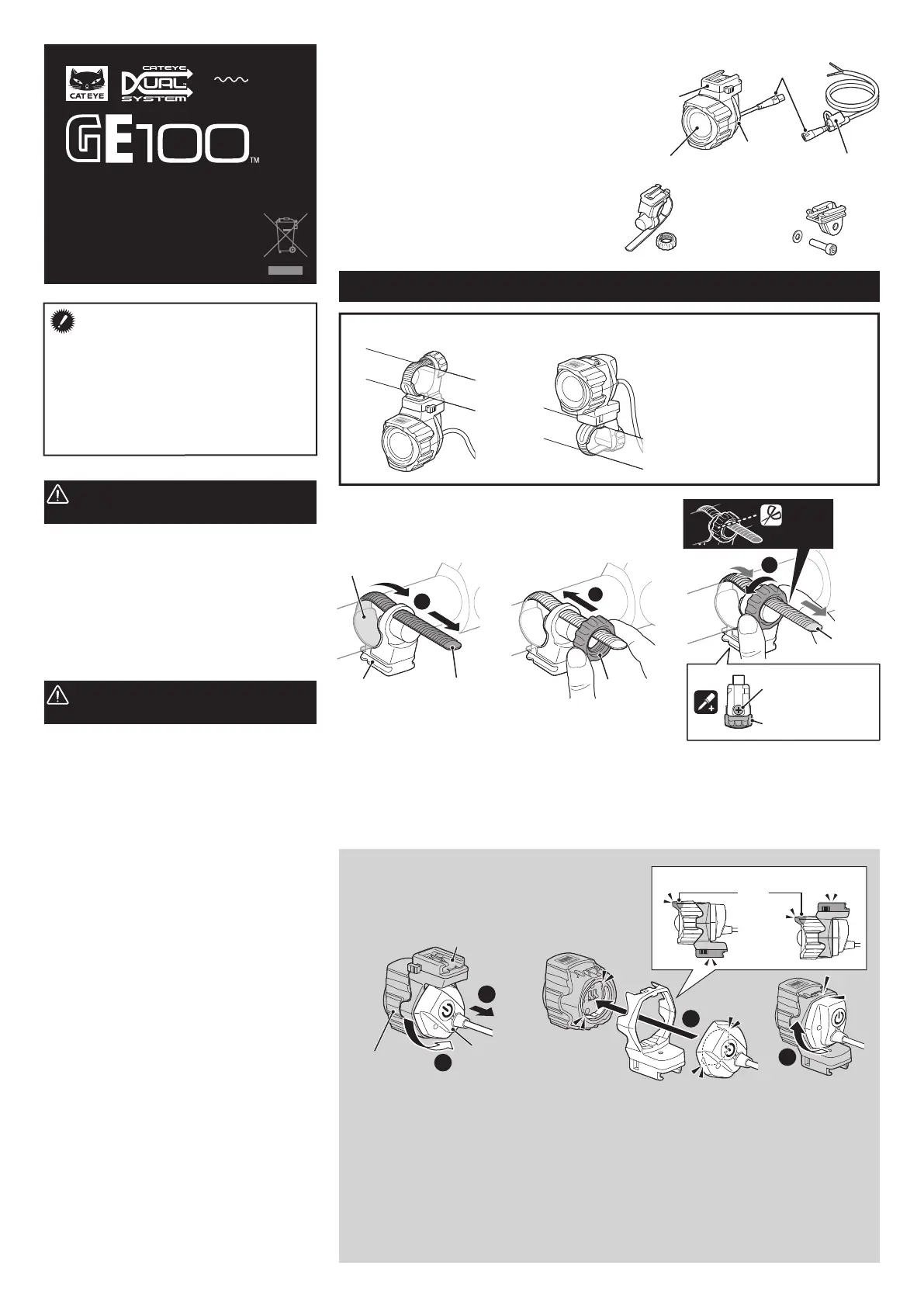

HOW TO MOUNT TO A BICYCLE
GE100 FEATURES
The GE100 headlight connects directly to the E-Bike drive unit for use. The headlight includes a visor to
direct the light distribution, allowing the unit to be mounted on the top or bottom of the handlebar. See
“Mounting above or below the handlebar” for how to change the mounting position of the E-Bike
adapter. The headlight can also be attached to a cartridge battery (optional) for use as a rechargeable
battery headlight. See “USING THE CARTRIDGE BATTERY (OPTIONAL)” for more information.
Light unit FlexTight™ bracket
(H-34N)
Headlight
Bracket holder
E-Bike adapter
Protective cover GP bracket
Mounted below
Mounted above
1. Mounting the bracket
2. Mounting above or below the handlebar
Wrap the strap around
the handlebar.
Attach the dial. Securely tighten the dial.
Cut
2
3
1
*1
Headlight
Mounting height :
400 – 1200 mm
* This section explains how to mount the light unit
below the handlebar.
Rubber pad
Bracket Strap
Strap
Dial
Screw
CAUTION!:
• Be sure to tighten the dial by hand. When you tighten it too hard with a
tool, the screw thread may be stripped.
• Check the dial and screw (*1) on the bracket periodically, and use them
without any loosening.
• Round off the cut edge of the bracket strap to prevent injury.
The head unit can be mounted on either above or below the
handle by positioning the visor of the head unit to the top.
Bracket holder
E-Bike adapter
Removing
Mounted below Mounted above
Visor
Mounting
CAUTION!:
• When attaching or removing the E-Bike adapter, be sure to hold the headlight to prevent it from
dropping and becoming damaged.
• Do not attach the cartridge battery if water droplets, dust, or other foreign matter is attached to
the unit, and do not touch the terminals.
• Never position the visor to the bottom of the headlight. Doing so will dazzle oncoming traffic.
When mounting the light unit, ensure that
the light will not dazzle other road users.
To adjust the angle, loosen the dial or
the screw (*1) to the point that the
bracket moves slightly, make the
adjustment, and then tighten the screw
to fix the light unit in place.
K 1808
• This instruction manual is intended for
use by E-Bike specialists.
Do not attempt to install this headlight if
you are not experienced with E-Bikes.
Consult your dealer for more information.
• After mounting the headlight, dealers are
expected to explain how to use the light
and to provide this instruction manual to
the customer.
3. Attaching/removing the light
Release button
Click
Slide
Press and hold
RemovingMounting
Black Red
To light unit
Light connection
terminals
U S B
1604110
Out-front bracket 2
(OF-200)
USB
When the light unit is turned on, press the switch to
change the lighting mode.
*2 If the bicycle is stationary for a certain period of time,
brightness is reduced to prevent the temperature from rising.
High*2 Low (Eco)
The diagram on the left
shows only one example
of connecting method.
The shape, connection
(position of and ),
and wiring of the light
connection terminals
may differ depending on
the E-Bike model.
Refer to the instruction
manual for the E-Bike
for more information.
DC5.5 − 14.5 V
6.8 W Nominal power(s)
Input voltage
Power
consumption
Cable length Approx. 150 cm
(Red: Positive / Black: Negative)
Click
Switch
The light unit can be turned on/off using the E-Bike controller.
The operation of the controller may differ depending on the E-Bike
model. Refer to the instruction manual for the E-Bike for more
information.
ONOFF
Controller operation Switching the
lighting mode
1
HOW TO MOUNT TO A BICYCLE (Continue)
2SWITCH OPERATION
USING THE CARTRIDGE BATTERY (OPTIONAL)
SPARE/OPTIONAL PARTS LIMITED WARRANTY
2-year warranty: Light unit only (excludes accessories/attachments)
CatEye products are warranted to be free of defects from materials and workman-
ship for a period of 2 years from original purchase. If the product fails to work
during normal use, CatEye will repair or replace the defect at no charge. Service
must be performed by CatEye or an authorized retailer. To return the product, pack
it carefully and enclose the warranty certificate (proof of purchase) with instruction
for repair. Please write or type your name and address clearly on the warranty
certificate. Insurance, handling and transportation charges to CatEye shall be borne
by person desiring service.
4. Connecting to the drive unit
Connect the E-Bike adapter cable to the E-Bike drive unit.
1
2
1
2
3
4
5
5336920
E-Bike adapter
(Min 5.5V-Max 14.5V)
5336840
Cartridge battery
(BA-3.4DS)
5338827N
FlexTight™ bracket
(H-34N)
5445340
GP bracket
5342440
Center fork bracket
(CFB-100)
5336860
Protective cover
CAUTION!:
Be sure to check “E-Bike output compatibility”
before connecting to the drive unit, and be sure
to connect to the drive unit correctly. Light unit
Drive unit
Example connection
E-Bike output compatibility
E-Bike adapter Bracket holder
Cartridge battery (Optional)
Attaching the protective cover. Removing the E-Bike Adapter
Bracket holder
E-Bike adapter
Protective cover
Caution! : Make sure the protective cover is securely attached to the
E-Bike adapter.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan
Attn: CATEYE Customer Service Section
Phone : (06)6719-6863 Fax : (06)6719-6033
E-mail : support@cateye.co.jp URL : https://www.cateye.com
CO., LTD.
