Specifications

Interface

Input Port

AUX Port

Digital Port

OUT Port

SPK Output

Headphone Output

2 x XLR/6.35mm, 1 x 3.5mm

1 x 3.5mm

1 x USB-C

2 x 3.5mm

1 x 3.5mm

2 x 3.5mm

Audio Resolution

Sample Rate

Bit Depth

48kHz

24bit

Microphone Input

Dynamic Range

Frequency Responce

THD+N

Equivalent Noise

Input Impedance

Maximum Input Level

Gain Range

100dB(A-weighted, as per IEC651)

20Hz ~ 20kHz, ±0.1dB

0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF

-130dBu(A-weighted, as per IEC651)

5kΩ

-4dBu

6dB ~ 60dB

Instrument Input

Dynamic Range

Frequency Responce

THD+N

Equivalent Noise

Input Impedance

Maximum Input Level

Gain Range

100dB(A-weighted, as per IEC651)

20Hz ~ 20kHz, ±0.1dB

0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF

-130dBu(A-weighted, as per IEC651)

50kΩ

4dBu

0dB ~ 30dB

2120

SPK Output

Dynamic Range

Frequency Responce

Output Impedance

Maximum Output Level

100dB(A-weighted,as per IEC651)

20Hz ~ 20kHz, ±1dB

600Ω

4dBu

Headphone Output

Dynamic Range

Frequency Responce

Output Impedance

Maximum Output Level

100dB(A-weighted, as per IEC651)

20Hz ~ 20kHz, ±1dB

6Ω

4dBu

Others

Battery

Charging

Phantom Power Output

Net Weight

Dimension

Working Temperature

Storage Temperature

Lithium Battery 2900mAh 3.7V

With 48V Phantom Power on: 6Hours

With 48V Phantom Power o: 10Hours

USB-C 5V2A

48V±2V

670g

239 x158 x 51mm

0 ~ 50℃ ℃

-20 ~ 60℃ ℃

2218

1. Please turn o the 48V phantom power before connecting/

disconnecting microphones to avoid damage to the mics

2.When connecting mics not requiring 48V phantom power, please

make sure to turn o 48V phantom power to avoid damage to the mics

Monitor

1. Connect Microphones

Connect XLR/6.35mm microphones to ADCaster C2 via Input Port1/2(XLR/

6.35mm) (Please switch on the 48V phantom power when using mics powered

by it); connect 3.5mm microphones to ADCaster C2 via Input Port2(3.5mm)

and rotate the Mic Gain Control Knob 1/2 to adjust the gain of mic1/2

2. Connect Instruments

Connect 6.35mm instruments to ADCaster C2 via Input Port1/2(XLR/6.35mm)

and rotate the Mic Gain Control Knob 1/2 to adjust the gain of the instrument

input

DAW Software Setting:

If ‘ADCaster C2’ cannot be found in the software, please make sure

that ADCaster C2 is connected to the computer and open the sound

settings in the computer to see if ADCaster C2 has been set as the

default output device of the computer

When Recording with Digital Audio Workshop, please follow the instructions

below to set up (Take Cubase and Pro Tools as examples)

Cubase

1. Please download and install the driver ASIO4ALL in advance

2. Connect ADCaster C2 to the computer, open Cubase, and create a new

project

3. Click ‘Devices - Device Setup’. Select ‘VST Audio System - ASIO4ALL v2’

4. Click ‘ASIO4ALL v2 - Control Panel’ to activate the ‘ADCaster C2’

input/output port (click to lighten the power and play icons)

ProTools

1. Please download and install the driver ASIO4ALL in advance

2. Connect ADCaster C2 to the computer, open Pro Tools, and create a new

project

3. Click ‘Setup- Playback Engine’, and choose ‘ASIO4ALL v2’

4. Click ‘Setup - Hardware - ASIO4ALL v2 -Launch Setup App’ to activate

the ‘ADCaster C2’ input/output port (click to lighten the power and play

icons)

Monitoring Headphone

Usage Scenes:

4. Gaming on Computer

4.1 Connect microphone, monitoring headphones to ADCaster C2

according to the diagram above

4.2 Connect computer and ADCaster C2 via 2-in-1 audio cable. Computer

will automatically recognize ADCaster C2 and match the driver

4.3 Click “Windows Settings - System - Sound”, set “Comica_ADCaster C2”

as the default input/output device of the computer

4.4 Open your chosen game live application and check if

“Comica_ADCaster C2” is the default audio/playback device

4.5 Start your game live streaming

Monitoring Headphone

Microphone

3. Live Streaming on Smartphone

3.1 Connect live streaming smartphone, accompaniment smartphone,

microphone, monitoring headphones to ADCaster C2 according to the

diagram above

3.2 Turn on ADCaster C2 and select the sound eects needed

3.3 Open a live streaming app on the smartphone and start streaming

Smartphone

Microphone

Phone for

Accompaniment

Phone for

Accompaniment

Pairing Method: Turn on Bluetooth of ADCaster C2 and smartphone,

search for ‘Comica_ADCaster C2’ on the smartphone and click to

connect. The Bluetooth input can be used after paired

3. External Audio Input

3.1 Wired Input

Connect ADCaster C2 to smartphone/computer via Output Port1/2/AUX

Input Port/USB-C Port to input audio signals and turn the AUX Input

Volume Control Knob to adjust the volume or adjust the volume on the

input devices (The volume of audio signals input via Output Port1/2 can

only be adjusted on the input devices.)

3.2 Bluetooth Input

Connect ADCaster C2 to smartphone via Bluetooth to input audio signals

and turn the AUX Input Volume Control Knob to adjust the volume

4. Connect Monitoring Headphones

ADCaster C2 has dual 3.5mm headphone monitor ports. Connect TRS/TRRS

headphone to monitor and turn the Monitor Volume Control Knob to adjust

monitor volume

5. Connect Speakers

Connect speakers to ADCaster C2 via 3.5mm Speaker Output Port and turn

the Output Gain Control Knob to adjust the output volume

6. Connect Smartphone/Computer

Connect ADCaster C2 to smartphone/computer via USB-C Port/Output

Port1/2 and turn the Output Gain Control Knob to adjust the output volume

1.1 Connect microphone, monitoring headphones to ADCaster C2

according to the diagram above

1.2 Connect computer and ADCaster C2 via 2-in-1 audio cable. Computer

will automatically recognize ADCaster C2 and match the driver

1.3 Click “Windows Settings - System - Sound”, set “Comica_ADCaster C2”

as the default input/output device of the computer

1.4 Open your chosen recording application and check if

“Comica_ADCaster C2” is the default audio/playback device

1.5 Record your podcast audio

1.6 Export and upload your audio to podcast platform

2.1 Connect accompaniment smartphone, microphone, monitoring

headphones to ADCaster C2 according to the diagram above

2.2 Connect computer and ADCaster C2 via 2-in-1 audio cable. Computer

will automatically recognize ADCaster C2 and match the driver

2.3 Click “Windows Settings - System - Sound”, set “Comica_ADCaster C2”

as the default input/output device of the computer

2.4 Open the live streaming software on computer and check if

“Comica_ADCaster C2” is the default audio/playback device

Connection and Usage

Connect devices to ADCaster C2 referring to the following pictures

Audio

Input/Output

External

Audio Input

Mic Input

（3V/5V/Wireless Mic)

Speaker Output Mic/Instrument Input

（48V Condenser/

Dynamic Mic)

Audio

Input/Output

Microphone

Computer

2. Live Streaming on Computer

Monitoring Headphone

Phone for

Accompaniment

Phone for

Accompaniment

Microphone

Computer

1. Podcast on Computer

Monitoring Headphone

Standby Time

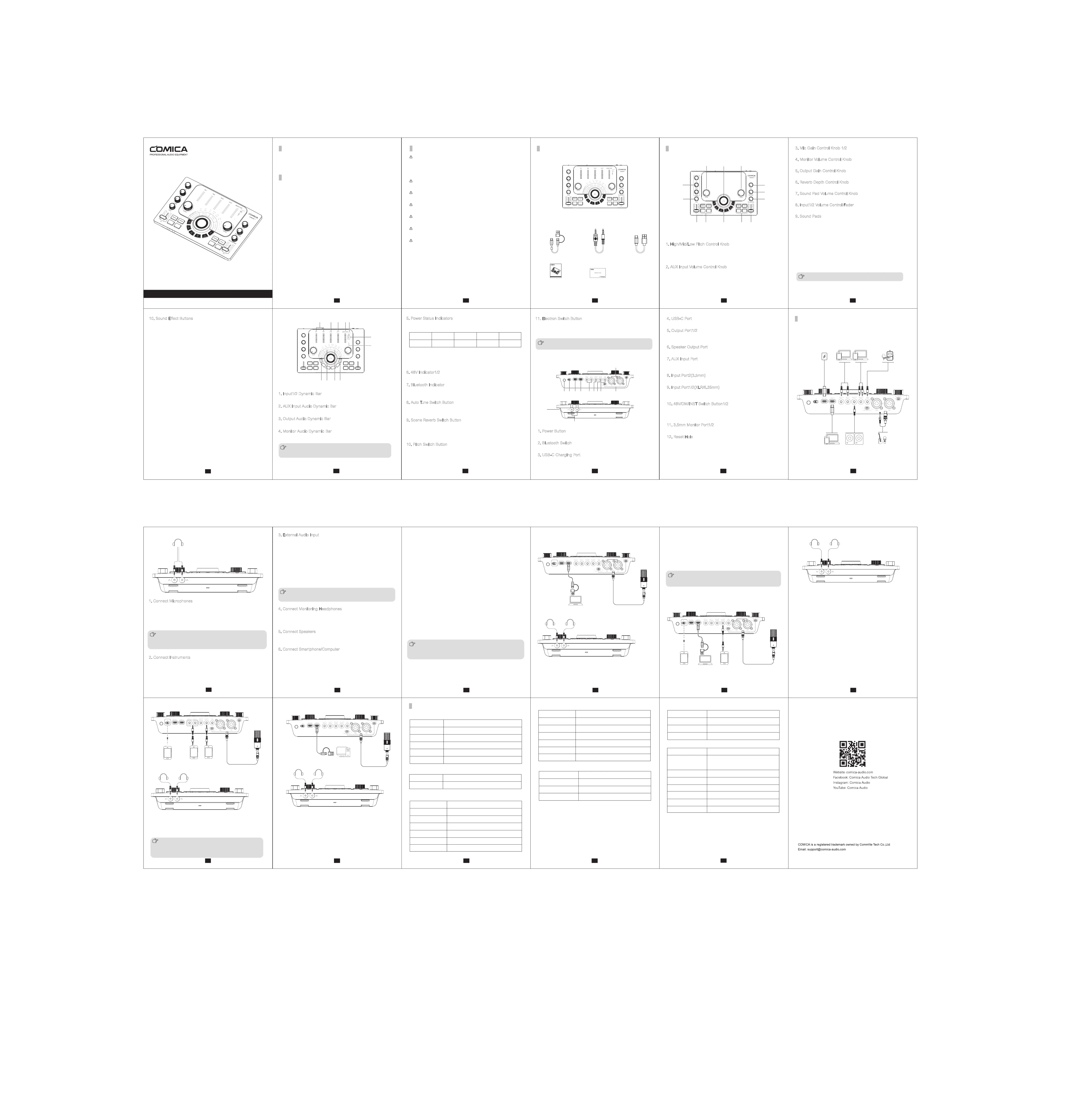

Streaming/Podcasting/Recording Multi-functional Audio Interface

ADCaster C2

User Manual

Foreword

Main Features

Notice

Thank you for purchasing COMICA Streaming/Podcasting/Recording

Multi-functional Audio Interface ADCaster C2

· 48kHz/24bit Record, Broadcasting-level Sound Quality

· Revolutionary CalMixTM Denoise Algorithm, Two-stage Denoise Mode

· Integrated XLR/6.35mm/3.5mm Interface, Support 48V Mic and Instrument

Input

· Multiple I/O Interfaces to Connect Phone, Tablet, and Computer

· Built-in Bluetooth 5.3 Chipset with Stable Transmission and Low Latency

· Support Individual Input Gain, Output Gain, and Monitor Volume Control

· Adjustable High/Mid/Low Tone, Reverb Depth, and Sound Pad Volume

· Support Auto-tune, 6 Scene Reverb, 6 Pitch Changers, and 12-step

Electronic Sounds

· 8 Sound Pads to Create Live Streaming and Podcasting Atmosphere

· Support Music Only/Dry Sound/Loopback/Ducking/Mute Function

· Support Real-time Monitoring and Audio Dynamic Monitor

· Operating Time Up to 6 Hours, Support Charging While Using

When working with other highly sensitive products, it is recommended

to adjust the gain of ADCaster C2 to the minimum before turning it on.

Users can then adjust the gain step by step to avoid sound peak or

audio feedback

When connecting to mics that do not require 48V phantom power,

please turn o 48V phantom power to avoid damage to the mics

Before connecting/disconnecting the microphones, please turn o the

48V phantom power to avoid damage to the devices

Please read this user manual thoroughly before using the product,

and keep it for future reference

Please do not expose the product to rain or moisture, and avoid

spilling water or other liquids on it

Please do not use or store the product near radiators, stoves, or other

heat-producing appliances

This product is of high-precision, please prevent it from dropping or

colliding

1 2

Packing List

Main Part:

Accessories:

ADCaster C2

3.5mm TRRS-TRRS Audio Cable x2 Charging Cable2 in 1 Audio Cable

Warranty CardUser Manual

多功能迷你直播录音一体声卡

ADCaster C1

用户使用手册

Components and Instruction

①

②⑦

⑨ ⑨⑩

⑥

⑤

⑧ ⑧

③ ③④

1. High/Mid/Low Pitch Control Knob

Reduce/strengthen the high/mid/low pitch of the audio input through IN1/2;

turning to the midpoint keeps the original sound; turn counterclockwise to

reduce and turn clockwise to strengthen the pitch

2. AUX Input Volume Control Knob

Adjust the volume of audio signals input from Bluetooth, AUX, and USB-C

ports

3. Mic Gain Control Knob 1/2

Adjust the gain of IN1/2

4. Monitor Volume Control Knob

Adjust the monitor volume

5. Output Gain Control Knob

Adjust the total output gain

6. Reverb Depth Control Knob

Adjust the reverb depth of vocal signals input from IN1/2

7. Sound Pad Volume Control Knob

Adjust the volume of the 8 sound pads

8. Input1/2 Volume Control Fader

Push up/down to adjust the volume of IN1/2

9. Sound Pads

8 sound pads, including 4 preset audio eects

(applause/laughter/cheering/funny) and 4 custom audio eects.

Short press to turn on/o audio eects and the indicator turns on/o

9.1 How to set customized audio eects: Long press to start recording

and the indicator blinks; short press to stop recording. The longest

recording time is 15 seconds and the recording will stop automatically

when time is up. Short press the button again to repeat the audio recorded

and the previous audio will be overwritten after re-recording

Customized audio eect has not been recorded by default

10. Sound Eect Buttons

Short touch to turn on/o a function and the light will turn on/o

Music Only:

Remove the vocals in the background music and reserve the music part

Dry Sound:

Turn o all audio eects temporarily and output only the dry sound recorded

by the microphone

Loopback:

The audio input from the USB-C port can be recorded and output to the

computer via USB-C port. After turning the function o, the audio input from

USB-C port can be monitored, but cannot be output to the computer via

USB-C port

Ducking:

Lower the volume of background music to highlight vocals

Denoise:

Short press to tum on/switch/turn o denoise. The indicator shows blue when

the ﬁrst-stage denoise is on, and shows orange when the second-stage

denoise is on. Denoise automatically ﬁIters background noise of mic1/2

MUTE:

Mute the output audio from IN1/2

11. Electron Switch Button

Short touch to turn on Electron. Short touch again to switch A-Ab eect and

the corresponding light will glow. When switch to Ab, short touch again to

turn o Electron. Long touch can also turn it o

5. Power Status Indicators

Show the interface’s power and charging status

5.2 Four lights blink in sequence while charging. When the battery life is

higher than 20%, the ﬁrst light glows, the last three blink in sequence, and

so on

6. 48V Indicator1/2

Shows blue when 48V phantom power of IN1/2 is on

7. Bluetooth Indicator

Blinks when the Bluetooth is on and not connected. Glows when the Bluetooth

is connected

8. Auto Tune Switch Button

Short touch to turn on/o Auto Tune. When it is on, the light glows and the

ADCaster C2 will slightly ﬁx the o-pitch notes in vocal performance of mic1/2

9. Scene Reverb Switch Button

Short touch to turn on Scene Reverb and switch Room/Stage/Hall/Host/MC/

KTV scene reverb and the corresponding light glows. When switch to KTV,

short touch again to turn o Scene Reverb. Long touch can also turn it o

10. Pitch Switch Button

Short touch to turn on Pitch and switch Male/Female/Baby/Monster/Electr./

Robot eect and the corresponding light will glow. When switch to Robot,

short touch again to turn o Pitch. Long touch can also turn it o

Auto Tune, Electron and Pitch cannot be used simultaneously; Pitch

and Scene Reverb cannot be used simultaneously

8 9

⑪

① ② ⑦

⑨

⑩⑥⑤ ⑧③ ④

⑫

4. USB-C Port

Connect smartphone/computer to input/output audio signal

5. Output Port1/2

3.5mm TRRS port, connect smartphone/computer/tablet to input/output

audio signal

6. Speaker Output Port

3.5mm TRS output port, connect speakers to output audio signal

7. AUX Input Port

3.5mm TRS/TRRS input port, connect smartphone/computer to input audio

signal

8. Input Port2(3.5mm)

3.5mm TRS input port, connect microphone to input audio signal

9. Input Port1/2(XLR/6.35mm)

Connect XLR/6.35mm microphone or instrument to input audio signal.

Support 48V phantom power

10. 48V/DM/INST Switch Button1/2

Adjust to switch between 48V phantom power mode (48V), dynamic mic

mode (DM) and instrument mode (INST). Switch to the corresponding

mode according to the input device of IN1/2 (XLR)

11. 3.5mm Monitor Port1/2

Plug in a TRS/TRRS headphone to monitor

12. Reset Hole

If there is an abnormal phenomenon such as a charging problem, insert a

reset pin into the reset hole to reset

1. Power Button

Long press to power on/o

2. Bluetooth Switch

Turn on/o Bluetooth

3. USB-C Charging Port

Connect power bank/DC power to get charged

① ②

⑦

⑨ ⑩ ⑪

⑥

⑤

⑧

③ ④

1. Input1/2 Dynamic Bar

Shows the input level of IN1/2

2. AUX Input Audio Dynamic Bar

Shows background music volume level

3. Output Audio Dynamic Bar

Shows the total output volume level

4. Monitor Audio Dynamic Bar

Shows the monitor volume level

Each audio dynamic bar contains 9 lights. 6 cyan at the bottom,

2 yellow in the middle and one red on the top. The more lights

glow, the higher the level is

80%-100% 60%-80% 40%-60% 20%-40%

four lights on three lights on two lights on one light on

＜20%

the ﬁrst light

blinks

5.1 Battery life:

Up to three mics can be connected to ADCaster C2 at the same

time, including one 3.5mm mic and two XLR/6.35mm mics. Please

connect mics according to your need

1. ADCaster C2 supports live streaming on two dierent platforms

at the same time, please connect devices according to your need

2. ADCaster C2 supports live streaming on smartphone and

computer at the same time. Please connect devices according to

the diagrams of “Live Streaming on Computer”

Computer

Produkspesifikasjoner

Merke:	Comica
Kategori:	Ikke kategorisert
Modell:	ADCaster C2

Trenger du hjelp?

Hvis du trenger hjelp med Comica ADCaster C2 still et spørsmål nedenfor, og andre brukere vil svare deg

Ditt navn*

Din e-post*

Skriv spørsmålet ditt her

Ikke kategorisert Comica Manualer

Comica ADCaster C2 Bruksanvisning

26 Oktober 2024

Comica AX3 Bruksanvisning

16 Oktober 2024

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer

Amazfit Bip 5 Unity Bruksanvisning

16 Januar 2025

Lowepro Flipside Trek BP 350 AW II Bruksanvisning

16 Januar 2025

Audison Prima APS 8 D Bruksanvisning

16 Januar 2025

Black Line BLMH 36 Bruksanvisning

16 Januar 2025

Absco M 151151 Bruksanvisning

16 Januar 2025

ADDAC System ADDAC200CT Bruksanvisning

16 Januar 2025

Emerio LR-131325.1 Bruksanvisning

16 Januar 2025

Sony WRT-822B Bruksanvisning

16 Januar 2025

IKEA SMÅSPORRE 204.570.22 Bruksanvisning

16 Januar 2025

IKEA SÄFFEROT 904.570.71 Bruksanvisning

16 Januar 2025
