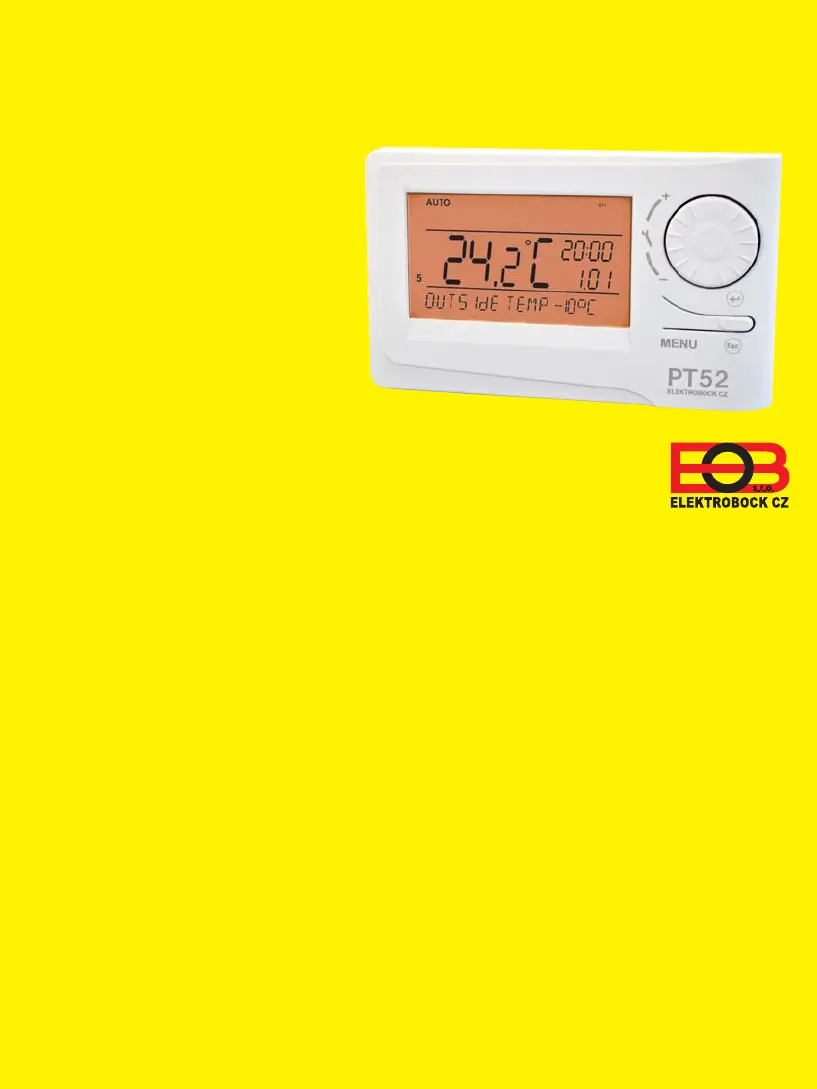

Side 1/14
MADE IN CZECH REPUBLIC
• LARGE BACKLIT DISPLAY
with intuitive navigation in English
• 9 WEEKLY PROGRAMS FOR
CENTRAL HEATING (C.H.)
6 temperature changes per day
• OPERATION OPTIMIZATION
preliminary switch-on function
• CONTROL TYPE SELECTION
according to room or equitherm control
• 1 WEEKLY PROGRAM FOR
HOT SERVICE WATER (D.H.W.)
3 temperature changes per day
• UP TO 30 % ENERGY SAVINGS
quick investment return
MENU
2
DESCRIPTION
PT52 is intended for controlling gas and electric boilers which use the OpenTherm Plus (OT+) communi-
cation protocol. Its great advantages are the backlit display and navigation in CZ/PL/EN/DE/RU.
INSTALLATION AND LOCATION
Install the thermostat at a suitable place where its operation will not be affected by direct fl ow of hot air
from a heating source, by sunshine or other disturbing effects. Do not install it on an external wall either.
The installation height should be at least 1.5 m above the ground. Locate the thermostat in the so-called
reference room, such as the living room (the heat source will be switched according to the temperature
in this room).
The installation can only be done by a person with adequate qualifi cation! Before
installation, disconnect the power supply!
1) Remove the control part from the bottom cover of the device (Fig. 1, page 3).
2) Chip off the plastic piece in the middle of the bottom cover to lead in the conductors.
3) Run the conductors through the hole and connect them to the terminal board acc. to the diagram.
4) Fasten the bottom cover to the wiring box by means of screws (Fig. 2, page 3).
5) Mount the control part onto the bottom cover.
6) Upon the fi rst start (or reset), the thermostat shows the “SET TIME” message; set the current
time and date acc. to the instructions on page 5.
7) To change the navigation menu language, follow page 8 (Czech set by default).
8) Ask the boiler manufacturer, whether it communicates by means of the standard OpenTherm Plus
protocol (for the Thermona, Ferolli and Viessmann boilers, change the constant No. 26, see page 13).
Wiring diagram:
Backlit display
After you press any button, the display is backlit automatically for at
least 5 s (activated within 30 min after connecting the OT line).
Controls
turning = change of temperature setting
short press = selection (entry) confi rmation
= quick change of required
temperature or program (see page 3);
viewing other information (see page 4)
long press = step back (only in the CONST mode,
page 8)
press = opening the main menu or returning
a step back
PT52 BOILER
*
*
OpenTherm communication line,
max. length of 50 m, no polarity
The OpenTherm
communication terminals
are marked differently
with every boiler type;
therefore, observe the
electric connection
recommended by the
boiler manufacturer!
TEMP. IN AUTO
TEMP. IN MANU
1
2
4
6
7
8 9
10
11 13 14
15
16
17
18
19
3
5
12
3
Fig.1
USER TIPS
Fig.2
QUICK CHANGE OF REQUIRED TEMPERATURE / PROGRAM
Press twice the“ “ button; the required temperature starts fl a-
shing on the display. Change the required temperature by turning
the “ “ pbutton for further informati- “ button and press the “
on, or “ “ to return to the main menu.
In the AUTO mode, the change will last until the next program
change. In this mode, another program can be selected in the
same way.
In the MANU mode, the change is permanent.
By successively pressing the “ “ button, you can view further informa-
tion on the: required temperature of hot service water, external tempera-
ture, central heating temperature, boiler output, and operating hours of
the central heating and hot service water; for detailed description, see
page 4.
MENU
1, Current day (in the
Prog mode, selection
of days to be
programmed)
2, Heating on indication
3, Hot service water
indicator
4, Central heating
indicator
5, Current room
temperature
6, Anti-freeze temperature
7, Modes for setting
programs (PROG) and
constants (CONST)
(page 6 and 8)
8, Automatic mode
(page 5)
9, Manual mode (page 5)
10, Holiday mode (page 5)
11, Clock setting mode
12, Permanent shut-off
(page 5)
13, Summer mode
14, Boiler inspection indic.
15, OpenTherm (OT+)
communication indic.
16, Current time
17, Current date/
required temperature/
modulation output in %
(in the CONST mode,
for example, number
of the equitherm curve;
for details, see page 9 )
18, Status line, dynamically
changing according to
the running process
19, Key lock indication
