User's Manual
Before using this product, please be sure to read carefully this
instruction manual and keep,it safe for further reference
Thank you very much for buying our products!Please read this manual
carefully before using the product.

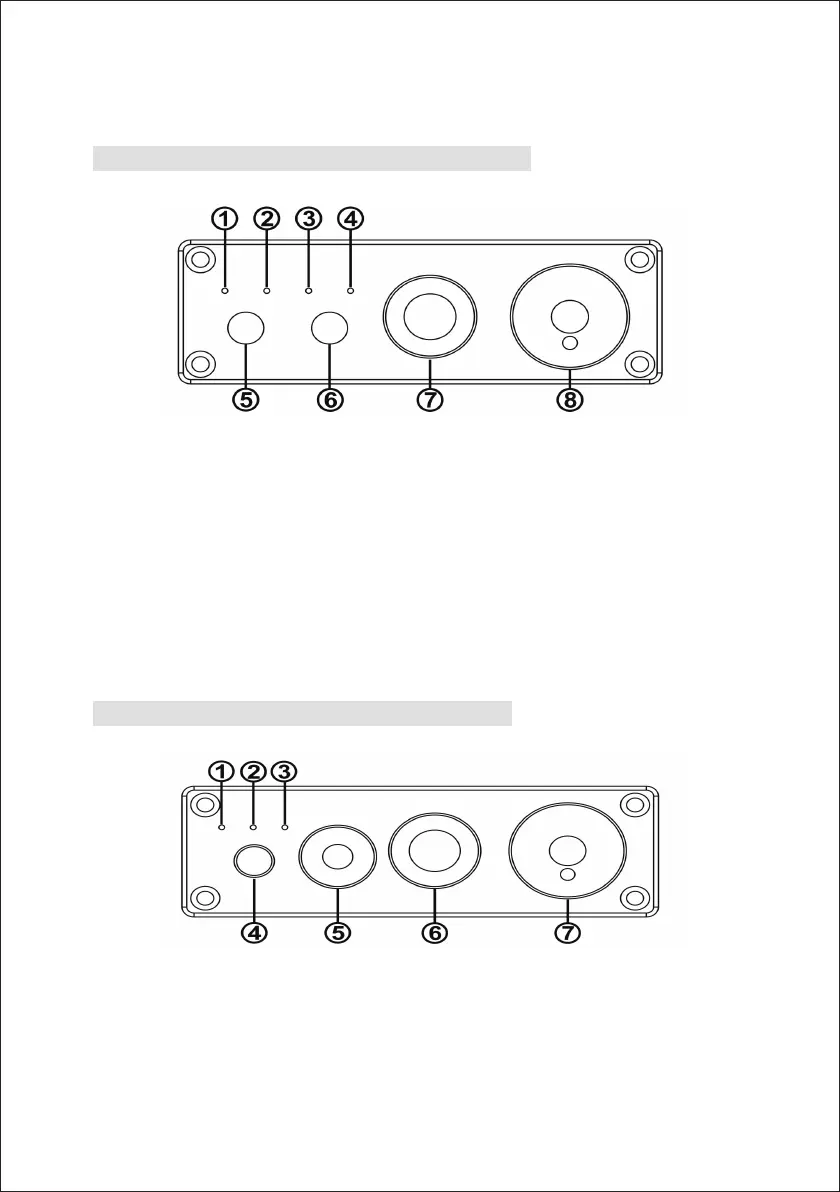

CS4398 Basic version front panel description ：
① ………………………… Power indicator light
② ………………………… Coaxial input indicator light
③ ………………………… Optical fiber input indicator light
④ ………………………… PC-USB input indicator light
⑤ ………………………… Power startup key
⑥ ………………………… Enter the channel switch key
⑦ ………………………… 6.35 Headphone output port
⑧ ………………………… Potentiometer knob (clockwise volume increased, counterclockwise
volume decreased)
ESS9018K2M Basic version of the front panel:
① ………………………… Coaxial input indicator light
② ………………………… Optical fiber input indicator light
③ ………………………… PC-USB Input light
④ ………………………… Switch machine/Input selection key (short press to start, short
press again to switch input channel, long press to shut down)
1
⑤ ………………………… 3.5 Headphone output port
⑥ ………………………… 6.35 Headphone output port
⑦ … … …… … …… … …… Encoder knob (clockwise volume increased, counterclockwise
volume decreased, gently press mute)

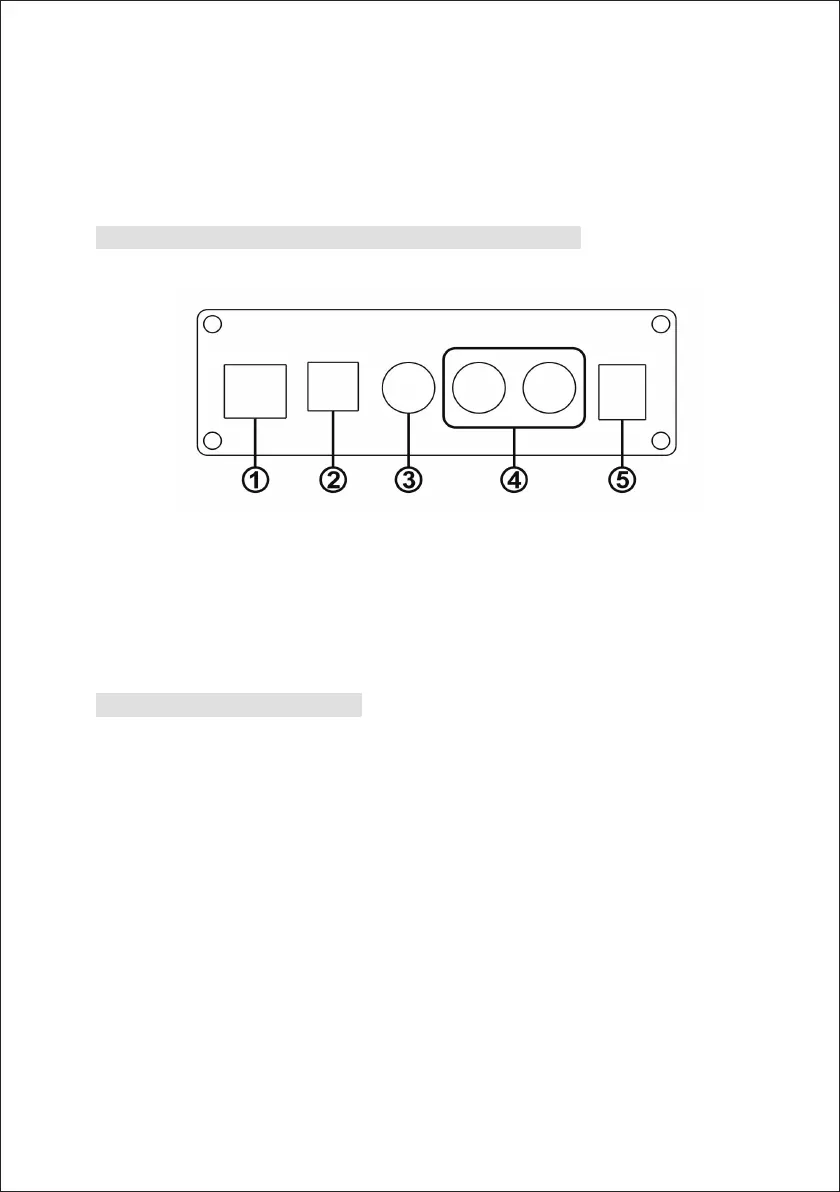

Description of the back panel of the basic version:
① ………………………… PC-USB input interface
② ………………………… Optical input interface
③ ………………………… Coaxial input interface
④ ………………………… Analog output interface
⑤ ………………………… Power interface (DC voltage shall not be higher than 12V)
CS4398 Basic version steps：
1. Determine the VOL knob to the minimum state.
2. Connect the back -end devices that need to be plugged in to the native audio
source output interface.
3. Connect the audio source you need to use to the audio source input interface
4. Connect to the power supply (using a factory supplied power supply or a DC
with a voltage of 12V).
5. Short press the on key to start the machine.
6. Press the input signal selection key to select the access channel ( PC-USB
input is the default boot).
7. Turn the knob clockwise to select the desired volume.
8. When the headphone is connected, for example, the headphone head is 3.5 mm
with the factory available 6.35rpm 3.5mm adapter adapter.
2
Produkspesifikasjoner
| Merke: | Fosi Audio |
| Kategori: | Hodetelefonforsterker |
| Modell: | Q5 |
