CN-2400S
Instructions
CONTRACTOR SERIES SmartSequencer™
PRIMARY LINK
SECONDARY LINK
ETHERNET
DELAY 1
DELAY 2
DELAY 3
POWER
PROTECTION OK
EXTREME VOLTAGE
UNSWITCHED
20 AMPS
PUSH TO RESET
ON
OFF
REMOTE
CN-2400S
Contractor Grade Power Management with
SmartSequencing™
Features:
SmartSequencing™ technology allows large complex A/V systems to be
safely power cycled on and off sequentially, with a simple key turn or press
of a button.
Series Multi-Stage Protection (SMP) ensures zero downtime for mission
critical installations by safely eliminating dangerous surges and spikes.
Extreme Voltage Shutdown (EVS) with auto reset safeguards against
operation during catastrophic under and over voltage conditions.
Linear Filtering Technology (LiFT) ensures maximum equipment perfor-
mance by reducing AC noise in a linear fashion across a wide bandwidth.
Remote Access (RS-232) compatibility with programming provides inte-
gration with various control system platforms, including BlueBOLT®.
Security features include a key switch to prevent unauthorized operation
and cover shields to prevent tampering with switch settings.
Forced Off immediate shutdown: for safety and fire ordinance compliance.
Multi-Color LED Indicators for status functions.
9 outlets on 4 banks providing 2400 total Watts of conditioned AC power.
10 ft. Power Cord 12 AWG
15 Year Limited Product Warranty
CN-2400S INST. REV. B 6-16-15
1
Introduction
Congratulations and thank you for choosing the Furman CN-2400S. We
assure you that your CN-2400S will provide many years of trouble free
operation. The CN-2400S is a 20 Amp Contractor-Grade Surge Protec-
tor and Power Sequencing device equipped with Furman’s exclusive
SmartSequencing™ technology. The Furman CN-2400S features mul-
tiple layers of protection that have been designed to shield your sensitive
analog and digital equipment from AC line hazards. Furman’s SmartSe-
quencing™ technology defines a new level of power management and
control while streamlining installations from start to finish.
Why choose Furman?
At Furman Sound, we have spent the last 30 years quietly obsessing
about professional audio and how to best separate your equipment from
the noise and damage often associated with AC power. Over the years we
have developed a multitude of technologies that have spared countless
devices from certain death and earned us the trust and respect of the
Professional A/V industry. The CN-2400S represents the culmination of
our engineering expertise and leverages more than 30 years of experi-
ence.
Why choose AC power sequencing?
Many pro audio/video installations need audio power amplifiers to activate
last. Our solution is the AC power sequencer. The power sequencer pro-
vides AC power to outlet groups one at a time, thus allowing equipment to
be powered up and down in an orderly fashion by first providing power to
signal processing equipment and then providing power to the amplifiers.
When shutting down the A/V system, a sequencer will turn off the system
in the reverse order, hence the amps will be turned off first, and then the
signal processing equipment will be turned off last.
This is necessary because, as most sound reinforcement professionals
know, the majority of equipment damage occurs when devices are either
powered up or powered down. Power sequencing allows equipment
to power up in sequence and prevent the dreaded “pop”. The “pop”
is a speaker pop associated with on off switching of signal processing
equipment while the audio power amplifiers are energized. If the signal
processing “pop” is amplified sufficiently, the result can damage speaker
components. Because it prevents this unwanted, and often costly, circum-
stance, AC power sequencing is extremely valuable.
Furman Contractor Series equipment also allows sound reinforcement
equipment to be remotely powered up or powered down over a large
distance, not just in the immediate vicinity of the operator. Additionally,
Maintained or Momentary mode contact switching allows the user great
flexibility when controlling the unit from a remote location. A remotely
mounted switch or control pad can be used to sequence equipment on
or off. In addition, Furman Contractor Series remote functions can be
initiated across a room, on-site, or off-site with RS-232 protocol or our
cloud-based BlueBOLT technology.
The CN-2400S incorporates Furman’s revolutionary SmartSequencer
Series Multi-Stage Protection (SMP) circuit with our acclaimed Linear
Filtering Technology (LiFT). In combination, these field tested technologies
comprise, without question, the world’s most advanced power condition-
ing and transient voltage surge suppression anywhere! And, in regards to
Professional A/V, the CN-1800S fulfills many power sequencing require-
ments that have not been easy to achieve in the past. Furman SmartSe-
quencing™ delivers right out of the box! Please review this manual
thoroughly to discover how the CN1800S with SmartSequencing™
delivers professional results.
Before You Begin Inspect Upon Receipt

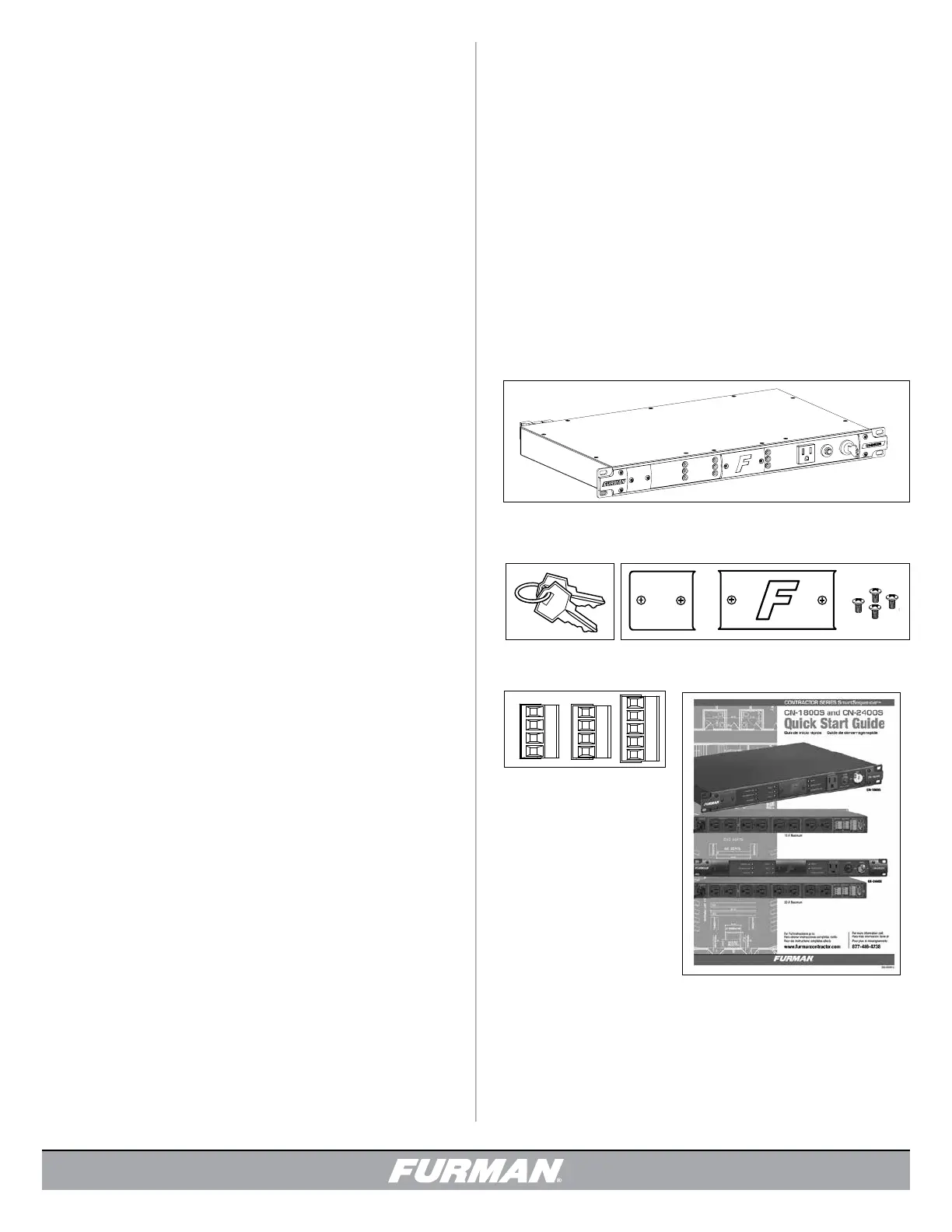

The box should contain the following items: a Contractor Series Quick
Start Guide
PRIM ARY LI NK
SECON DARY LINK
ETHER NET
DELAY 1
DELAY 2
DELAY 3
POWER
PROTE CTION OK
EXTRE ME VOLT AGE
UNSW ITC HED
20 AMP S
PUSH TO R ESET
ON
OFF
REMOTE
CN-SERIES UNIT
CN-2400S
Pair of Security Keys Two Removable Cover Shields and Four Screws
3 Phoenix Type Connectors
(2 four pin, 1 five pin)
CN-2400S
Quick Start Guide
2
SmartSequencing™
Furman SmartSequencing™ is a contractor-friendly technology that
makes AC power sequencing easy to employ by non-technical person-
nel. Multiple Furman Contactor Series units can be linked together using
inexpensive two conductor wire, thus creating a vast control system.
Generally, high-priced automation systems are used for large, innovative
installs, yet these control systems seldom combine AC power distribu-
tion, filtering, and protection. Furthermore, many automation systems are
difficult to implement on smaller budgets. SmartSequencing™ provides
the answer right out of the box by offering a simple approach to AC power
management and control. Furman’s newest power sequencing technology
is an end-to-end solution that is operational up to 1000 feet via a non-
polarized, isolated current loop. In situations where power sequencing is
critical, or more than one AC electrical circuit is utilized, wiring Furman
SmartSequencing™ products in series is simple, fast and reliable.
SMP (Series Multi-Stage Protection)
Furman’s SMP surge suppression virtually eliminates service calls and
costly “down time”. Traditional surge suppression circuits sacrifice
themselves when exposed to multiple transient voltage spikes, requiring
your system to be dismantled and your surge suppresser to be repaired.
This does not happen with Furman’s SMP. Damaging transient voltages
are safely absorbed, clamped, and dissipated. Your connected equipment
is protected, while your Furman protects itself! Its unparalleled clamp-
ing voltage is unique to Furman’s SMP. According to UL 1449 Clamping
Level is defined as the amount of voltage that is allowed to pass through
to your equipment when the protection device is subjected to a transient
surge or spike. While other designs offer clamping voltages that clamp
well above 330 Vpk, Furman’s SMP clamps at 188 Vpk, (133 VAC RMS)
even when tested with multiple 6000 Vpk - 3000 Amp surges. This
unprecedented level of protection is only available with Furman’s SMP
technology!
EVS (EXTREME VOLTAGE SHUTDOWN)
Furman’s trusted (EVS) over-voltage circuitry protects against prolonged
over-voltage conditions, such as accidental connections to 208 or 240
VAC or an intermittent loss of neutral. It does so by monitoring the incom-
ing AC voltage. When an unsafe condition is detected, a relay shuts off
the incoming power until the overvoltage condition has been corrected.
The CN-2400S augments the EVS capability with Auto Reset options
allowing the end user to decide if the power should be reinstated, or re-
main off until conditions return to acceptable limits. The Extreme Voltage
Shutdown technology is a tremendous asset.
LIFT (LINEAR FILTERING TECHNOLOGY)
Unfortunately, traditional AC power conditioners have been designed
under unrealistic laboratory conditions. Professional audio/video compo-
nents are constantly bombarded by electromagnetic interference (EMI)
and radio frequency interference (RFI) via their AC power source. Prior
technologies, whether they were multiple-pole or conventional series-
mode filters, could actually harm audio and video performance more than
they help, due to the resonant peaking of their antiquated, non-linear de-
signs. Under certain conditions, these designs can actually add more than
10 dB of noise to the incoming AC line! Worse still, AC noise and ground
contamination frequently causes system reboots, sync issues and even
data loss. LiFT takes a different approach, ensuring optimal performance
through Furman’s linear AC noise filtering with no ground contamination.
Table of Contents
Feature Descriptions_____________________________________________________________________________________________2 & 3
Important Safety Instructions__________________________________________________________________________________________ 3
Quick Start Diagrams____________________________________________________________________________________________ 4 & 5
SmartSequencing™ 101 ____________________________________________________________________________________________ 6
Front Panel Overview _________________________________________________________________________________ 6, 7, 8, 9, 10 & 11
Rear Panel Overview___________________________________________________________________________________________ 12 & 13
Setup and Troubleshooting__________________________________________________________________________________________ 13
RS-232 Installation and Command Set_________________________________________________________________________________ 14
BlueBOLT™_________________________________________________________________________________________________14
Specifications ___________________________________________________________________________________________________ 14
FCC Notice and Customer Service_____________________________________________________________________________________ 14
15 Year Limited Warranty___________________________________________________________________________________________ 14
