FC 174- Quick Start Guide
This guide helps you install and use your for the rst time. FC-174
Go to www.kramerav.com/downloads/FC-174 to download the latest user manual and check if firmware
upgrades are available.
Step 1: Check what’s in the b ox
FC-174 4 Channel 4K HDMI Converter Tool
4 Rubber feet
TOOL Mounting bracket kit
1 Power adapter and cord
1 Quick start guide

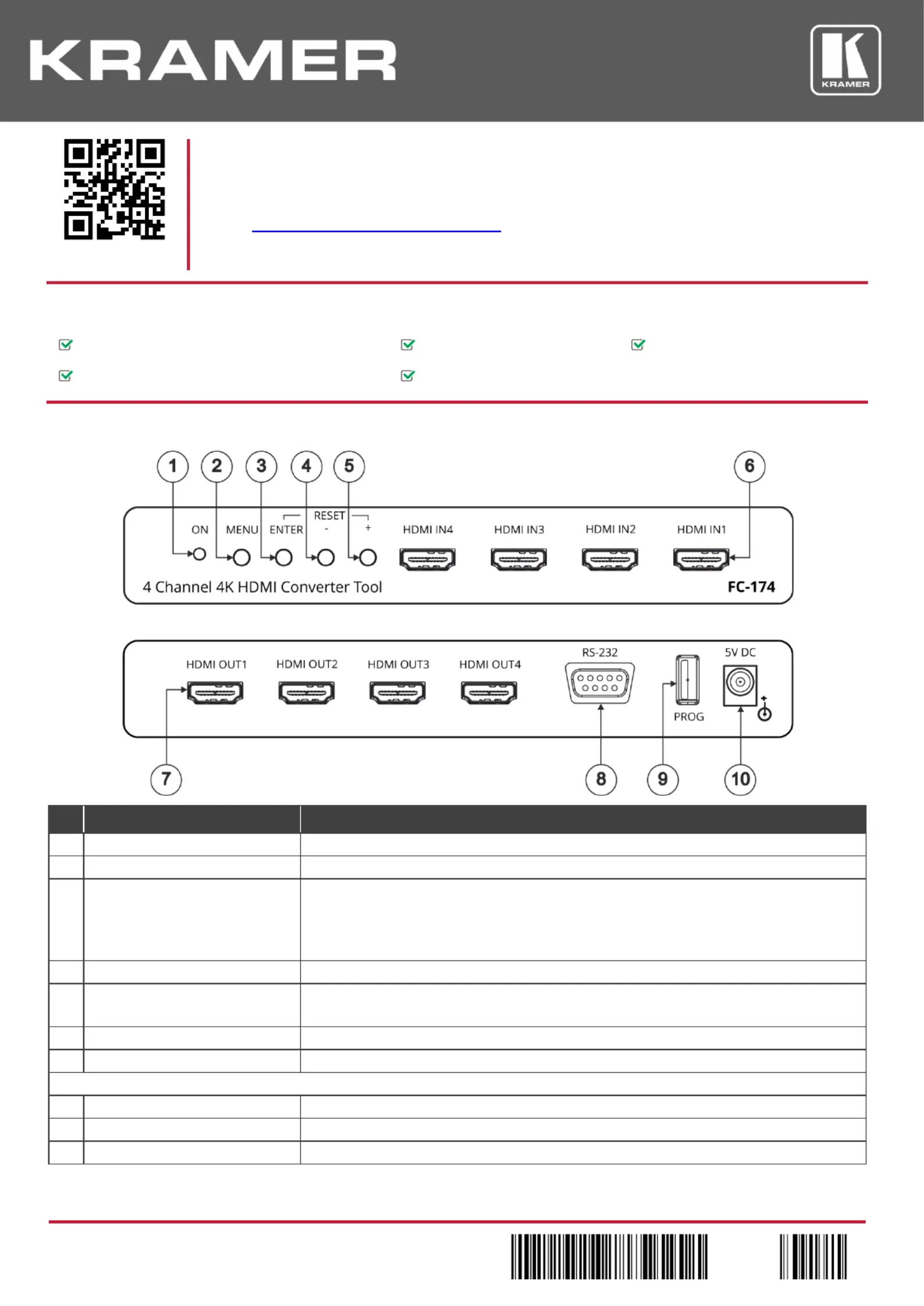

Step 2: Get to know your - FC 174
#
Feature
Function
1
ON LED
Lights green when the unit is powered on.
2
MENU Button
Press to enter/exit the on-screen display (OSD) menu.
3
ENTER Button
In the OSD, press to choose the highlighted menu item.
W not in the OSD, press to view information (enabled when a channel input and hen
output connected and the channel Display Information is set to On). is
Press ENTER and + simultaneously to reset the device to its default parameters.
4
- Button
In the OSD, press to move back through the list or to decrement the parameter value.
5
+ Button
In the OSD, press to move forward through the list or to increment the parameter value.
Press ENTER and + simultaneously to reset the device to its default parameters.
6
HDMI IN Connectors (1 to 4)
Connect to HDMI sources.
7
HDMI OUT Connectors (1 to 4)
Connect to HDMI acceptors.
Note that IN 1 to OUT 1 comprises Channel 1, IN 2 to OUT 2 comprises Channel 2 and so on.
8
RS-232 9-pin D-sub Connector
Connect to a PC to control via the Windows Application software. FC-174
9
PROG USB Port
Connect to a PC for rmware upgrade.
10
5V DC
+5V DC connector for powering the unit.

Step 3: Install the - FC 174
Install using one of the following methods: FC-174
Attach the rubber feet and place the unit on a at surface.
Fasten a bracket (included) on each side of the unit and attach it to a at surface.
For more information go to .
www.kramerav.com/downloads/FC-174
Mount the unit in a rack using an optional rack adapter. RK-T2B

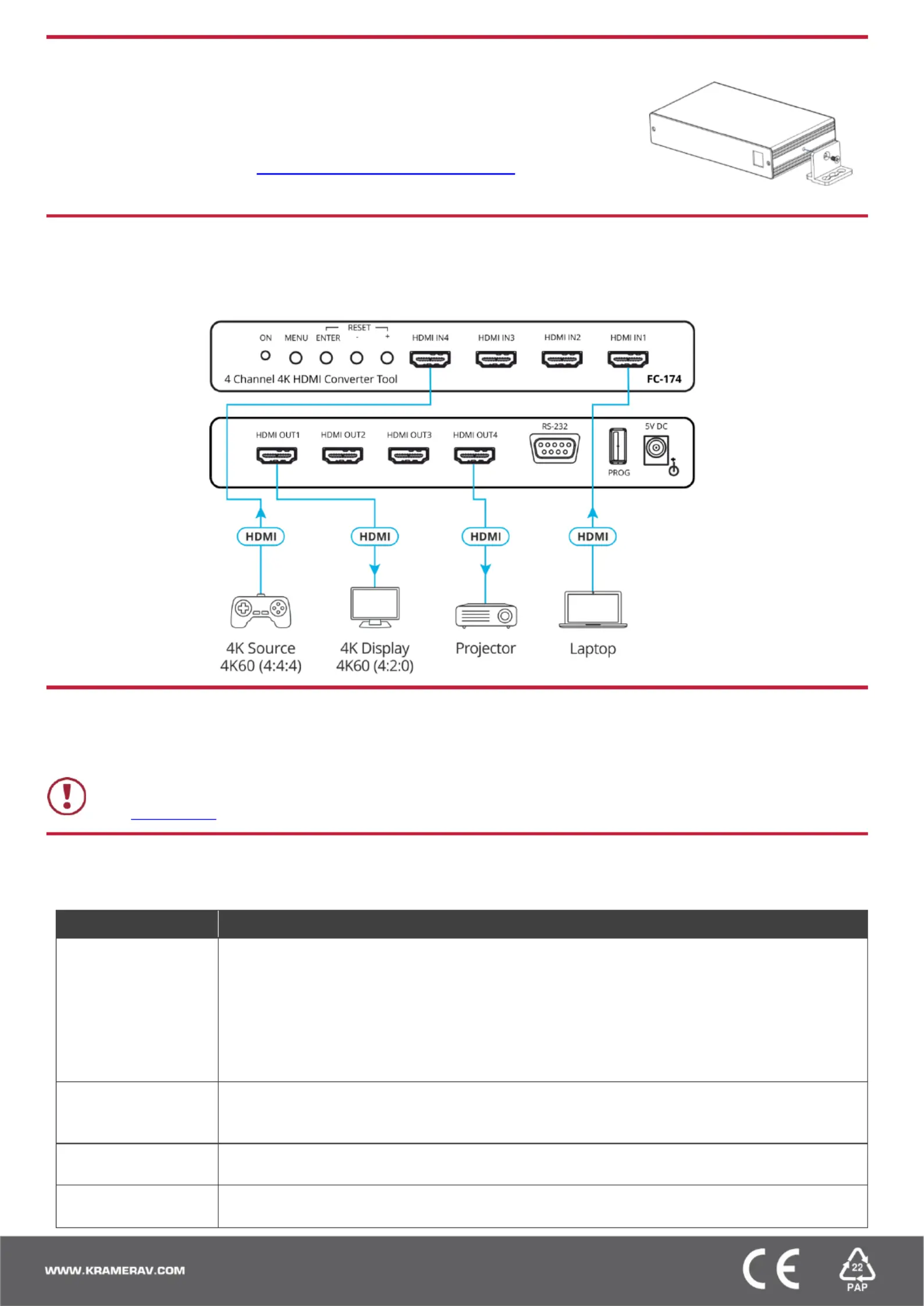

Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your . For best results, we recommend that you always FC-174
use Kramer high-performance cables to connect AV equipment to the . FC-174
Step 5: Connect the power
Connect the 5V DC power adapter to the power socket and then connect the adapter to the mains electricity.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the Kramer Electronics power supply that is provided with the unit.
Warning:
Disconnect the power and unplug the unit from the wall before installing.
See for updated safety information. www.KramerAV.com
Step 6: Operate the -174 FC
Use the OSD menu to set the parameters:
Menu Item
Function
Channel 1 to Channel 4
Input EDID Select: Sink User or Internal
4K2K 50/60 RGB: 4:2:0 Downsampling, 4:2:2 Downsampling or Passthrough.
4K2K 50/60 YUV4:4:4: 4:2:0 Downsampling, 4:2:2 Downsampling or Passthrough.
4K2K 50/60 YUV4:2:2: 4:2:0 Downsampling, 4:2:2 Downsampling or Passthrough.
Auto Sync O: Disable, Slow or Fast.
Output Pattern: Mode (On/O), Timing and Pattern Type.
OSD: Display Information (Yes/No) and Display Timeout.
Main OSD
Display Select: All Channels or one Channel (set Main OSD to appear on all channels or on one of
the four channels).
Display Timeout : 5 to 40 sec, O
Channel Information
Channel 1 to 4: Resolution, Input Colorspace, Output Colorspace, Input HDCP, Output HDCP
Firmware Version
System Setting
Firmware Update.
Factory Reset.
