Side 1/30
Remove the Right Side Panel and Top Cover
卸下右側板與上蓋 /Retirez le panneau latéral droit et le capot supérieur/Entfernen Sie die rechte Seitenwand und die obere
Abdeckung / Retire el panel lateral derecho y la cubierta superior/右側のサイドパネルとトップカバーを取り外します
Remove the front & side glass panel
卸下前及側玻璃 / Retirez le panneau en verre avant et latéral / Entfernen Sie die vordere und seitliche Glasplatte/
Retire el panel de vidrio frontal y lateral/前⾯とサイドのガラスパネルを取り外してください
如需運送，務必將⽴柱鎖上/
Assurez-vous de fixer le pilier pour le
transport
1. Remove the protecting clip Retire z le clip de prote ction./移除保護膠條/
2. /撕掉玻璃兩⾯的保護膜/
Peel off the protective film on both sides Décollez le film protecteur des deux côté s.
3. Recommend to keep the protecting clip on for transportation/如需運送建議將保護膠條裝上/
Il est recommandé de conserver le clip de protection pour le transport.
Remove the Front Pillar
⽴柱卸除⽅式/
Retirez le Pilier Avant/
Entfernen Sie die vordere Säule/
Quitar el Pilar Frontal/
フロントピラーを取り外す
- 1 -
Make sure to fix the pillar for
transporting/
Lift up/ Soulever提起/
Pull out/ Tirer拉出/
Lift up/ Soulever提起/
Pull out/ Tirer拉出/
Normal Mode Specifications
正常模式規格/Spécifications du mode normal / Spezifikationen für den Normalmodus /
Especificaciones del modo normal/通常モードの仕様
Refer to page 1-16, 29-30 to install this mode/要安裝此模式，請參閱第 1-16 29-30， ⾴/
Consultez les pages 1-16, 29-30 pour installer ce mode
Power Button, Reset Button, button for color C
control, button for lighting mode control,M
B button for light brightness control
IO ports: 1 x AUDIO / Microphone Combo Jack,
2 x USB 3.0, 1 x USB 3.1 Type C,
Supporting 120 mm fan x 3 or 140 mm fan x 3
or 360 mm radiator x 1 or 420 radiator x 1
Supporting 120 mm fan x 3 or 140 mm fan x 3*
or 360 mm radiator x 1 or 280 radiator x 1
or 2.5” SSD x 4 or 3.5” HDD x 2
Supporting 120 mm fan x 3 or 140 mm fan x 3
or 360 mm radiator x 1
5" LCD screen
Removable HDD tray, Supporting 2.5” SSD x 2
or 3.5” HDD x 2
Removable HDD tray, Supporting 2.5” SSD x 2
Removable PSU mounting bracket
Refer to page1-5, 17-30 to install this mode/ 1-5 17-30 /要安裝此模式，請參閱第 ， ⾴
Veuillez vous référer aux pages 1-5, 17-30 pour installer ce mode
Normal
Reverse Reverse Mode Specifications
倒置模式規格 / Spécifications du mode inversé / Spezifikationen für den Rückwärtsmodus /
Especificaciones del modo inverso / リバースモード仕様
Power Button, Reset Button, button for color C
control, button for lighting mode control,M
B button for light brightness control
IO ports: 1 x AUDIO / Microphone Combo Jack,
2 x USB 3.0, 1 x USB 3.1 Type C
Supporting 120 mm fan x 3 or 140 mm fan x 3
or 360 mm radiator x 1, or 280 mm radiator x 1
Supporting 120 mm fan x 3 or 140 mm fan x 3*
or 360 mm radiator x 1 or 280 radiator x 1
or 2.5” SSD x 4 or 3.5” HDD x 2
Supporting 120 mm fan x 3 or 140 mm fan x 3
or 360 mm radiator x 1
5" LCD screen
Supporting 2.5” SSD x 1 + 3.5” HDD x 2
or 2.5” SSD x 2
Removable HDD tray, Supporting 2.5” SSD x 2
Removable PSU mounting bracket
- 2 -
* Screw points are missing on the top and bottom when mounting
3x140 mm fans on side; it only supports UNI FAN, which holds well
without screws on the top and bottom/當在側⾯安裝 3x140 mm
⾵扇時，頂部和底部缺少螺絲 孔；僅⽀援頂部和底部無需鎖也能牢固
固定的UNI FAN/Des points de vis manquent en haut et en bas lors
du montage latéral de ventilateurs 3x140 mm; il supporte
uniquement UNI FAN, qui tient bien sans vis en haut et en bas

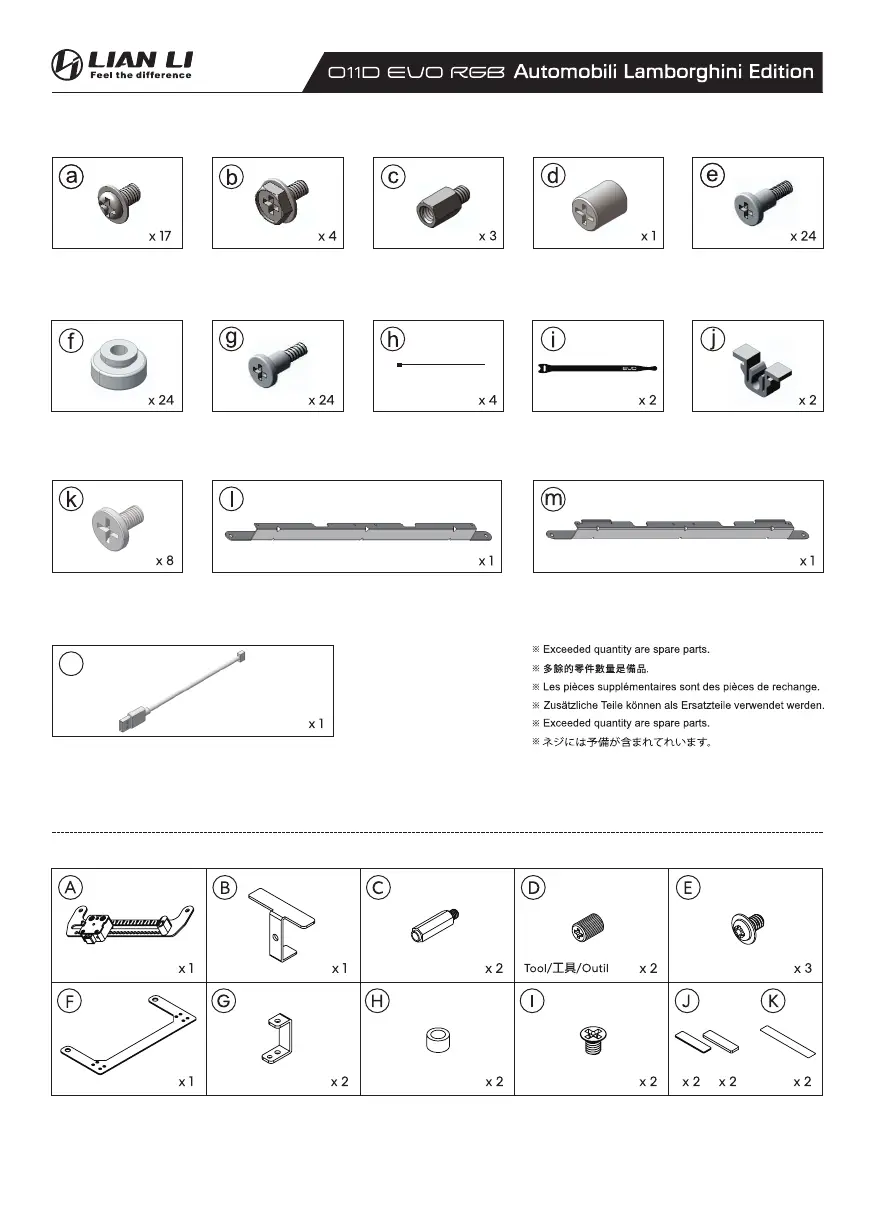

Hardware List
零件部品⼀覽表 / Liste du matériel / Hardwareliste / Lista de hardware / ハードウェアリスト
420 Radiator Mounting Bracket 420 Radiator Mounting Bracket (with Hooks)Screws
for 420 Radiator
Mounting Bracket
Screws
for motherboard/
2.5" SSD mounting
Screws
for PSU mounting
Stand-off bolt
(spare parts)
for M/B mount
Tool
for stand-off bolt
Screws
for 2.5" SSD mount
3.5" HDD mount
Anti-vibration rings
for 2.5" SSD
Screws
for 3.5" HDD mount
Cable ties
for cable
management
Velcro straps Female clips
(spare parts)
for side panel
For graphic card anti-sag bracket kit installation/⽤於顯卡防下垂⽀架套件安裝/
Pour l'installation du kit de support anti-affaissement de la carte graphique
- 3 -
Cable
for Connect the USB to the MB rear
IO USB port
n
