Receiver Wiring Adapter
120 70-5526
Revision 01/14/25
STEP 1 -- MATCH & CONNECT WIRES
*120705526*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2025 Crutchfield Corporation
A.
B.
C.

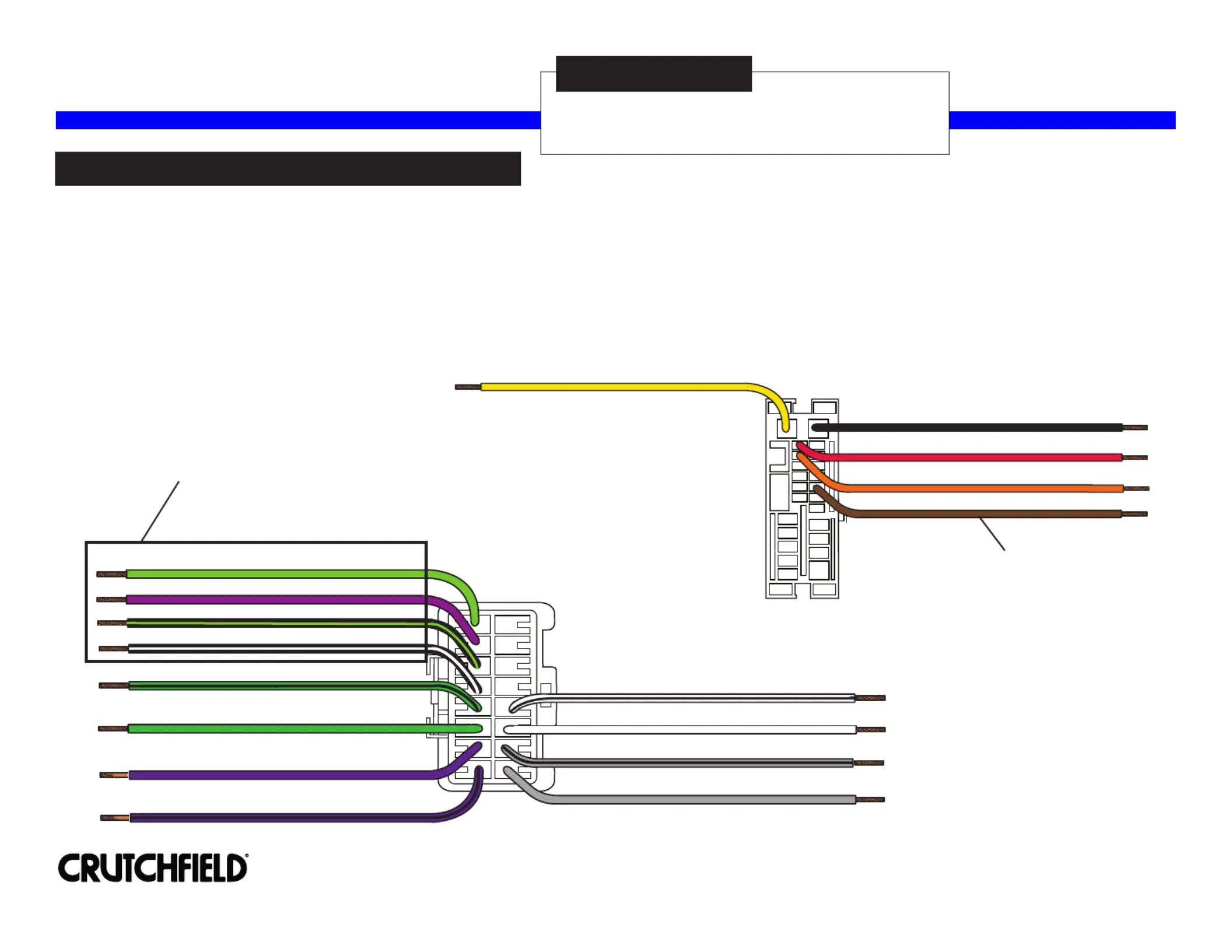

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adapter. Match adapter and receiver wires by function, disregarding color.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
Orange - Illumination
Yellow - 12 Volts Constant Power
Red - 12 Volts Switched Power
White - Left Front Speaker Positive
Brown - Steering Wheel Control
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Black - Chassis Ground
Violet/Black - Right Rear Speaker Negative
Green/Black - Left Rear Speaker Negative
4
4
This harness connects
at the receiver location.

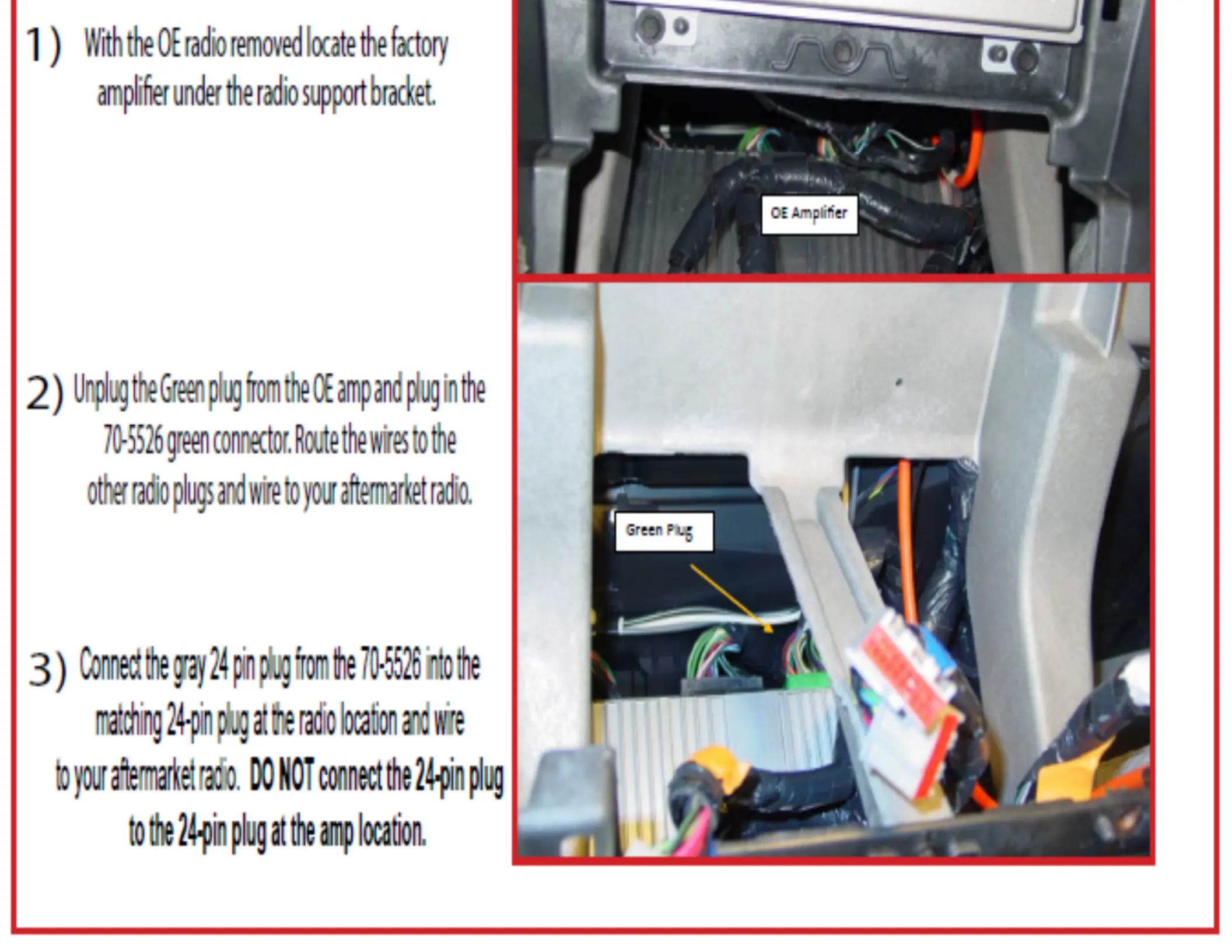

This harness connects
to the green plug at the
factory amplifier.
Connect to the Steering
Wheel Control Interface
signal wire (if applicable).
The subwoofer wires are labeled on the
harness so as to not be confused with the
other speaker wires. A separate amplifier
is recommended to power the subwoofer.
Light Green- Subwoofer Coil 1 Positive
Violet- Subwoofer Coil 1 Negative
Black/Light Green- Subwoofer Coil 2 Positive
Black/White - Subwoofer Coil 2 Negative
120 70-5526
Copyright 2025 Crutchfield Corporation
Receiver Wiring Adapter Connections
Page 2

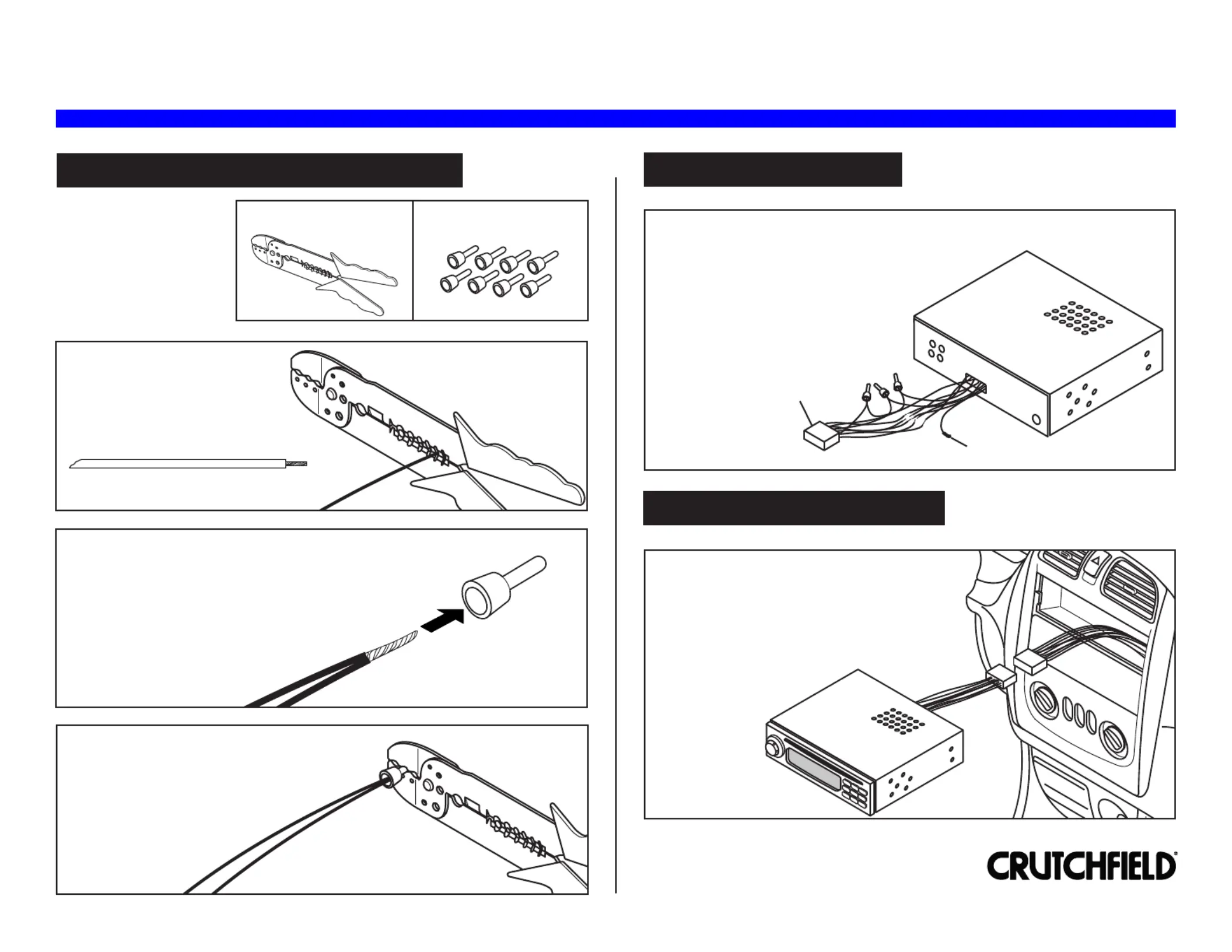

STEP 2 -- CONTINUED
A. Strip wires back 1/2”.
B. Twist wires together and
insert in crimp cap.
C. Squeeze middle of cap
for tight connection.
STEP 3 -- APPLICATION
When ready to install the receiver, plug
the Wiring Adapter from the new receiver
or receiver assembly into the factory
radio harness(es) in the vehicle dash.
D. Complete crimp connections
for all necessary wires.
E. Be sure to wrap any wires from
the Wiring Adapter that are
not necessary (wires with no
match from the new receiver)
with electrical tape.
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts
Required4
Wire Stripper/Crimp Tool Crimp Caps
Unused Wire (tape over bare wires)
Receiver Wiring Adapter
Generic Illustration
Generic Illustration
