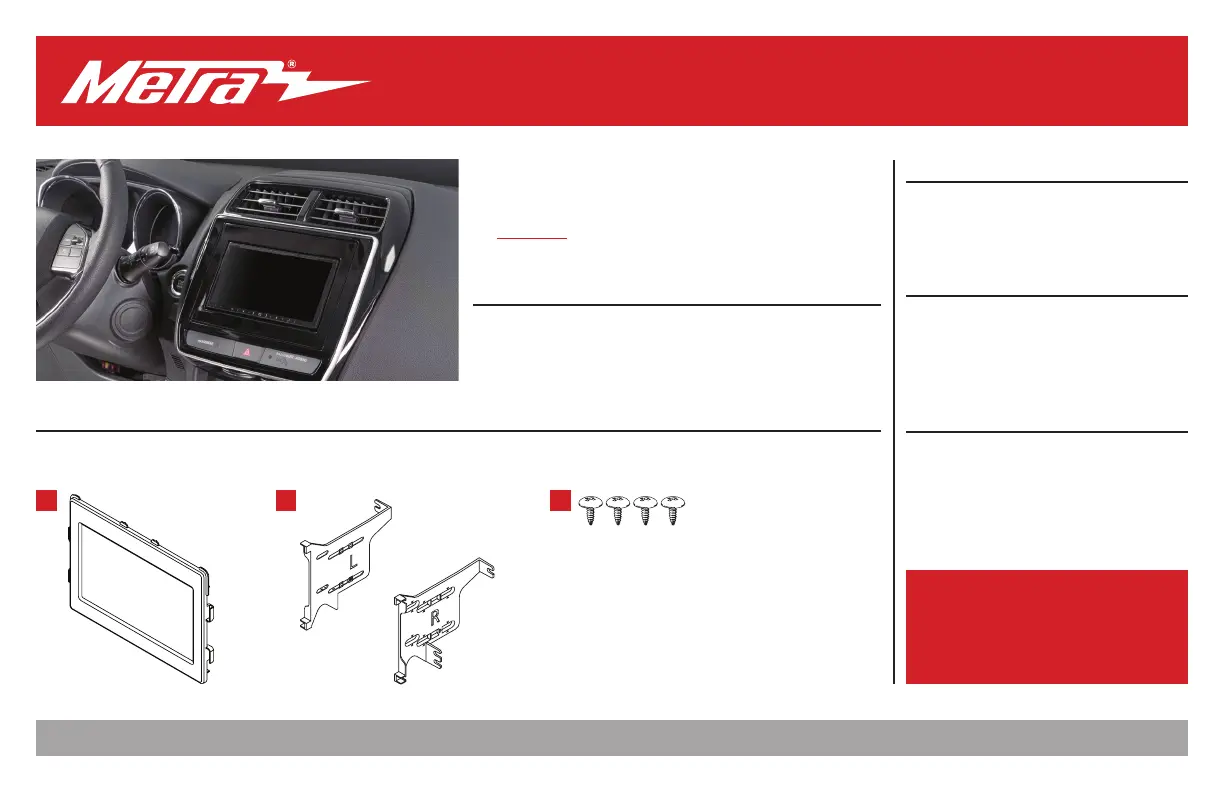

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/11/24 INST95-7022HG
I N S TA L L AT I O N I N S T R U C T I O N S
95-7022HG
Attention: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections are
secure before cycling the ignition to test
this product.
KIT FEATURES
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) #8 x 3/8" Phillips screws (4)
TOOLS REQUIRED
• Panel removal tool
• Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Assembly .......................................................... 3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness:
Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter: Not required
A C
Mitsubishi Outlander Sport 2020-up
With factory 8.0” screen Smartphone-Link Display Audio (SDA)
*Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
B
ISO DDIN radio provision
Painted high-gloss black
386.257.1187
|
MetraOnline.com
2
1. Using the panel removal tool, gently
unsnap the radio trim panel. (Figure A)
2. Remove (4) screws and remove the
factory radio. (Figure B)
Continue to Kit Assembly
(Figure B) (Figure A)
DASH DISASSEMBLY
REV. 7/11/2024 INST95-7022HG 3
1. radio brackets radio Attach the to the
trim panel using the (4) #8 x 3/8"
Phillips screws provided. (Figure A)
2. Slide the radio into the completed
assembly, and then secure it to the
assembly using screws supplied with
the radio. (Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS.
4. Reconnect the negative battery terminal
and test the radio for proper operation.
5. Reassemble the dash in reverse order of
disassembly.
(Figure A) (Figure B)
KIT ASSEMBLY
