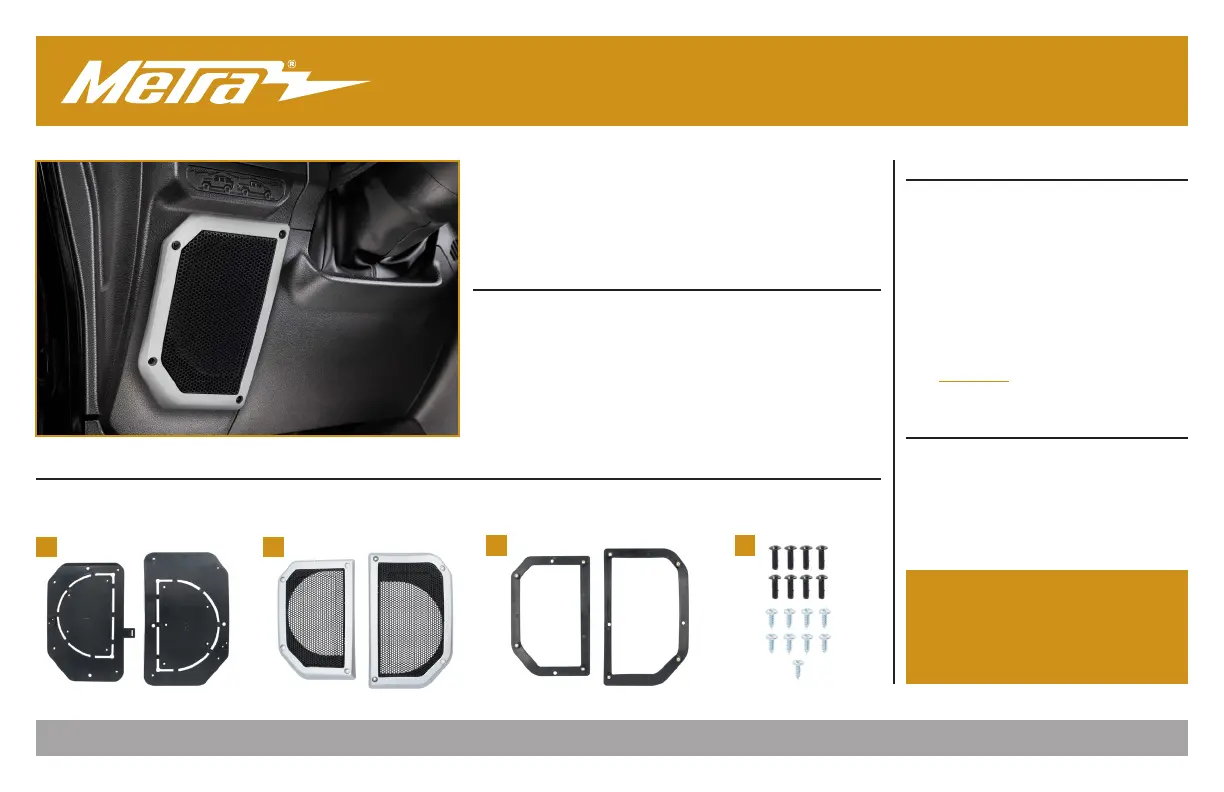

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/8/24 INSTJP-1020
I N S TA L L AT I O N I N S T R U C T I O N S
JP-1020
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• Driver and passenger specific lower dash grilles
• Cut templates and hardware
• ABS injection molded, silver painted surround
• Metal stamped grille insert
• Use with OE or pair with JP-1014 speaker pods
• 1 Year warranty from defects
KIT COMPONENTS
• A) Template (left & right) • B) Cut-in grilles (left & right) • C) Backing plates (left & right) • D) Installation hardware
TOOLS REQUIRED
• Panel removal tool
• Phillips screwdriver
• 7mm & 8mm socket
• 2.5mm Allen key
• 1/4" Drill bit
• Utility knife
• Oscillating saw or
other cutting device
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Driver Side Disassembly 4 ...................................
Passenger Side Disassembly 5 ............................
Cutting Instructions
Driver Side Cutting 6-8 ........................................
Passenger Side Cutting................................ 9-11
Jeep 2024-Up Wrangler (JL)
Jeep 2024-Up Gladiator (JT)
Lower Dash Speaker Grille Kit
Visit for more detailed information about the
MetraOnline.com
product and up-to-date vehicle specific applications
A B C D
386.257.1187
|
MetraOnline.com
2
Figure A: Remove (4) Phillips screws from the tray above the radio. Figure B: Remove the top trim piece with the panel tool.
1. Remove (4) Phillips screws from the
tray above the radio. (Figure A)
2. Remove top trim piece with the panel
tool. Disconnect harness if present.
(Figure B)
3. With the tray removed, remove the (2)
exposed Phillips screws. (Figure C)
4. With the top trim removed, remove the
(2) Phillips screws at the base of the
passenger A-pillar. (Figure D)
DASH DISASSEMBLY
Figure C: With the tray removed, remove the (2) exposed Phillips screws.
NOTE: The Dash Disassembly photos are
highlighted in yellow. Locations of screws to
be removed are approximate.
Figure D: With the top trim removed, remove the (2) Phillips screws at the
base of the passenger A-pillar.
REV. 7/8/24 INSTJP-1020 3
DASH DISASSEMBLY
CONT
Figure E
5. Remove the cover on the inside of the
passenger grab handle and remove the
(3) Phillips screws behind the handle.
(Figure E)
6.
Using a panel tool, pry the trim panel from
the start button to the AC controls and
over to the passenger handle. (Figure F)
Unplug the START button and AC controls.
7. Remove the (1) Phillips screw and (2)
8mm bolts on the remaining handle
assembly.
(Figure G)
NOTE: The Dash Disassembly photos are highlighted in yellow. Locations of screws to be
removed are approximate.
Figure H: Remove the (5) Phillips screws along the top of the radio screen and over the instrument cluster.
Figure G : Remove the trim panel , then the (1) Phillips screw and (2) 8 mm bolts
Location of trim panel to remove.
See detail in Figure G.
8. Remove the (5) Phillips screws along the top of the radio screen and over the instrument cluster.
(Figure H)
9.
Using a panel tool, pry the clips holding the radio in place. Unplug the (2) harnesses from the radio.
Continue to Driver Side Disassembly
Figure F
