VBD 592-2 (09.13)
Troll Standard

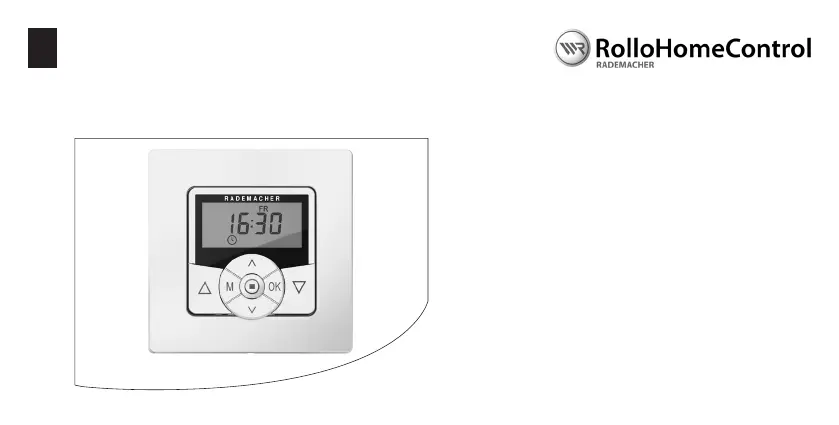

Operating and Assembly Manual for 50mm Switch Range
Item No:
3650 03 12 (ultra-white)
3650 03 22 (aluminium)
EN
2
iEN
Dear Customer,
These instructions...
...describe how to install, connect the electrical system and
operate your . Troll Standard
Before you begin, please read these instructions
through completely and follow all the safety
instructions.
Please store these instructions in a safe place and pass them on
to any future owners.
Damage resulting from non-compliance with these instructions
and safety instructions will void the guarantee. We assume no
liability for any resulting damage.
With your purchase of a , you have chosen a Troll Standard
quality product manufactured by RADEMACHER. Thank you for
the trust you have placed in us.
The has been designed in order to provide Troll Standard
optimal convenience and operability as well as to ensure solidity
and durability. Having applied uncompromising quality standards
and thorough testing, we are proud to be able to present you this
innovative product.
It’s brought to you by all the
highly-qualied personnel here at
RADEMACHER.
3
iEN
Table of Contents
1. Scope of delivery / general view ..........................4
2. The key functions .................................................5
3. Display symbol legend .........................................6
4. Menu overview ....................................................7
5. Key to symbols ....................................................8
6. General safety information ..................................9
7. Proper use .........................................................10
8. Improper use .....................................................10
9. Brief description ................................................11
9.1 Compatible switch ranges. .......................12
10. Overview of features ..........................................13
11. Important information prior to electrical
installation and mounting .................................14
12. Safety instructions for electrical connection ......16
13. Electrical connection of the Troll Standard .........17
14. Assembly ...........................................................18
15. Brief description of the standard display
and main menu .................................................19
15.1 Opening and closing the menus
(example: activating the
random function).....................................20
16. Initial commissioning with the help of the
installation wizard .............................................21
17. Manual operation ..............................................23
18. Memory function - accepting the current time
as switching time ..............................................24
19. Menu overview / main menu .............................25
19.1 [ AUTO ] Automatic mode;
brief description.......................................26
19.2 Menu 1- Automatic mode on / o............27
19.3 Switching times (opening and
closing times) [ / ];
brief description.......................................28
19.4 Menu 2 - Conguration of opening
and closing times [ / ]. .......................29
19.5 Menu 6 - Conguring the random
function [ ] .........................................30
20. Menu 9 - System settings [ ];
brief description ................................................31
20.1 Menu 9.1 - Set time and date [ ] .......32
20.2 Select Menu 9.5 - Switching time
programme [ ] ..................................33
20.3 Menu 9.6 - Conguration of
blockage detection [ ] ........................34
20.4 Menu 9.8.1 - Automatic summer/winter
changeover on/o ...................................37
20.5 Menu 9.8.2 - Set display contrast .............38
20.6 Menu 9.8.4 - Set clock mode ....................38
20.7 Menu 9.8.5 - Switch key lock on/o .........39
20.8 Menu 9.8.7 - Switch reversal of
rotation direction on/o ..........................40
20.9 Menu 9.8.0 - Display software version .....41
21. Software reset (restore factory settings). ...........42
22. Hardware reset ..................................................43
23. Dismantling .......................................................44
24. CE Mark and EC Conformity ................................45
25. Technical specications and factory settings ......46
26. Warranty conditions ..........................................47
