User Guide
EXTC-SA
EFFECTS REAMPER
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com
Radial® EXTC-SA Effects Reamper®
Table of Contents Page ......................................................
Feature Set 1 ....................................................................
Overview 2 ........................................................................
Getting Started 3 ...............................................................
Specications ................................................................. 4
Block Diagram ................................................................ 5
Warranty ............................................................Back cover
www.radialeng.com
Congratulations and thank you for purchasing the Radial EXTC-SA Effects Reamper®.
The EXTC-SA is a unique interface designed to allow you to introduce high impedance guitar
pedals and effects into the recording world with relative ease while keeping the signal quiet.
With the EXTC, you are set to add wah to a keyboard track, tube distortion to a vocal track or
an envelope lter to the snare drum track. The EXTC is all about creativity and making sure
your recording stands out from the rest.
This manual describes connecting and operating your EXTC-SA. To take full advantage of
the unique features that have been incorporated into the EXTC-SA, please read through this
guide before using it. This user guide will give you a broader sense of the units capabilities.
If you have questions that are not covered in this manual, please visit the FAQ section on
our website. This is where we post answers to questions from users. If you cannot nd the
answer to your question please feel free to send an email to info@radialeng.com and we will
do our very best to respond as quickly as possible.
The Radial EXTC-SA Effects Reamper opens creative options to your recording world.
True to the Music
®
Radial Engineering Ltd. EXTC-SA

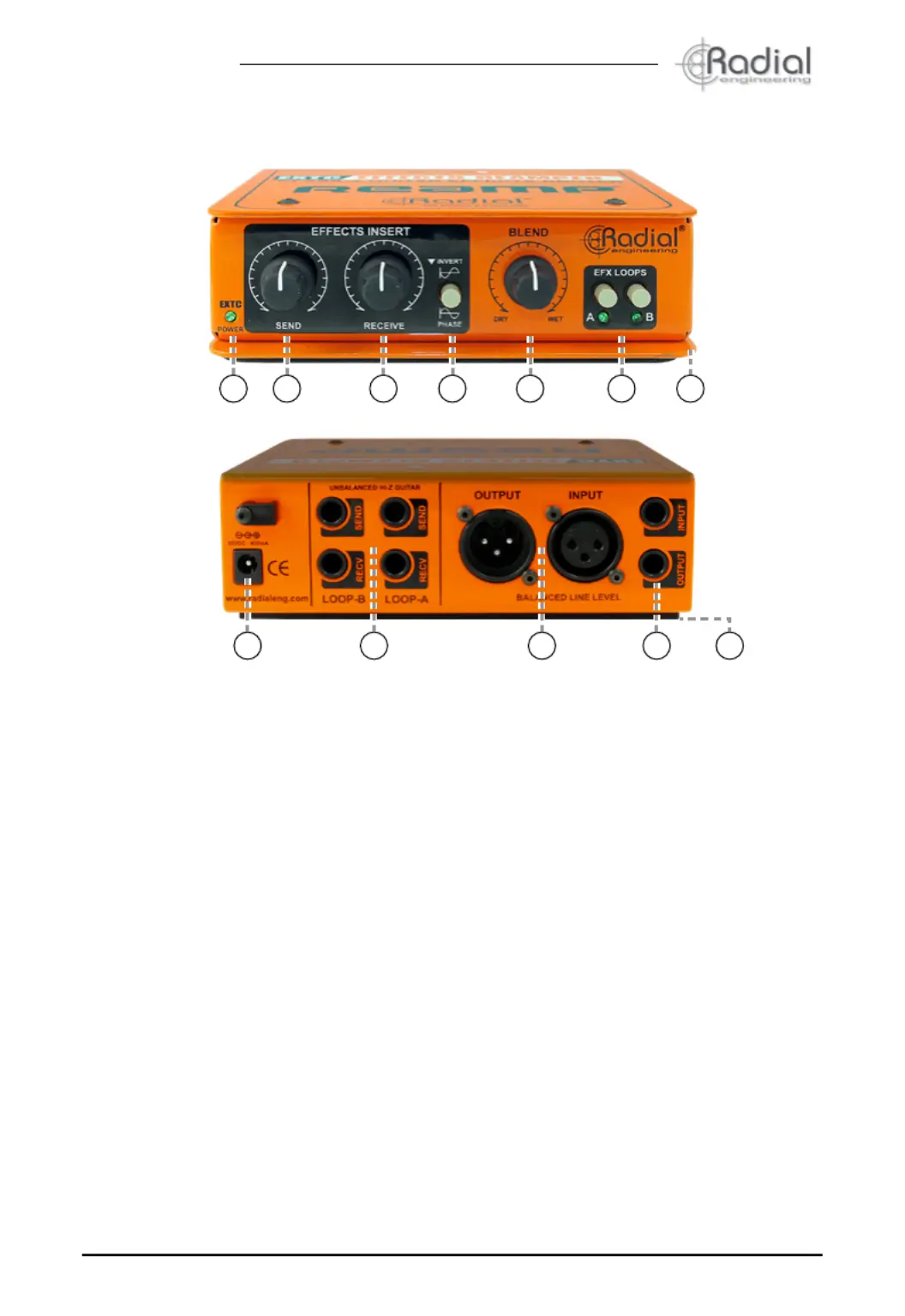

1. POWER LED - Indicates when the unit is
powered on.
2. SEND LEVEL - Used to adjust the output
level going to the pedals and optimize signal-
to-noise for best performance.
3. RECEIVE LEVEL - Used to set the effects
loop return level and further optimize signal-
to-noise.
4. 180º POLARITY INVERT - Lets you adjust
the polarity of the wet signal path and bring it
into phase with the dry signal when they are
being mixed together.
5. BLEND - Lets you adjust the wet-dry mix
between the original unprocessed signal and
the EXTC-SA effects loops.
6. LOOPS ON/OFF - Turns the A & B loops on
and off. An LED indicator illuminates when a
loop is active.
1 2 3
9
4
10 12
5
11
6 7
8
1
FEATURE SET
7. BOOKEND DESIGN - Enclosure design
creates a protective zone around the front
controls.
8. POWER ADAPTER - Connection for the
included power supply with handy cable
clamp to prevent accidental disconnection.
9. ¼” SEND and RECV - Separate LOOP-A &
B send and receive jacks used to connect
guitar pedals to the EXTC-SA. LOOP-A is
transformer isolated to eliminate hum and
buzz caused by ground loops.
10. XLR I/O - Balanced line-level input and output
jacks for connection to profesional audio
devices.
11. ¼” TRS I/O - Balanced/unbalanced line-level
input and output phone jacks.
12. FULL BOTTOM PAD - Won’t scratch, keeps
the EXTC-SA in one place and provides
electrical isolation.
