Side 1/16

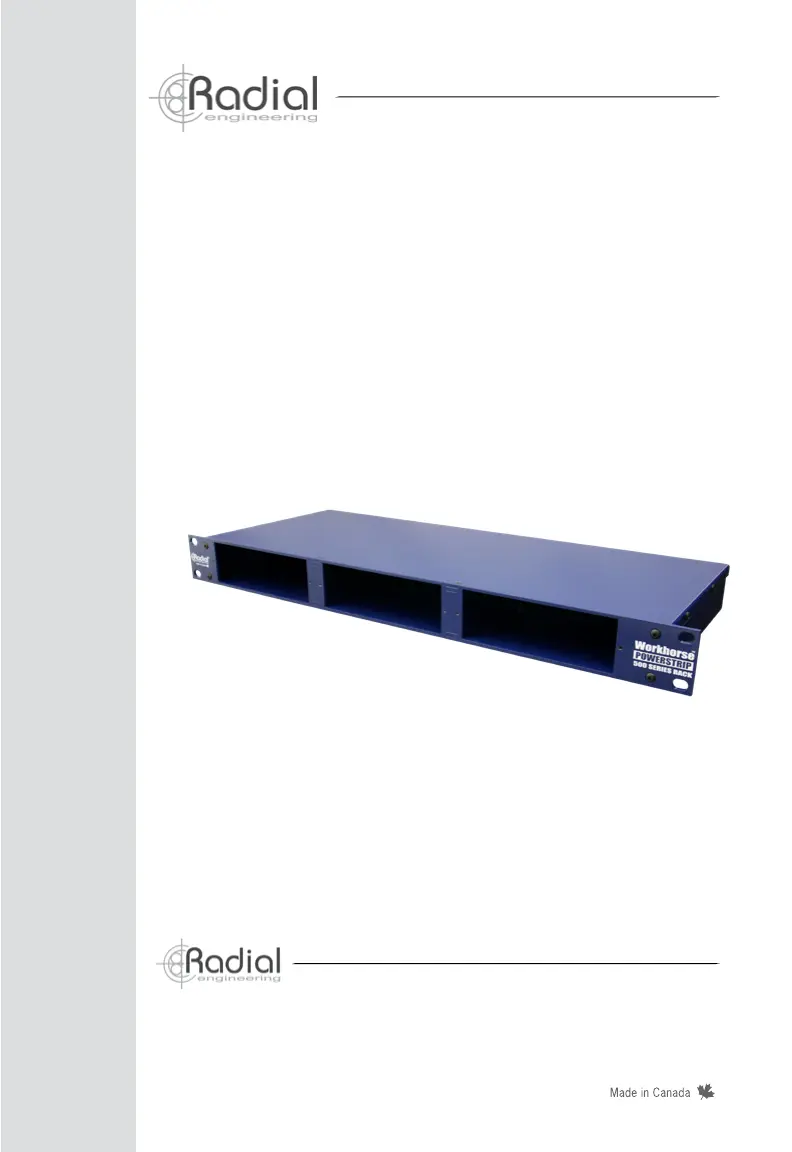

www.radialeng.com
®
True to the Music
®
User Guide
Workhorse
Powerstrip
500 Series Rack
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave, Port Coquitlam, BC V3C 1S9
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com
!
IMPORTANT SAFETY & USER NOTICE - FOR PROFESSIONAL USE
The Radial® Workhorse Powerstrip is specically designed for use
by qualied professional audio engineers. The open frame design is
not intended for use by consumers or those unfamiliar with this format.
Even though the current and voltage levels are relatively low, we
recommend that all slots be lled with a module or covers be placed
over unlled slots. This will help protect you from electrical shock.
The Powerstrip rack frame is designed to be used with 500 series or
what are commonly known as Lunchbox™ modules. The Workhorse
Powerstrip has been designed following the framework as outlined by
the VPR Alliance as described on the API™ website. Although some
manufacturers build modules that are not VPR compliant, they may in fact
work with the Powerstrip. Please consult those specic manufacturers for
details regarding their compatibility. The Radial Workhorse Open Source
Document outlines the required technical specications for manufacturers
that intend to have their modules used in a Workhorse or Powerstrip
frame. Compatibility of any modules other than a module made by Radial
Engineering Ltd. is the sole responsibility of the user. Please read the
Limited Radial Warranty for details. There are no replacement or user
serviceable parts inside.
!
SAFETY NOTICE - NO HOT SWAPPING OF MODULES
Hot Swapping, or exchanging modules while the power is on is not covered
under the Radial Limited Warranty. The user is responsible for any damage
to the Workhorse Powerstrip or module arising out of hot swapping and the
user shall save Radial Engineering Ltd. harmless should any damage occur.
Please consult the Radial Limited Warranty for further details.
Radial Workhorse Powerstrip
500 Series Power Rack
™ ™
®
Table of Contents Page ..............................................
Feature Set Overview 1 ......................................................................
Introduction & Basic Functions 3 ........................................................
Omniport 5 ..........................................................................................
Power Supply Capacity 6 ...................................................................
Sliding Modules In And Out 7 .............................................................
Signal Flow And Levels 8 ..................................................................
Using The Powerstrip ......................................................................9
Specications ................................................................................11
Radial Limited Warranty Back Cover .................................................
Congratulations and thank you for purchasing the Radial Workhorse
Powerstrip, an innovative three module card frame designed for the
500 series modular format. This guide describes how to approach using
the Powerstrip, and how to install modules safely. We recommend that
you take a few minutes to read it in order to familiarize yourself with
the many innovative features that are built in.
To make this guide as easy to understand as possible, we have divided
it into several sections. It begins with an overview, then descriptions of
each function, ending with some real world applications. Should you
have any questions, comments or concerns not covered in these pages,
we invite you to log onto the Radial web site at www.radialeng.com
and visit the Powerstrip FAQ section. This is where we post the latest
updates and answers from users. If you do not nd what you need,
feel free to send us an email at and we will do info@radialeng.com
our best to answer your question as quickly as possible.
Now get ready to bring the fun & excitement of old school analog into
your signal path.
