GUITAR AMP SELECTOR
Radial Engineering Ltd.
#1165 - 1845 Kingsway Ave, Port Coquitlam BC V3C 1S9
Tel: 604-942-1001 • Fax: 604-942-1010 • Email: info@radialeng.com
Radial Engineering Ltd. Headlight™ User Guide
1

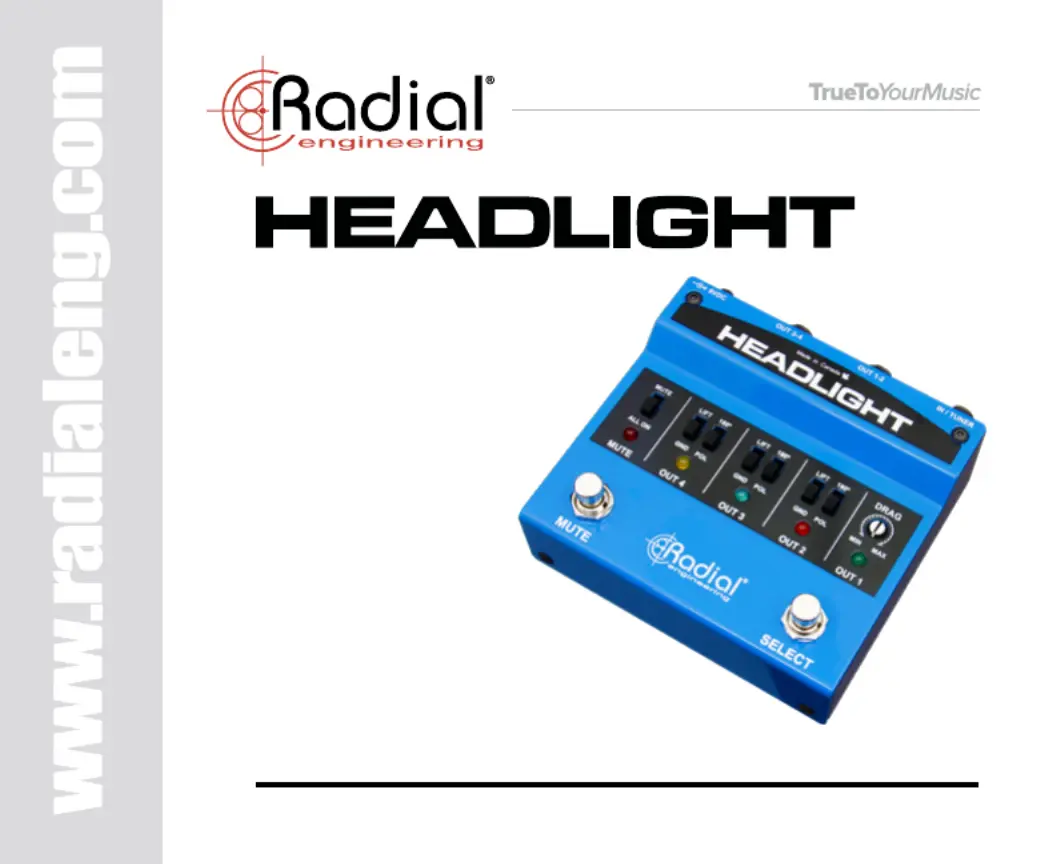

HEADLIGHT
GUITAR AMP SELECTOR
Introduction 1 .......................................................................................
Features 2-3 ........................................................................................
Making Connections 4-5 ......................................................................
Connecting a Tuner .......................................................................... 6
All Amps On ...................................................................................... 7
Lifting the Ground 8 .............................................................................
Adjusting the Phase.......................................................................... 9
Setups 10-11 .......................................................................................
Specications ................................................................................. 12
Block Diagram 13 ................................................................................
Radial Limited Warranty Back Cover ...................................................
The Radial Headlightis a compact amp selector that lets you connect your guitar and send the
signal out to as many as four amps at once. The cool thing here is that unlike other switchers that
employ dedicated footswitches to turn on or off amps, the Headlight features a single footswitch that
sequentially rotates through the outputs depending on how many amps are connected. This allows
the Headlight to be used as a typical ABY with two outputs, as a 3-output ABC switcher for clean
rhythm and lead amps or switch between four amps to nd the ultimate tone in the studio.
The second footswitch features two modes whereby it can be used to mute all of the outputs for quiet
on-stage tuning or it can be used to turn all of the amps on at once. This opens the door to greater
creative uses on stage and in the studio alike.
9VDC
Made in Canada
INPUTTUNER
OUT-2 OUT-1
OUT-4 OUT-3
Radial Engineering Ltd. Headlight™ User Guide
2
FEATURES
1. INPUT: ¼input used to connect a
guitar or bass to the Headlight.
2. TUNER: Dedicated separately
buffered ¼” output is always-on,
connects to tuner.
3. OUTPUT-1: Default output and
should always be used as it
provides a safe ground path to the
instrument.
4. OUTPUT-2, 3 & 4: Isolated ¼”
outputs used to send signal to
different amps or effects.
5. 9VDC: Power jack for typical 9V
supply or pedalboard power brick
(not included).
6. CLAMP: Ties down the power
supply to eliminate accidental
disconnection.
1 3 6
2 4 5
