Side 1/20

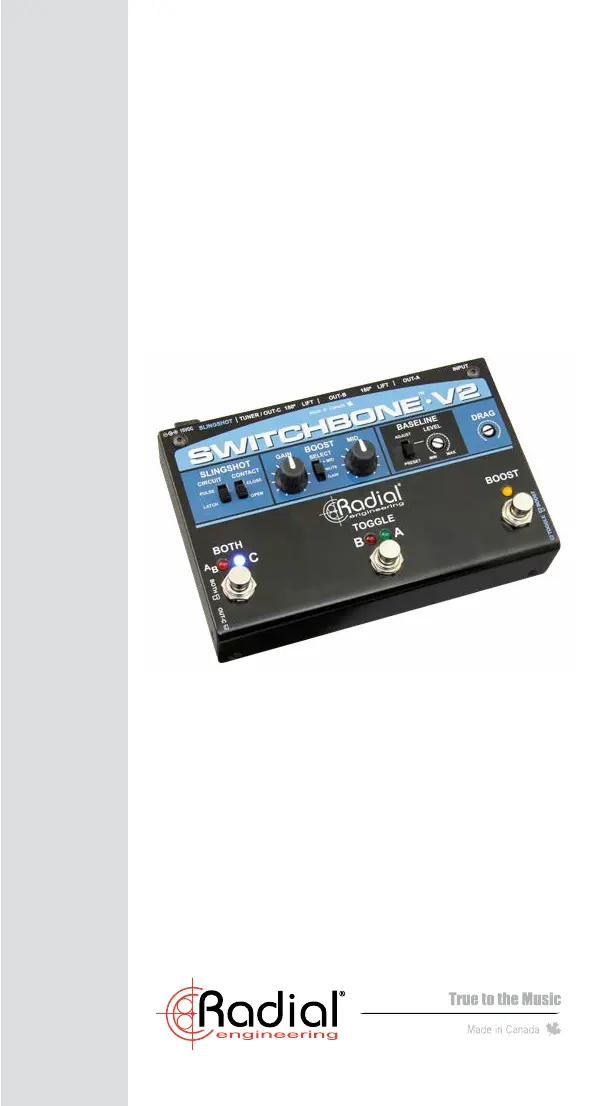

USER GUIDE
SWITCHBONE • V2
www.radialeng.com
WARNING
Only connect electrical equipment that is properly grounded with a 3-prong AC plug.
Older amps with 2-prong plugs should be serviced before using them with any amp
switcher. An improperly grounded amp can be a very dangerous thing and never
should be used in multi-amp setups.
Radial Engineering takes no responsibility for how the Switchbone V2 is connected or
used. It is the users full responsibility to ensure that proper electrical connections are
maintained on all equipment connected to the Switchbone V2 and that proper building
electrical codes have been followed wherever the Switchbone V2 is used.
Note that damage to the Switchbone V2 or other connected equipment caused by
improper wiring or improperly grounded equipment is not covered under the warranty.
Switchbone V2Radial Engineering Ltd.
Table of Contents Page
Introduction 1 .............................................................................
Features and Functions 2-3 .......................................................
Overview 4-5 .............................................................................
Making Connections 6 ...............................................................
Standard ABY Setup............................................................7-8
Adding a Tuner or Third Amp............................................... 8-9
Baseline Buffer 10 .....................................................................
Power Booster 10-11 .................................................................
Slingshot Remote 12 .................................................................
Slingshot Internal Jumpers 13 ...................................................
Block Diagram 14-15 .................................................................
Safety Information 16 ................................................................
Specications ....................................................................... 17
Warranty Back Cover .................................................................
Thank you for purchasing the Radial Switchbone V2™. We are
condent that once you get to know the extended feature set,
you will come to appreciate the power and control that is now
underfoot! This being said, the Switchbone V2 is both easy
to use, yet featured-packed. So before you start plugging in,
please take the time to read through this manual. Not only will
it help you get the most out of it, it will save you time later when
trying to gure out new setups.
After your reading session, if you nd yourself wondering about
features that are not well explained or simply have a question,
visit Radial's web site and visit the FAQ page. This is where
we post questions from users and updates. You can also post
a question and we will do our best to reply in short order. Now
get ready to enjoy what is likely the most powerful, exible and
cleanest sounding switcher you have ever tried.
RADIAL SWITCHBONE • V2
USER GUIDE
1
