Side 1/16

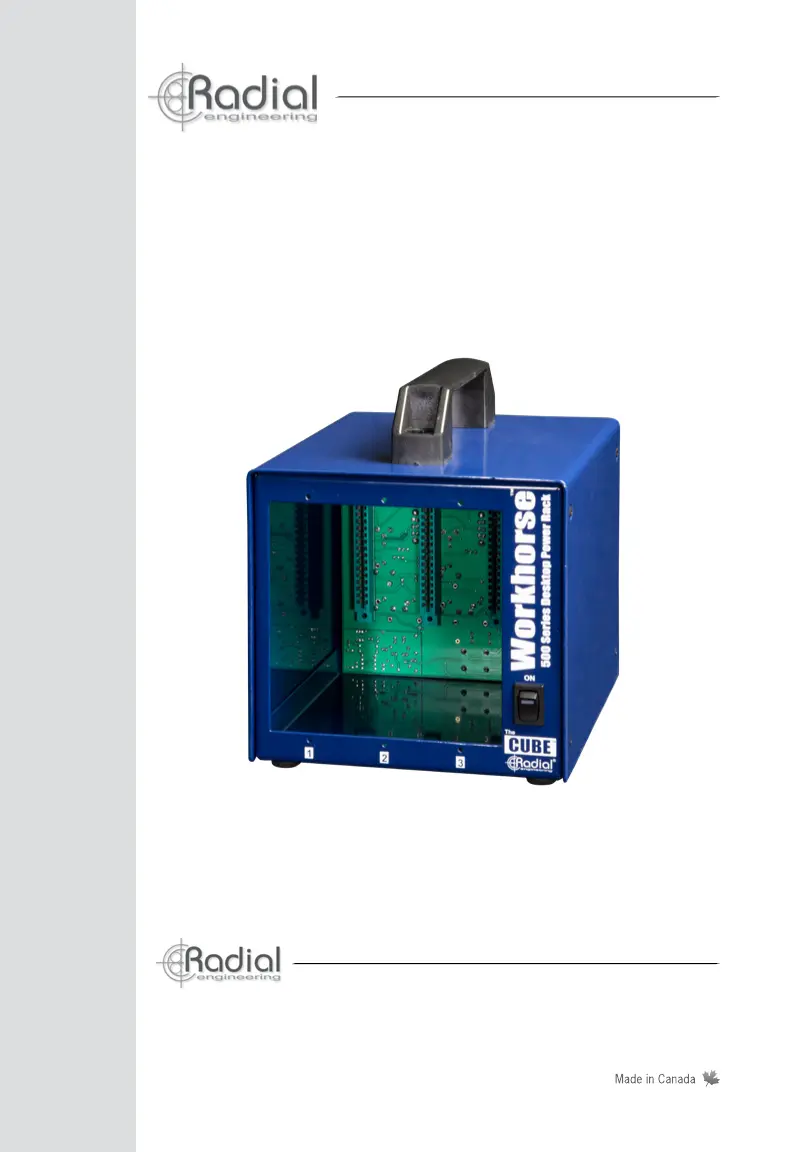

www.radialeng.com
®
True to the Music
®
User Guide
Workhorse
Cube
500 Series Power Rack
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
tel: 604-942-1001 • fax: 604-942-1010
info@radialeng.com • www.radialeng.com
!
IMPORTANT SAFETY & USER NOTICE - FOR PROFESSIONAL USE
The Radial Workhorse Cube is specically designed for use by
qualied professional audio engineers. The open frame design is not
intended for use by consumers or those unfamiliar with this format.
Even though the current and voltage levels are relatively low, we
recommend that all slots be lled with a module or covers be placed
over unlled slots. This will help protect you from electrical shock.
The Cuberack frame is designed to be used with 500 series or what
are commonly known as Lunchbox modules. The Workhorse has
been designed following the framework as outlined by the VPR Alliance
as described on the API™ website. Although some manufacturers build
modules that are not VPR compliant, they may in fact work with the Cube.
Please consult those specic manufacturers for details regarding their
compatibility. The Radial Workhorse Open Source Document outlines the
required technical specications for manufacturers that intend to have
their modules used in a Workhorse or Cube frame. Compatibility of any
modules other than a module made by Radial Engineering Ltd. is the sole
responsibility of the user. Please read the Limited Radial Warranty for
details. There are no replacement or user serviceable parts inside.
!
SAFETY NOTICE - NO HOT SWAPPING OF MODULES
Hot Swapping, or exchanging modules while the power is on is not covered
under the Radial Limited Warranty. The user is responsible for any damage to
the Workhorse Cube or module arising out of hot swapping and the user shall
save Radial Engineering Ltd. harmless should any damage occur. Please
consult the Radial Limited Warranty for further details.
Radial Workhorse Cube
500 Series Power Rack
®
Table of Contents Page
Feature set overview 1 ........................................................................................................
Introduction & basic functions........................................................................................... 3
Omniport 5 ...........................................................................................................................
Power supply capacity 6 ......................................................................................................
Installing the Cube 7 ...........................................................................................................
Signal ow and levels ...................................................................................................... 8
Using the Cube 9-10 ............................................................................................................
Radial Limited Warranty Back Cover ...................................................................................
Congratulations and thank you for purchasing the Radial Workhorse Cube, an innovative
three module card frame designed to bring the excitement of the 500 series modular format
to the desktop. This manual describes how to approach using The Cube and how to install
modules. We recommend that you take a few minutes to read through it in order to familiarize
yourself with the many innovative features that are built in.
To make the manual as easy to understand as possible, we have divided it into several sections.
It begins with an overview, then descriptions of each function, ending with some real world
applications. Should you have any questions, comments or concerns not covered in these
pages, we invite you to log onto the Radial web site at www.radialeng.com and visit the Cube
FAQ section. This is where we post the latest updates and answers from users. If you do not
nd what you need, feel free to send us an email at info@radialeng.com and we will do our
best to answer your question as quickly as possible.
Now get ready to bring the fun & excitement of old school analog into your signal path.
