Side 1/14

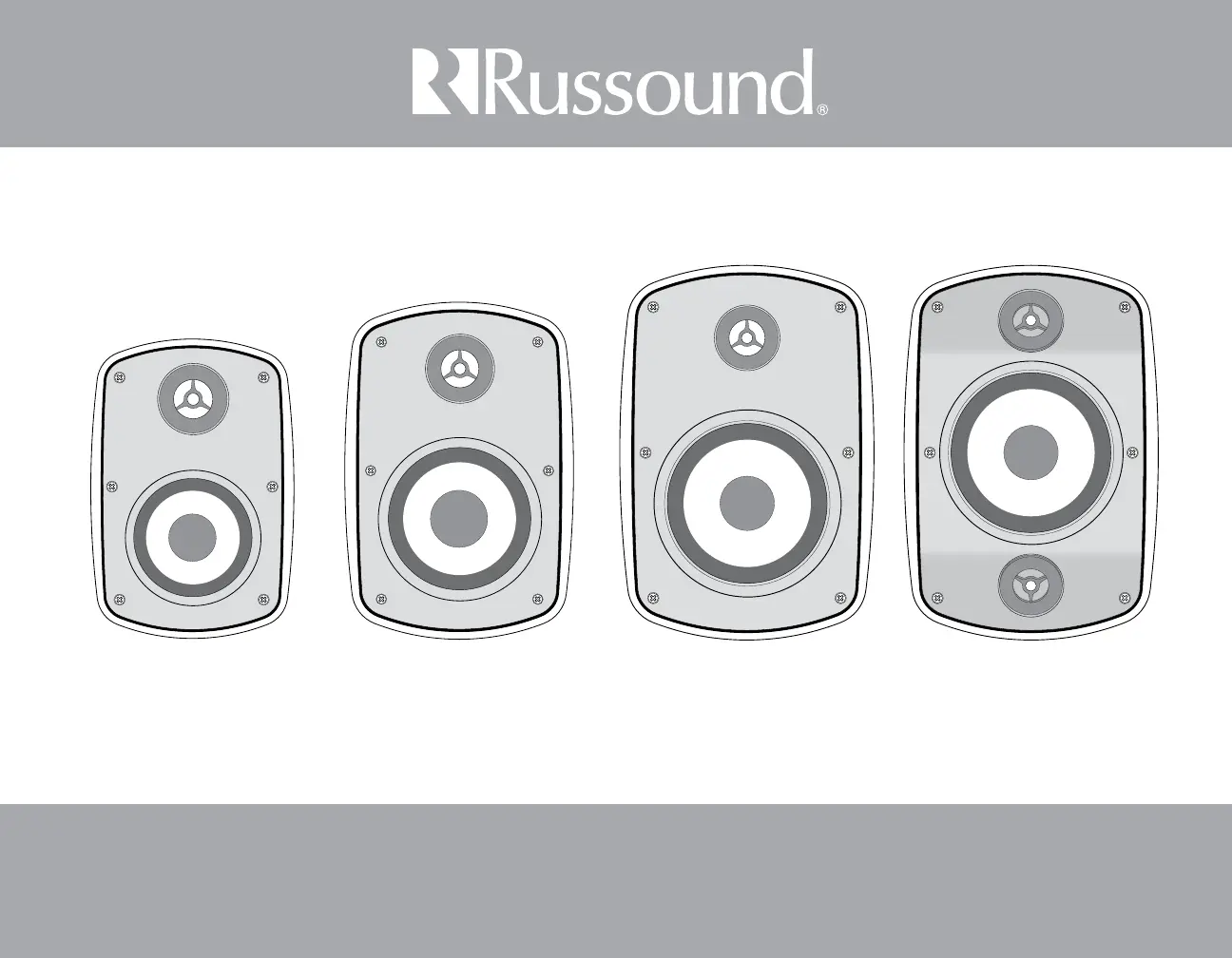

Acclaim™ 5 Series OutBack
Outdoor Loudspeaker
Installation Manual
2 Russound Acclaim OutBack Loudspeaker Installation Manual Rev. 1
INTRODUCTION
Introduction
Thank you for selecting the Russound Acclaim 5 Series Outdoor Speakers.
Like all Russound speakers, they combine acoustic technology with durability
and will provide years of musical enjoyment.
The Acclaim 5 Series line provides solutions for background music and
dedicated music listening. They combine premium acoustic materials with
advanced drivers to deliver exceptional performance in every application.
A key benet to using these speakers is the high-eciency design, which
means less amplication power is needed - less power does not mean quiet!
The speaker comes with two installation options: a free-standing base and
a bracket mount. The base attaches to one end of the speaker and provides
a stable vertical placement option for shelf or table. The bracket mount
accommodates at surface and corner locations, plus the bracket accepts
U-bolts for attaching the speaker to a pole. Once the bracket is installed, the
speaker slips into slots on the bracket so you don’t have to hold the speaker
in place while securing it. The bracket and speaker have knurls for secure
alignment to the desired angle.
Designed and built to withstand the rigors of outdoor environments, the 5
Series outdoor speakers will provide years of trouble-free service. They work
in a wide range of temperatures and be unaected by extremes of humidity.
A corrosion-resistant aluminum grille and bracket coupled with the speaker’s
rugged environmental design assures durability in any kind of weather. Sealed
enclosure oers greater durability against the environment's rigors.
3 Rev. 1 Russound Acclaim OutBack Loudspeaker Installation Manual
Speaker
Mounting bracket
End cap Mounting knob Grille
Bookshelf foot option
Speaker assembly
The bracket has screw slots to accommodate both wall and pole installation
options. The speaker sits in the speaker bracket's "C" openings and is pivoted
into place and secured with the mounting knobs. End caps provide a cosmetic
covering over the bracket's attach points.
An included bookshelf foot option mounts in place of the bracket for an
attractive upright shelf installation for a speaker pair.
SPEAKER ASSEMBLY
Painting the speaker
The speaker mounting bracket, enclosure, end caps, and grille can be
painted. If you paint the speaker, do not get paint on the speaker drivers. Also
be sure to minimize paint buildup so as not to clog the grille holes.
1. Gently pull o the speaker grille, making sure not to distort it.
2. Mask the speaker terminals and bae (the area on the front of the
enclosure that houses the drivers).
3. Paint the bracket, enclosure, end caps, and grille separately. Spraying is
ideal, but if you can’t spray the paint, a roller with a short or medium nap
will work better than a brush. Apply one or two light coats.
4. While the paint is still wet, clear any clogged holes in the grille with bursts
of compressed air.
5. After the paint has thoroughly dried, remove the masking. Gently press
the grille into place on the speaker, using even pressure around the edge.
