Speaker wall mount
AC 3500 SM
... makes you happy
Proper use
Only use the wall mount as described in these operating in-
structions. Any other use will be deemed as not in accordance
with the instructions and may lead to damage of property or
even persons. The manufacturer accepts no liability for dam-
age caused by use not in accordance with the
instructions. The
product is intended for private use.
Before mounting the wall mount, please read the
safety notes and operating instructions carefully. This
is the only way to use the product safely and reliably.
Keep the operating instructions safe and pass them on to
anyone who may own the unit after you.
Notice
The information in this document may change without prior
notice and in no way constitutes any liability on the part of
Lautsprecher Teufel GmbH. No part of these instructions may
be reproduced in any form or be broadcasted in any way elec-
tronically, mechanically, by photocopy or recording without the
written permission of Lautsprecher Teufel GmbH.
Original packaging
If you wish to exercise your eight-week right of return, we ask
that you be absolutely sure to hold onto the packaging. We can
only accept the return of the wall mount WITH THE ORIGINAL
PACKAGING. Empty boxes are not available!
Complaints
In case of a complaint we implicitly need your invoice number
and the serial or lot number for processing. The serial number
can be found on the back side of the device.
Many thanks for your support!
Contact
For questions, suggestions or criticism please contact our
customer service department:
Lautsprecher Teufel GmbH
Gewerbehof Buelowbogen
Buelowstrasse 66
10783 Berlin (Germany)
Phone 00800 - 200 300 40 (free of charge)
Fax: +49 (0)30 / 300 930 930
E-mail: service@teufelaudio.com
www.teufelaudio.com
Danger Danger to children!
Children can become trapped in the packing fi lm
when playing and suffocate.
• Do not allow children to play with the wall mount and the
packaging fi lm. Danger of suffocation.
• Make sure that children do not remove or pull off small
parts from the packaging (e.g. screws). They could swal-
low the parts and choke.
Caution icons
You will fi nd the following caution icons in these instructions:
High risk ! Failure to observe the warning may result
in severe personal injury or death.
=
Danger
Moderate risk ! Failure to observe the warning may
result in p roperty damage.
=
Attention
Minor risk! Points which should be observed when
handling the unit.
=
Technical Description and
Operating Instructions
General notes and information
Safety notes
Page 2
• Furthermore, please keep in mind that the vibrations
which are generated by the speaker can be transferred to
the wall by the wall mount. In case of wooden walls this
may cause distortions.
• Also note the dimensions of the speaker.
• Make sure that the installation is performed in a workman-
like manner.
• Only use mounting material which is suitable for the
composition of your walls. If you are unsure regarding the
selection, consult an expert.
• Before drilling the holes, make sure that no pipes are
located within the drilling area using a metal detector.
Danger Danger of injury/damage!
An inadequate installation location may result in
damage.
• Mount the speakers such that they can not be hit acciden-
tally and that the cables do not pose a tripping hazard. The
speakers could break off, fall down and cause personal
injury or be damaged.
• Do not mount the wall mounts near or directly above
sources of heat (e. g. heaters, ovens, other heat generating
equipment such as amplifi ers etc.).
• Avoid direct sunlight at the installation location.
• Verify the carrying capacity of the wall. Plasterboard walls
or drywalls (Rigips etc.) may give way when exposed to
excessive loads.

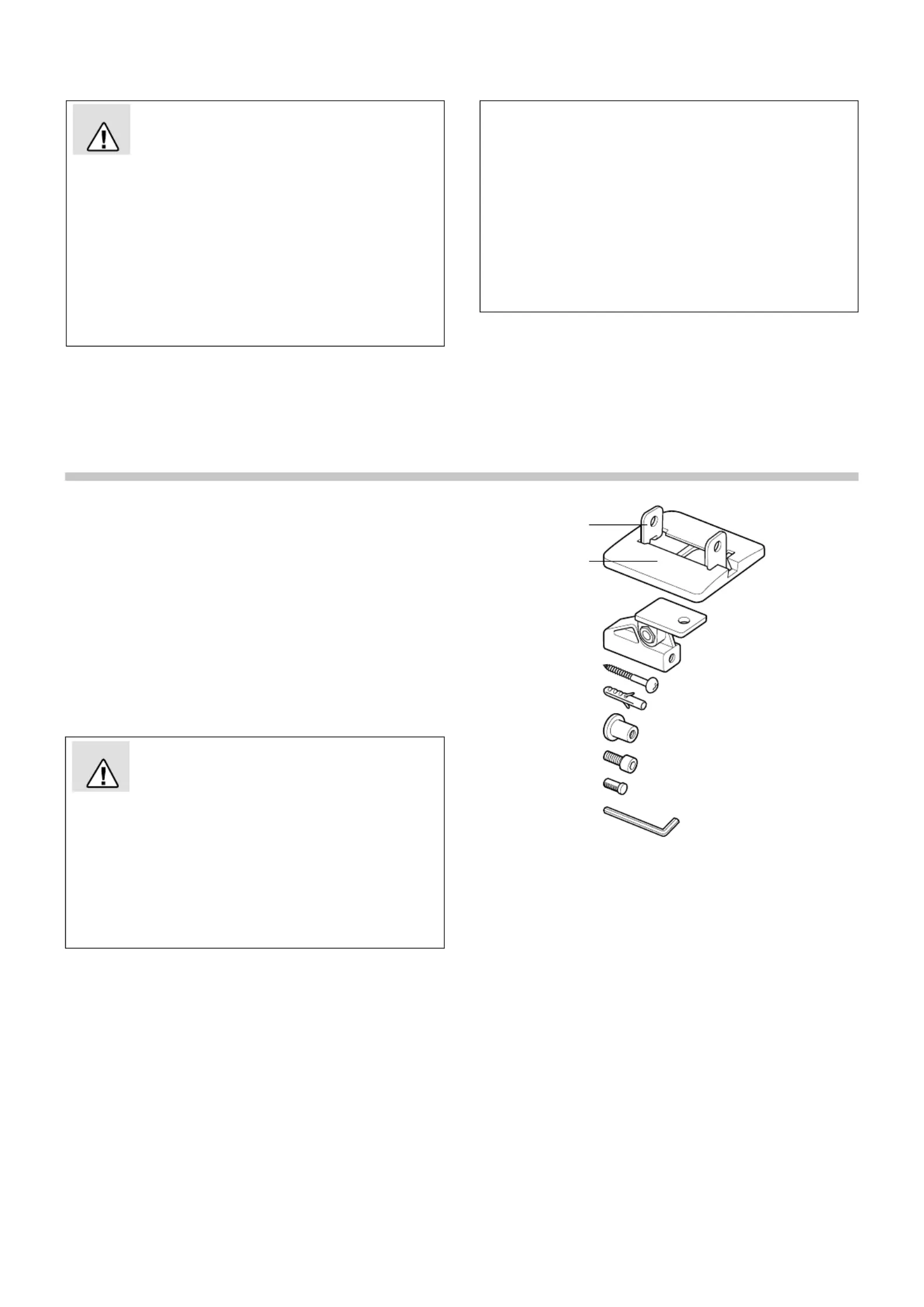

Product contents
햲 1 x base plate
햳 햲 1 x cover (put on base plate )
햴 1 x bracket
햵 4 x half round head screw
햶 4 x masonry plug
햷 1 x nut
햸 3 x screw
햹 1 x retaining bolt
햺 1 x Allen key
If the delivery is incomplete or exhibits transport damages,
please contact our service department (see page 1).
햲
햴
햳
햵
햶
햷
햸
햹
햺
Danger Mounting material
The enclosed mounting material (4 half round
head screws 햵 and 4 masonry plugs 햶) is
exclusively suitable for normal stone and concrete walls.
Lautsprecher Teufel GmbH can in no case assume any guar-
antee or warranty for the fi rm and/or permanent hold of the
enclosed mounting material. Make sure that the installation
is performed in a workmanlike manner.
If your walls are made of a material other than stone and
concrete, make sure to use mounting materials suitable for
your specifi c walls. Always consult an expert. Adhere to the
above-mentioned safety notes.
Page 3

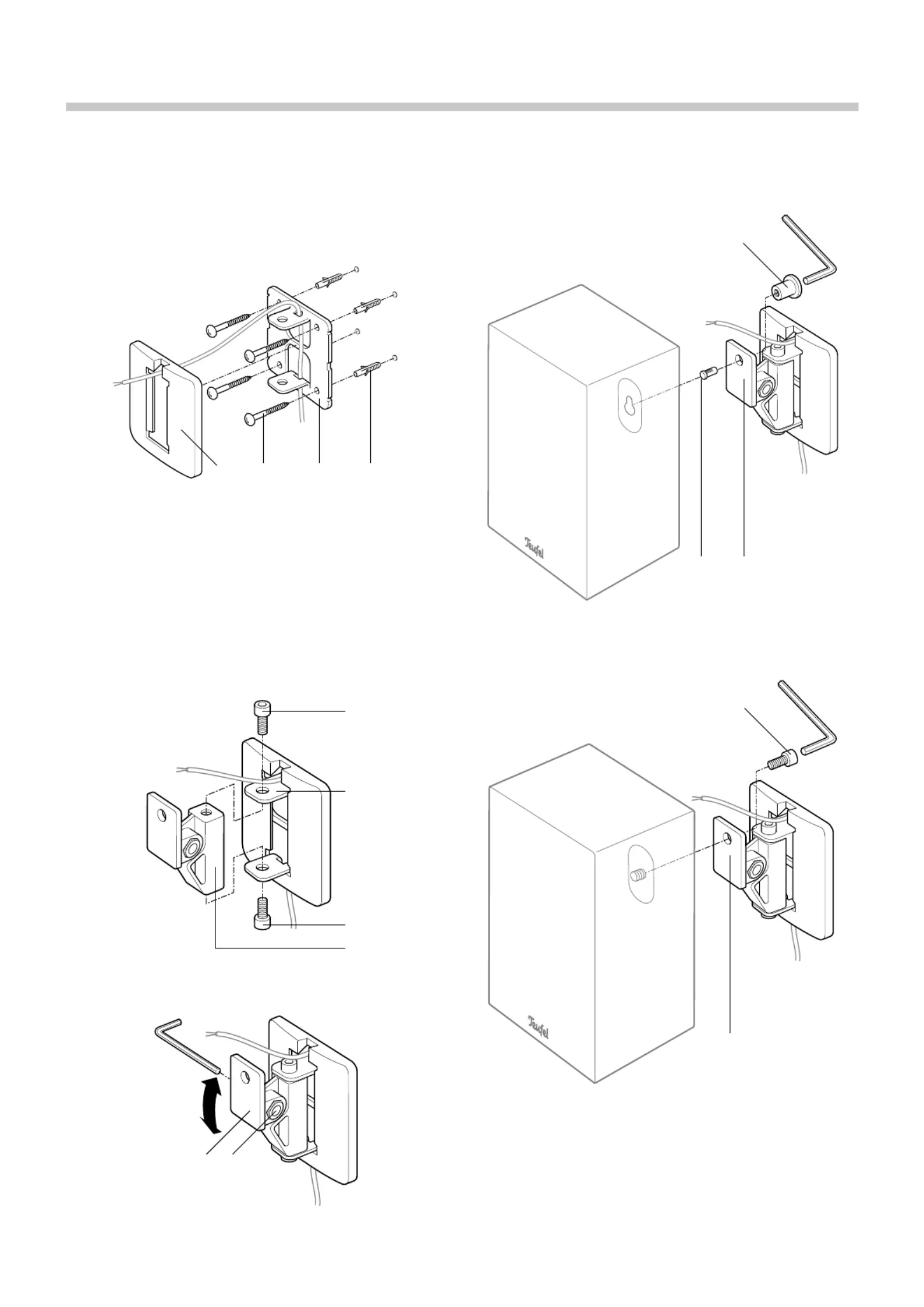

1. Remove the cover 햳 from the base plate 햲.
2. Hold the base plate 햲 against the wall at the desired loca-
tion and mark the four drill holes horizontally.
3. Drill holes with a diameter of 5 mm in the wall at the
marked positions.
4. Insert four masonry plugs 햶 in the drill holes.
5. Run the speaker cable through the holes in the base plate
햲 from below.
햳 햲햵 햶
6. Screw the base plate 햲 on the wall using four half round
head screws 햵.
7. Run the upper end of the speaker cable through the hole in
the cover .햳
8. Put the cover 햳 on the base plate 햲. In the process, the
speaker cable must be run through the notches on the front
and bottom side.
9. Insert the bracket 햴 in the base plate 햲 and screw tighten
it using two screws 햸.
If necessary, the speaker can be horizontally aligned with
the listening position later by loosening these screws.
햸
햸
햴
햲
10. If necessary, loosen the screw 햺 and change the inclina-
tion of the bracket 햴.
햺햴
11. Attach the speaker to the bracket 햴.
You have two options for this:
Speakers with key hole on the rear panel:
Insert the retaining bolt 햹 햴 in the bracket from the front and
screw it in place loosely using the nut 햷.
Carefully hang up the speaker on the retaining bolt and 햹
screw tighten it using the nut .햷
햴
햷
햹
Speakers with M6 thread on the rear panel:
Screw tighten the speaker on the bracket 햴 using the screw 햸.
햴
햸
Assembly
6
