Side 1/8
- 2 -
- 3 -

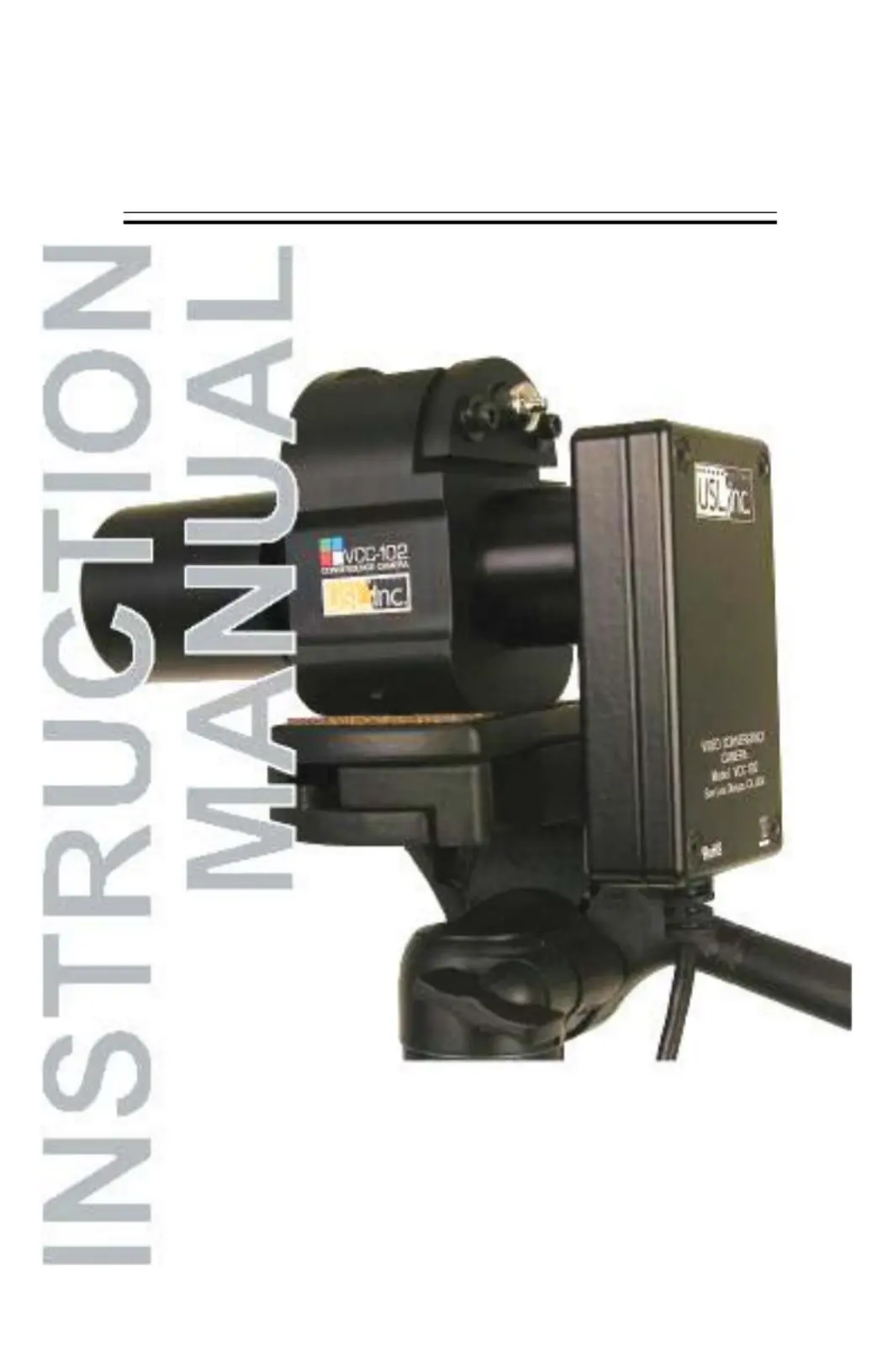

The VCC-102 Video Convergence Camera precisely images the convergence pat-
tern projected on a movie screen and displays it on a technician’s laptop. Using
this device the cinema technician can place the laptop near the video projector and
see the convergence pattern as the convergence controls are adjusted.
The VCC-102 is powered by the laptop’s USB port and is used in conjunction with
the supplied single dialog Windows application and Windows video device driver
which must be installed before obtaining video images. This application interacts
with the system imaging camera to capture and display video images at real-time

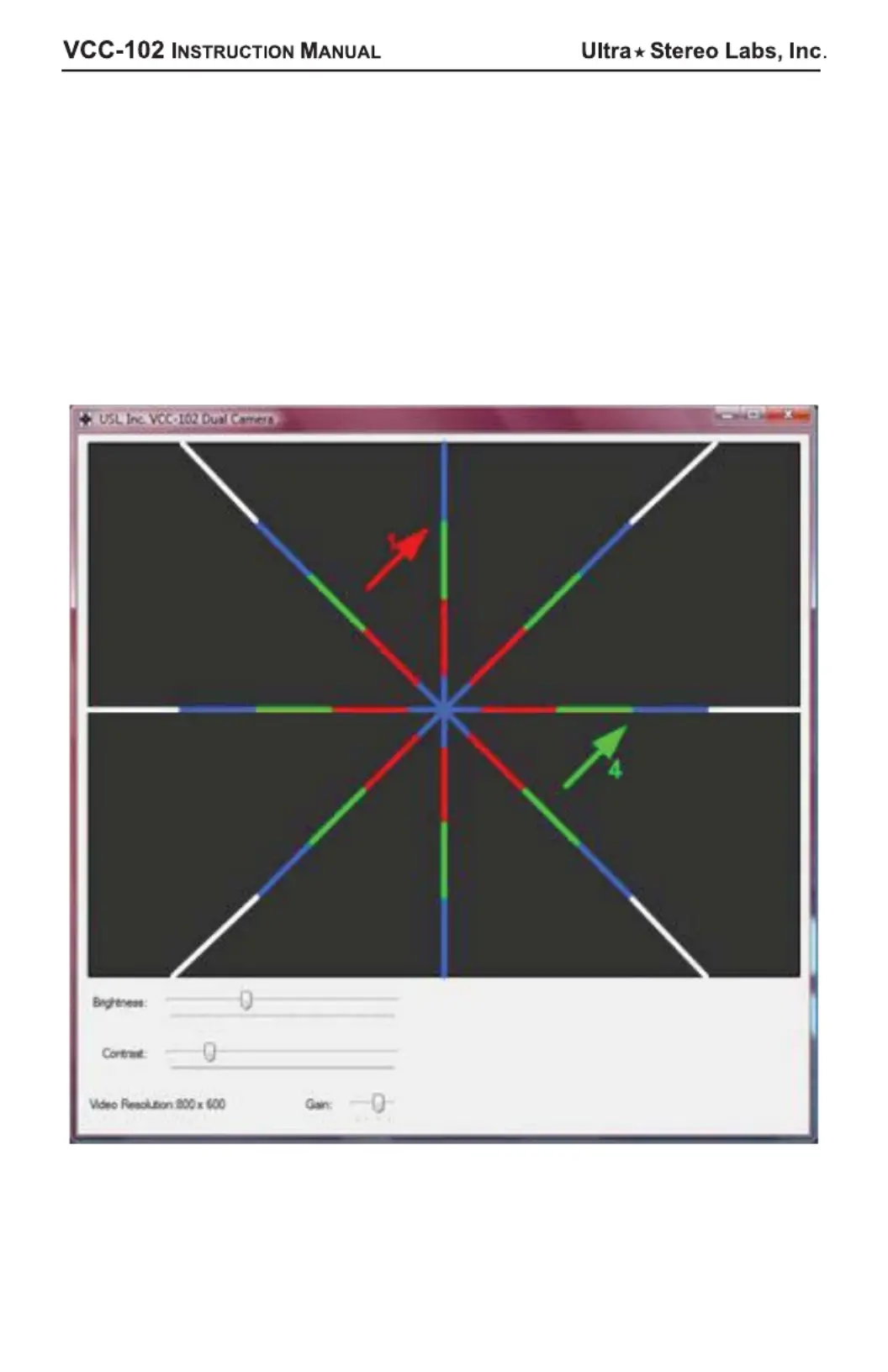

rates. The image brightness, contrast, and gain may be altered via three (3) slider
controls, at the bottom of the program window.
Video image focus is controlled by turning the threaded front adjustment ring to
bring convergence pattern images into focus between the ranges of 20 feet to 150
feet. A top mounted red laser enables the technician to quickly locate the pattern
on the movie screen.
