Side 1/2
bebob factory GmbH Höglwörtherstr. 350 Tel.: +49 89 – D-81379 München – 27818282
www.bebob.de
February 2020
Features
8 - . Channel Vmicro simultaneous Li Ion Charger
- Built in AC Adapter. 16,5V 10.0A DC XLR4 Output
Charging
Never leave batteries unattended while charging
All Channel Status indicator show green when the charger is turned on with no battery
connected
The Channel Status indicator turns red when a battery is placed on the corresponding channel
and the charging process has begun
The Channel Status indicator turns back green when the battery is fully charged
The Channel Status indicator turns Yellow when a battery is placed on the corresponding
channel and the charging process fails for damage or safety reason.
Cooling fan will be activated during the charging process
AC Adapter
You can use your VS8micro simultaneously as a42 Channel Charger and an AC Adapter.
Use the rear Channels for charging
The charging functions of the 4 front channels always has priority over the AC function
1 V The AC adapter delivers up to 10,0A under 6,5

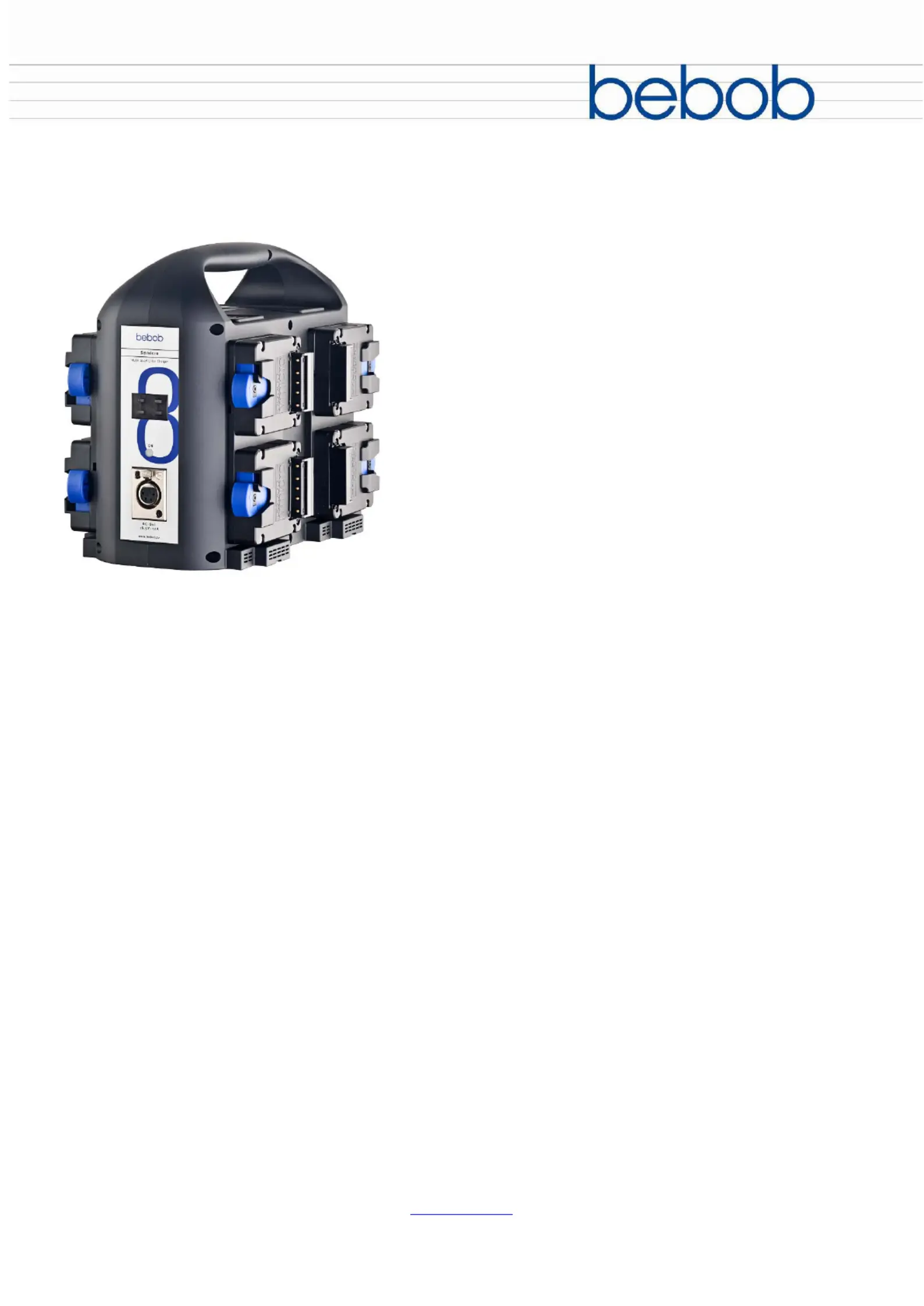

VS8MICRO P -ortable simultaneous li ion
battery charger
User Manual
WE STRONGLY RECOMMEND THAT YOU
READ THIS INSTRUCTION BEFORE USING
YOUR BEBOB VS8MICRO CHARGER !
PLEASE KEEP THIS MANUAL FOR FUTURE
REFERENCE
bebob factory GmbH Höglwörtherstr. 350 Tel.: +49 89 27818282 – D-81379 München –
www.bebob.de
February 2020
Safety instructions
t Only for professional use! Keep Charger out of reach of children and personnel tha has
not been instructed in the use!
U . se only with recommended batteries
Keep the charger dry and do not immerse in water.
Do not cover the charger under use
A standard three pin AC plug must be used and earth pole must be connected to the earth line.-
Do not keep in contact with any part of the body while the charger is in working status.
Do not use or store the charger in unstable, dusty or damp environments.
Remove the battery from the charger after the charging process is complete.
Do not attempt to open or repair the charger. Contact your dealer for help if it becomes
defective.
Handle with care! Do not throw! Do not drop!
Warranty
The VS8micro is covered by a 2 years unconditional warranty on all parts.
For warranty issues or if you have any additional questions, please contact the appropriate
bebob distributor listed at www.bebob.de.
S pecifications
Model
VS8micro
Mount
V micro
Channel
8 simultaneous
Charging current
16,8V 1,25A (per Channel)
DC Output
16,5V 10.0A
DC Port
XLR4 1 minus 4 plus
AC In
90 264V/47 63Hz 200W- -
Weight
1,9 Kg
Dimensions (WXHXD)
145 x 225x 270mm
Batteries
bebob, idx, sony
Charging time
d epends on the battery capacity
Operating Temp. Range
- 10°C ~ + 35°C
