Electro-Voice MA-606 Bruksanvisning

Les nedenfor 📖 manual på norsk for Electro-Voice MA-606 (20 sider) i kategorien Ikke kategorisert. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Side 1/20

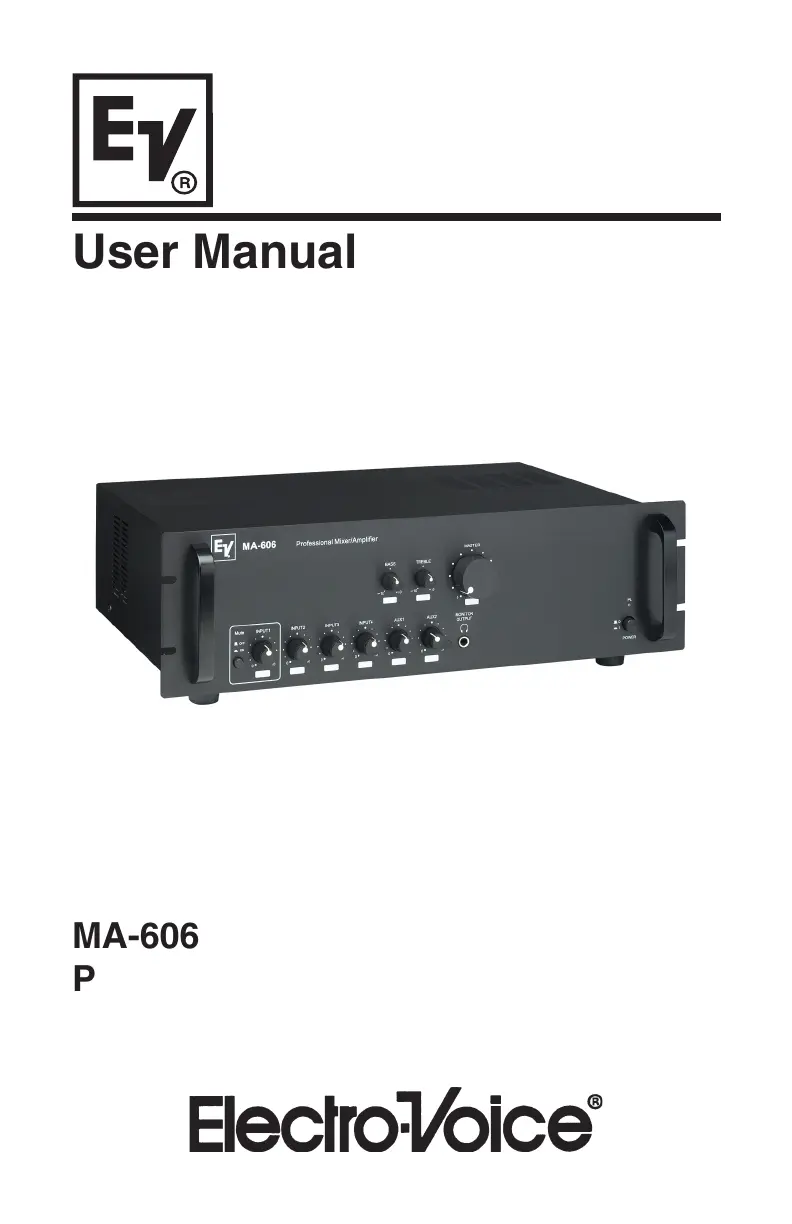

User Manual
MA-606
Professional Mixer/Amplifier
Electro-Voice®®®®®
Table of Contents
Typical Connections ............................................................................... 3
Features ................................................................................................. 2
Description ............................................................................................. 2
Installation .............................................................................................. 3
Grounding .................................................................................. 3
Ventilation .................................................................................. 3
Key Input Connections ............................................................... 3
Typical Connectons ................................................................... 4
Output Connections ................................................................... 6
High Impedance/Constant-Voltage Systems .............................. 7
Operation................................................................................................ 8
Front Panel Controls .................................................................. 8
Rear Panel Controls and Connections ....................................... 9
Appendix A: Limited Warranty .............................................................. 13
Exclusions and Limitations ....................................................... 13
Obtaining Warranty Service ..................................................... 13
Other Rights ............................................................................ 13
Appendix B: Safety Guidelines ............................................................. 14
AC Power Supply ..................................................................... 14
DC Power Supply .................................................................... 14
Safety Precautions................................................................... 14
Technical Specifications ....................................................................... 16
Electro-Voice®®®®®
Page 2
Features
Level controls for each input and a master volume control.
Individual bass and treble tone controls.
Automatic muting circuit with threshold adjustment.
600 ohm transformer-isolated line input for paging, with
automatic muting of all other inputs.
Low distortion.
Output protection circuit.
Auxiliary line level inputs with internal mixing for stereo source.
Balanced line level output.
Insertion point between preamp and amplifier.
Phantom power on all microphone inputs enables microphones
to be used without separate power supplies.
Description
The MA series products provide background music and allow paging in
environments such as churches, small businesses, and professional
offices.
The inputs include 4 combination balanced or unbalanced Microphone/
AUX level connections, 2 stereo AUX summing inputs, telephone paging
and Power Amp In connections. Inputs to Mic 1 can be set to
automatically mute the other Mic and AUX level input channels.
Input sources to Aux 1 and 2 may include: tape players, compact-disc
players, AM/FM tuners, mixer-preamplifiers or wireless microphones.
The telephone paging input accepts the signal from a standard 600 ohm
paging line.
The Power Amp In jack, along with the Preamp Out jack, is provided to
insert an equalizer or other signal processing device before the power
amplifier.
The amplifier includes protection circuitry to prevent damage from either
open or shorted speaker lines.
An adjustable automatic muting circuit mutes all other inputs when the
paging input is activated.
