XGS-3 Groundstack
The X-Line Compact Groundstack features a rigging attachment position to allow a column of an X-Line Compact
Loudspeaker Array to be Groundstacked and tilted to obtain the desired sound coverage.
X-Line Compact
XGS-3 Groundstack
User Instructions

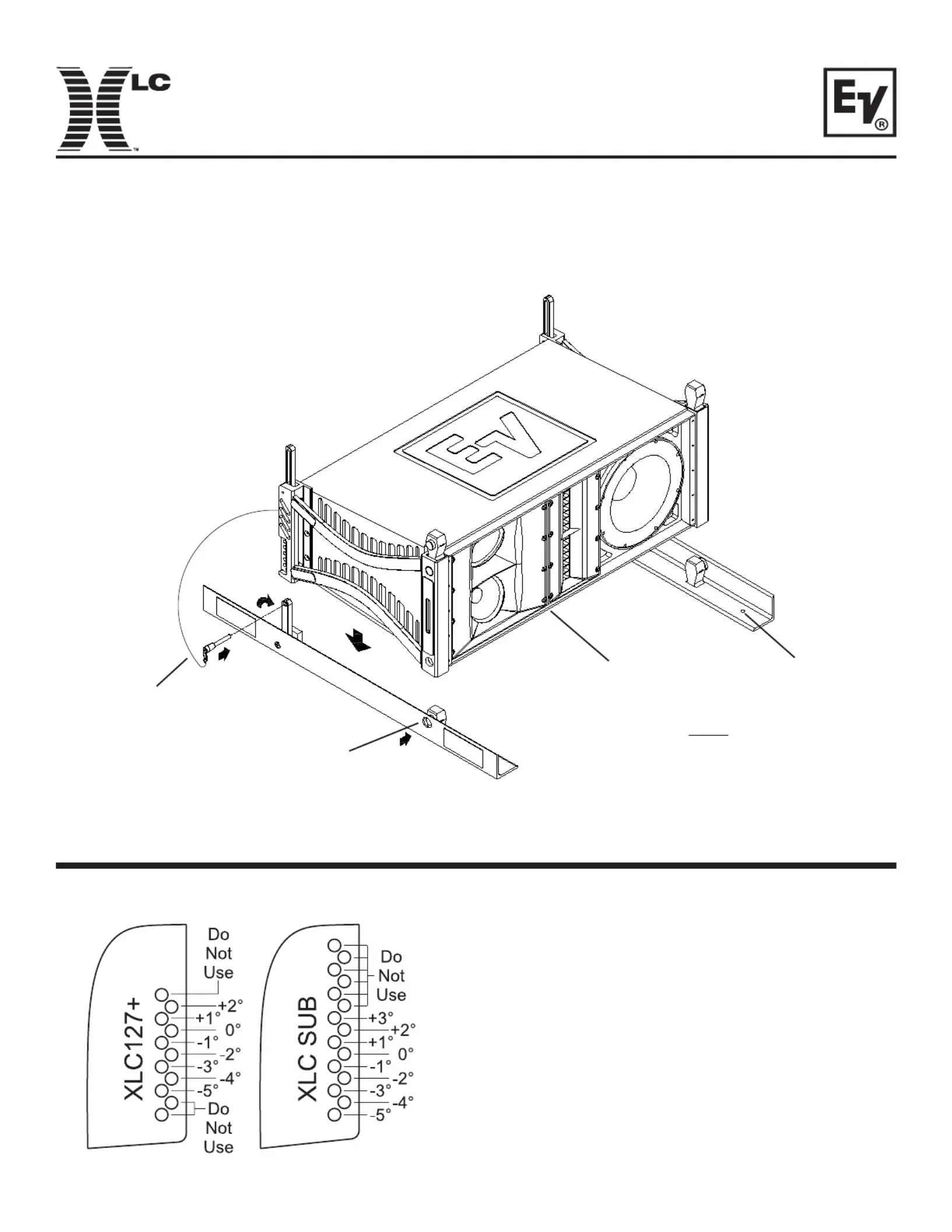

Figure 1: Attaching Loudspeakers to Groundstack Rails
Note: Assembly process is
mirrored for the other side.
To select the correct pin position on the bottom enclo-
sure of your XLC Ground Stack, find your enclosure
type and specific angle, and pin the Ground Stack
swing arm to that position. For safety reasons, pin
only to numerically indicated positions. Left sides are
shown, right are mirrored views.
Figure 2: Angle Instruction for Bottom Enclosure
Pin Position
Quick-Release Pin
(From Enclosure)
Button Bar
(Push in through access hole)
XLC Loudspeaker Lag Bolt Holes
(2 per side)
U.S.A. and Canada only. For customer orders,
contact the Customer Service department at
800/392-3497 Fax: 800/955-6831
Europe, Africa and Middle East only. For customer orders,
contact the Customer Service department at
49 9421-706 0 Fax: 49 9421-706 265
For warranty information, contact the Service Repair department at:
616/695-6831 or 800/685-2606
For technical assistance, contact Technical Support at:
866/78AUDIO
Specifications subject to change without notice.
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 11/2005
Part Number 38110-464 Rev A

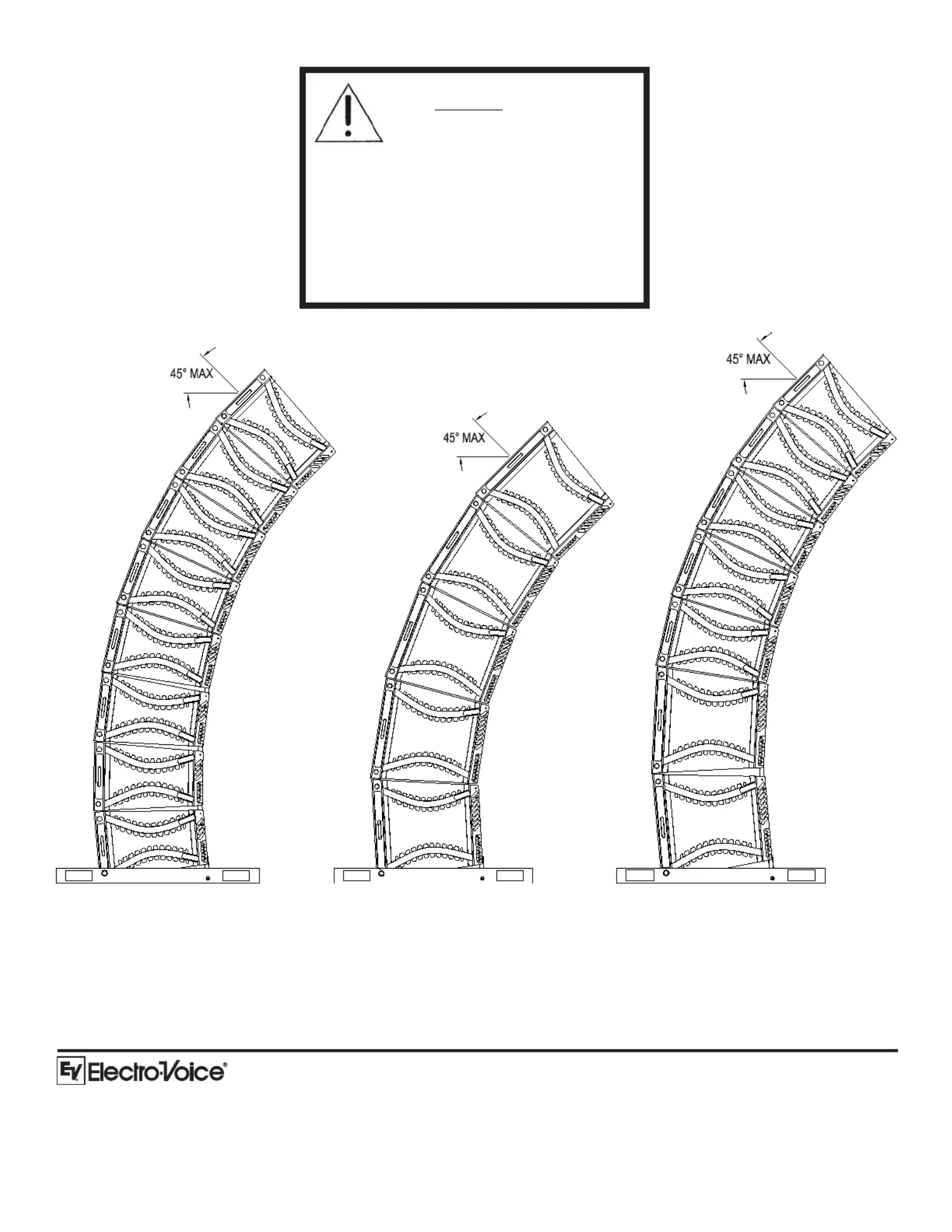

Figure 3: Full-Range Array -
XLC127+ Array (8 Max)
Figure 4: Subwoofer Array -
XLC118 or XLC215 Array (5 Max)
Figure 5: Combination Array -
XLC127+ (5 Max) and
XLC118/XLC215 (2 Max)
These configurations are showing
the maximum number of enclo-
sures and top enclosure angles
allowed. They also show the
proper balance for safety and
acoustical performance. All lesser configura-
tions are allowed at customers discretion.
For all configurations approaching these
maximums, and all configurations used
outdoors, use the lag bolt holes in the base of
the L-extrusions to secure the groundstack
base to the mating surface.
