Side 1/11
ZEPHYRONLINE.COM

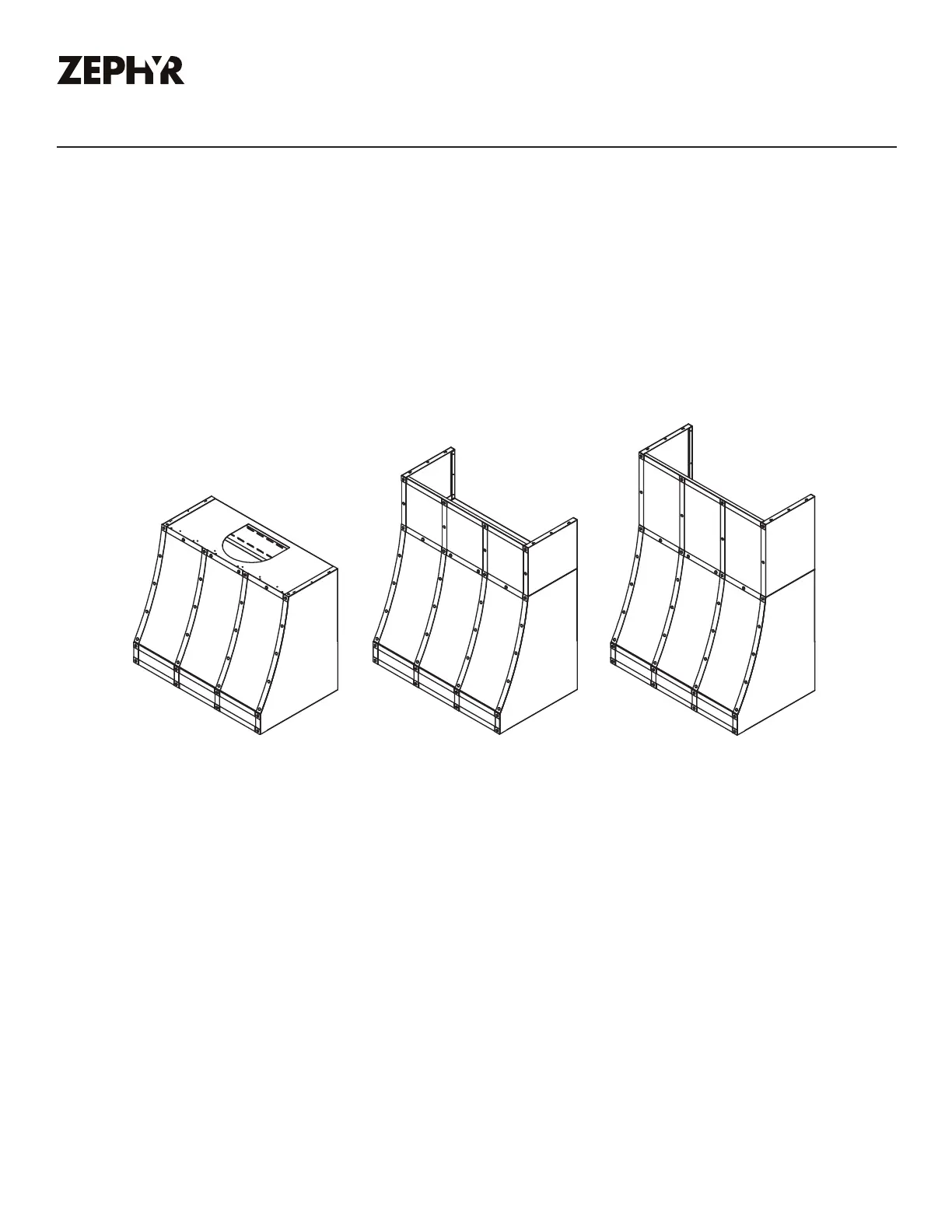

Forte Custom Hood
Installation Instructions
DEC24.0101
CHFT36A
CHFT48A
CHFT36A + DC13612A
CHFT48A + DC14812A
CHFT36A + DC13618A
CHFT48A + DC14818A
(with optional duct cover) (with optional duct cover)
2
Product Specications
List of Materials
AK9134xS AK9234xS
AK9246xS
AK9434xS
AK9446xS
AK9534xS
AK9546xS
Hood Insert Compatibility
Below are the hood inserts compatible with the Forte custom hood. The inserts are sold separately.
Hood Installation Screws Hood Banding Hardware Hood Rivet Bolts, SS
(8) M4 x 8
(8) #10 x 2”
(2) #10 x 3”
(4) 3/16 x 1/2
(8) 5 x 14 x 1
(28) M6
(8) M6
(20) 11*10.3 bushings
(8) OD18 x ID8 x 3
(20) M6
3
Dimensions
Product Specications
11- ”3/4 11-3/4
6- ”1/2
10- ”13/16
(36”) 35- 15/16
(48”) 47-7/8
3- ”11/16
5”
22- ”1/16
30”
14”
(36”) 30-5/16 5/16”, (48”) 41-
3- ”15/1623-7/16
13/16”
2- ”11/16
(without duct covers) 0”
(DC13612A & DC14812A) 12”
(DC13618A & DC14818A) 18
TOP
SIDEFRONT
BACK
BOTTOM
C/L
(36”) 33-9/16, (48”) 45- 1/2
11”
1- 22- ” 1/161/8
4”
Net Weight: CHFT36ASX (48lb), CHFT48ASX (55lb)
NOTE: The duct cover accessories are sold separately.
